Composite Gas Cylinder: Alloy steel and carbon firber composite materials

Cylinder Capacity: 3L, 5L, 6L, 6.8L, 9L

Compressed Air Capacity: 900L, 1500L, 1800L, 2040L, 2700L

Safety Feature: Rubber caps on the shoulder and foot

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Self-Contained Air-Breathing Apparatus with high quality and reasonable price.

The Self-contained breathing apparatus (SCBA) is a kind of Air breathing apparatus, which is mainly suitable for fire fighting, chemical industry, ships, oil, smelting, factories and mines, and laboratories. To enable firefighters or rescue personnel to carry out fire fighting, rescue safely in harsh a environments filled with smoke, poison gas, steam or lack of oxygen.

If you want to know more about Self-Contained Air-Breathing Apparatus price please feel free to contact us, we will reply you within 24 hours

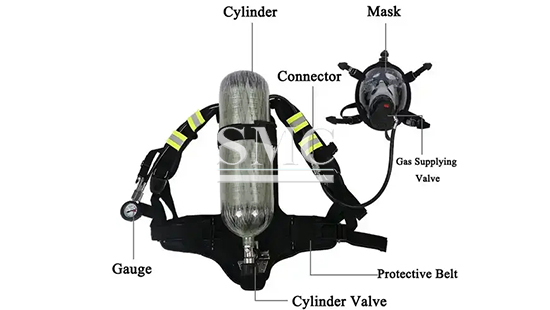

The structures of air respirator:
1.Contanied full face mask
2.Gas supplying valve
3.Pressure reducing valve
4.Carbon fiber cylinder & cylinder valve
5.Back plate & harness
6.Alarm whistle and gauge
7.Packing box: Yellow, orange, black

1.High-Quality Construction
2.Easy Operation
3.Adjustable and Comfortable Design
4.Enhanced Safety Features
5.Compliance with International Standards

Mainly suitable for fire fighting, chemical industry, ships, oil, smelting, factories and mines, and laboratories.

Cylinder Model
MODEL	CYLINDER	MATERIALS	AIR STORGARE	USING TIME	WEIGHT	WORKING PRESSURE
RHZK3.0	3	Carbon Fiber	900L	30min	10	30Mpa
RHZK5.0	5	Carbon Fiber	1500L	50min	14	30Mpa
RHZK6.0	6	Steel	1800L	60min	14	30Mpa
RHZK6.8	6.8	Carbon Fiber	2040L	65min	11	30Mpa
RHZK9.0	9	Carbon Fiber	2700L	90min	12	30Mpa

Air-Breathing Apparatus Data
Full face mask	Material		Silicone
	Visual field		≥90%
	Service life		15 years
	Advantage		Permanent double anti-fogging, Scratch and abrasion resistant lens
	Oil mist Transmittance		≤0.005%
	Exhalation resistance		≤ 0.76bar
	Inhalation resistance		≤ 0.25bar (30L/min)

Gas Cylinder	Material		Carbon fiber
	Volume		3L, 5l, 6, 6.8L, 9L
	Working pressure		300bar
	Alarm pressure		(55 ±5)bar
	Operating temperature		-30°C-60°C
	Service time		45-90 mins

Back Plate	Use		Comfortable, Flexible and light-weight/Achieve 180 degrees bending
	Maximum air supply rate		More than 500L/min
	Digital screen HUD of SCBA, Can display cylinder pressure, remaining time, ambient temperature, digital clock and compass

Reducer	Balanced pressure reducing design
	Adopt medium pressure alarm

Typically packaged securely to prevent damage during transportation and storage. Common packaging materials include wooden box, pallet or custom packaging to accommodate the specific dimensions and quantity ordered.
