Aluminum foil model: 3003H18,5052H18

Panel Size: 1m x 1m,1220mm x 2440mm，1500 x 3000mm,customized.

Total Thickness: 6mm-200mm

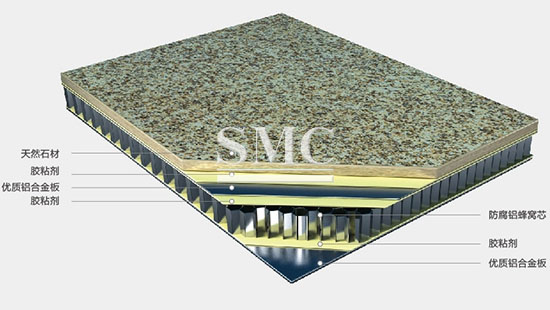

Structure: Face Material+Adhesive Layer + Honeycomb Core + Backing Materia

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is manufacturer and supplier of Stone Honeycomb Panel.

Stone honeycomb panels are innovative architectural materials that combine the natural beauty of stone with the structural efficiency of honeycomb technology. These panels are crafted by adhering thin layers of stone to lightweight honeycomb cores, resulting in a product that is both strong and lightweight. One of the key advantages of stone honeycomb panels is their sustainability. They use less stone compared to traditional stone cladding, reducing the environmental impact of mining and quarrying. Additionally, the honeycomb core provides excellent insulation properties, which can contribute to energy savings in buildings. The panels are available in a wide range of stone types, from granite and marble to slate and limestone, offering architects and designers a diverse palette of textures and colors to choose from. They are also easy to install, with a system that can be mounted directly onto building facades, reducing installation time and costs. Stone honeycomb panels are not only aesthetically pleasing but also offer durability and low maintenance. They are resistant to weathering and do not require frequent replacement, making them a cost-effective choice for both new constructions and renovation projects. In summary, stone honeycomb panels represent a fusion of modern engineering and traditional materials, providing a sustainable, stylish, and practical solution for contemporary architectural design.

If you have demand of Stone Honeycomb panel,please feel free to contact with us, we will reply you within 24 hours.

Recommended thickness for different scenarios：
For external curtain wall, the thickness of stone is 4-5mm,the thickness of aluminum honeycomb panel is >25mm;
Internal wall, stone thickness is 3-4mm, honeycomb panel thickness is 15mm;
Internal ceiling, the thickness of stone is 3-4mm,the thickness of honeycomb panel is 15-20mm;
Floor panels, stone thickness is 5-8mm, honeycomb panel thickness is 10-15mm.
Edge treatments:include sealing, beveling, or adding a protective trim.

High strength
High resistance to contamination
Sound and moisture insulation
Energy-efficient indoor installation reduces electricity and heat consumption
Easy to install

It can be used for Ceiling, curtain wall, interior wall, floor, building, vehicle, ship and other decorative decoration.

Face Material:

1)Thickness: 3mm - 8mm

2)Stone Material:granite, marble, slate and limestone

Honeycomb core

1) Hexagonal cells, Alloy series 3003

2) Diameter in inches: Ø1/4”, Ø3/8”, Ø1/2”, Ø3/4”

3) Foil thickness: from 50 to 80 microns

Backing Material

1)Thickness:Customized

2)Material Aluminum, plastic or any other substrate

Packaging of Stone Honeycomb Panel.

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization
