Alloy Grades: 1460, 2090, 2094, 2095, 2096, 2195, 8090, 8192, X2A66, etc.

Temper: T651; T851; T8E41; T8771, etc.

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading manufacturer and supplier of aluminum Lithium alloy in China, who is engaged in design and produce aluminum plate, bar, extrusion and so on.

Al-Li alloy is new aluminum alloy with lithium as major element. Li is the most light metal element in periodic table of the elements whose density is only 0.534g/cm3. Adding 1% (weight ratio) lithium into aluminum, the weight of alloy can be 3% lower and the elasticity modulus will be 6% higher. The manufactured structure becomes lighter but stronger. With research and development, new Al-Li alloys become popular, such as 1460 and Weldalite series with high strength and weldability, 2097 and 2197 alloy with good tenacity, C2155 alloy with good anti-crack property and XT series with special vacuum treatment, etc.

If you want to know more about our Aluminum-Lithium Alloy Plate, or other related products, please feel free to contact us, we will reply you within 24 hours.

1. Heat Treatment
2. Finishing
3. Pressing Working
4. Welding
5. Superplastic Forming
6. Cutting

1) Low Density
2) High Specific Strength
3) High Specific Stiffness
4) Good Anti-corrosion
5) Good Low-temperature Performance
6) Excellent Superplastic Forming Performance
7) Lower price than composite material.

1) Airframe
2) Wing Rib
3) Vertical Stabilizer
4) Fuselage Skin
5) Fairing
6) Cabin Door
7) Fuel Tank, etc.

The Properties of some Al-Li Alloys
Grade	Temper	Thickness	Tensile Strength Mpa	Yield Strength Mpa	Elongation %
1460		20mm	570	490	8
2195	T6	7.8mm vertical	612	581	9.8
		7.8mm horizontal	592	551	12.1
		7.8mm 45°	522	489	12.6
2197	T8	38mm (L)	440	420	4
		38mm (LT)	440	420	8
		38mm (ST)	420	380	2
AF/C489	T8	hot rolled thick plate vertical	550	500	3
		hot rolled thick plate horizontal	538	468	1.5
		hot rolled thick plate 45°	545	474	3
AF/C458	T8	12.7mm vertical	530	496	10.7
		12.7mm horizontal	544	475	8.9
		12.7mm 45°	503	419	12.8

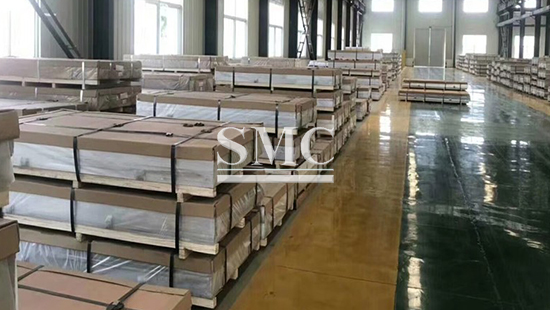

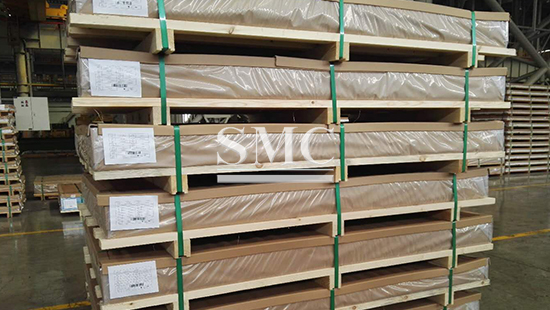

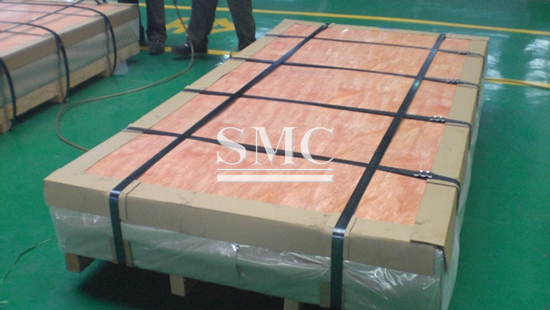

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization
