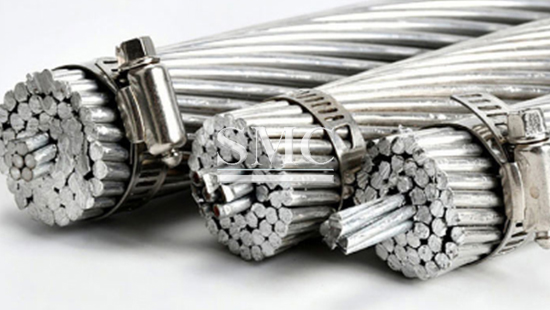

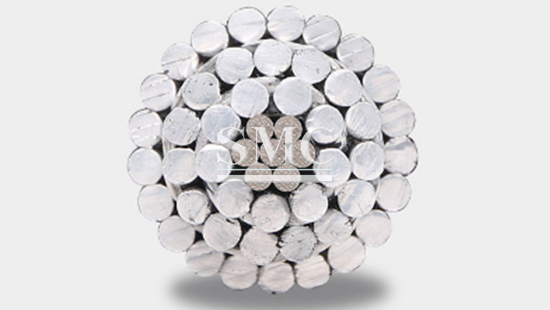

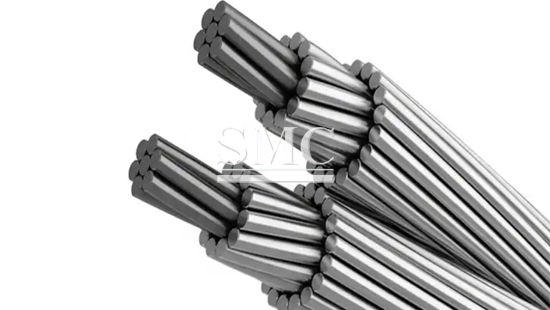

Structure: concentrically twisted aluminum alloy wire

Number of strands: 7 19 37 61 91 127

Standard: ASTM B399、IEC1089

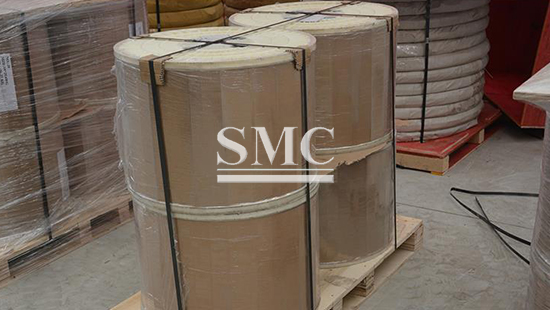

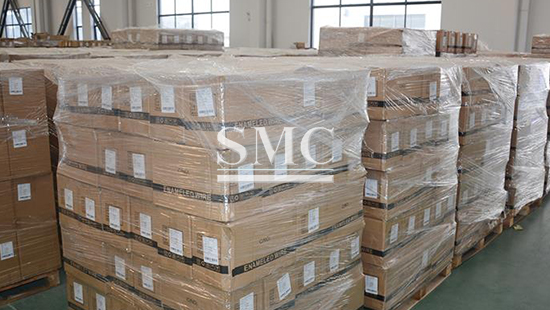

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is manufacturer and supplier of aluminum alloy stranded wire.

Aluminum alloy stranded wire, JLH, G1A aluminum alloy stranded wire has many advantages over ordinary steel core stranded wire (ACSR) with large load capacity, large single weight ratio, small loss, simple installation and maintenance, and many advantages in manufacturing, design, construction, operation, etc., has been applied in many countries in the world. Application scenario: ultra-high voltage transmission lines such as railways for long distances across special geographical environments such as ice and snow storm areas. Electricity. Transportation and other industries.

If you have demand of aluminum alloy stranded wire, please feel free to contact with us, we will reply you within 24hours.

Diameter: 1.70mm-4.57mm
Operating temperature: The maximum allowable continuous operating temperature of the conductor cannot exceed 90℃

Light weight
Large elongation, with excellent overload capacity and fatigue characteristics
Good high temperature characteristics
Corrosion resistance

Railway
Electricity
Transportation
Other industries

Mechanical properties of aluminium alloy stranded wire

Structural composition	Final elastic modulus Mpa	Coefficient of linear expansion/℃
7	62000	23X10^-6
19	60000	23X10^-6
37	57000	23X10^-6
61	54000	23X10^-6
91	52000	23X10^-6
127	50500	23X10^-6

Aluminum Alloy Stranded Wire A2 conductor ASTM B399

Specification Code	Model	Number of strands/Diameter
	AWG or kcmil	No./mm
Alton	48.69(4)	7/2.12
Ames	77.47(2)	7/2.67
Azusa	123.3(1/0)	7/3.37
Anaheim	155.4(2/0)	7/3.78
Amherst	195.7(3/0)	7/4.25
Alliance	246.9(4/0)	7/4.77
Butte	312.8	19/3.526
Canton	394.5	19/3.66
Cairo	465.4	19/3.98
Darien	559.5	19/4.36
Elgin	652.4	19/4.71
Flint	740.8	37/3.59
Greeley	927.2	37/4.02

Aluminum Alloy Stranded Wire (A2 conductor) IEC1089

Model	Number of strands/Diameter	Model	Number of strands/Diameter
Sq.mm	No./mm	Sq.mm	No./mm
16	7/1.83	450	37/4.22
25	7/2.29	500	37/4.45
40	7/2.89	560	61/3.67
63	7/3.36	630	61/3.89
400	19/2.78	710	61/4.13
125	19/3.10	800	61/4.38
160	19/3.51	900	91/3.81
200	19/3.93	1000	91/4.01
250	19/4.39	1120	91/4.25
315	37/3.53	1250	91/4.49
400	37/3.98
