Standard: EN 12496, NACE SP0387

Material: Aluminium alloy

Product Detail | Technical Information | Packaging

Product Detail

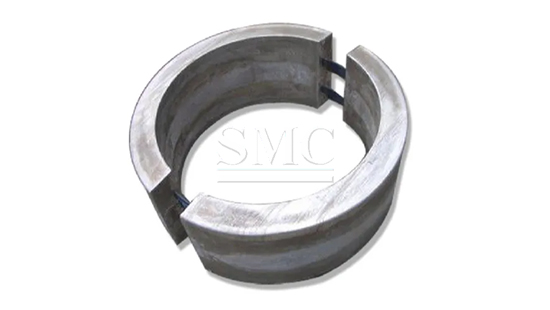

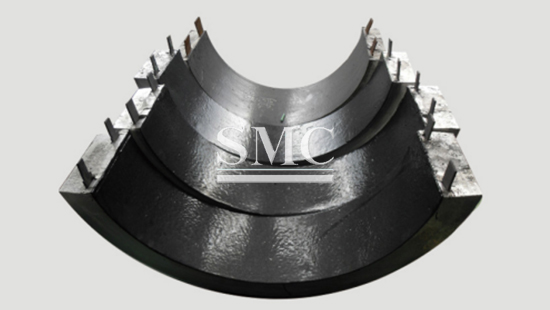

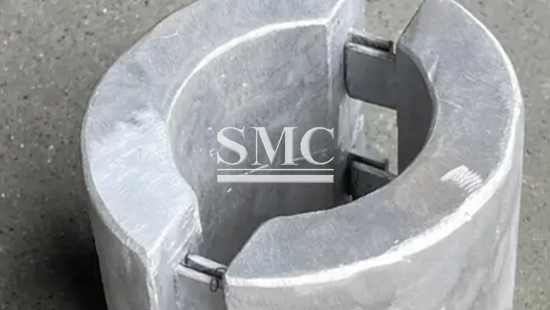

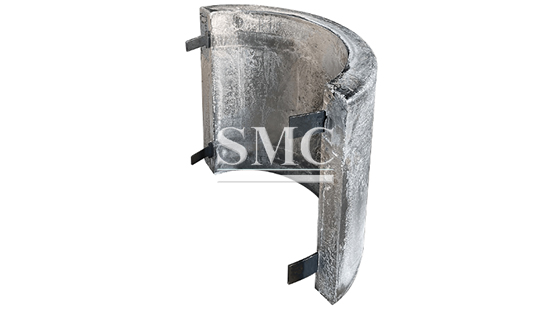

Shanghai Metal Corporation is a professional manufacturer and supplier of Aluminum Anode in Bracelet Form with high quality and reasonable price.

Aluminum alloy sacrificial anodes are mostly used for the cathodic protection of metal structures in seawater environments or the bottom plate of crude oil storage tanks, with extremely high electrochemical performance and large power generation per unit weight of anode materials, about 3 times that of zinc anodes and 2 times that of magnesium anodes. In seawater and other media containing chloride ions, it has good performance and strong self-regulating ability of sending current. Alloy grades can be selected according to the standard or customized according to the special use environment. The customized products will be designed according to the temperature, salinity, depth and other conditions of the seawater optimal performance indicators, and through a series of PQT tests to verify long-term performance.

If you want to know more about Aluminum Anode in Bracelet Form price please feel free to contact us, we will reply you within 24 hours

Standard: GB/T 4948, DNV-RP-B401, EN 12496, NACE SP0387
Material: Aluminium alloy
Net Weight: 53-305kg
Iron foot size: E: 40/50mm, F:5/6/8mm.

1. Structure: Ring design, easy to install, size can be customized.
2. Reliability: stable potential, high efficiency, easy to install, automatic potential adjustment.
3. Adaptability: Adapt to submarine corrosive environment, high technical requirements.
4. Maintenance-free: long-term protection, difficult to detect consumption.
5. Environmental protection: No pollution, spontaneous electrochemical protection.
6. Application: Widely used in oil and gas pipeline anticorrosion.

1. Offshore platform.
2. Submarine pipeline.
3. Ships, machinery and equipment.
4. Wharf steel piles, offshore platforms, cables.

Technical Information of Aluminum Anode in Bracelet Form:

Standard	Grade	Open Circuit Potential (V, SCE)	Closed Circuit Potential (V, SCE)	Actual Capacity (A.h/kg)	Current Efficiency (%)
GB/T	4948-A12, A13, A14	1.10 ~ -1.18	1.05 ~ 1.12	≥2400	≥85
GB/T	4948-A21	1.10 ~ -1.18	1.05 ~ 1.12	≥2600	≥90
DNV-RP	B401	/	≥1.10	≥2500	/

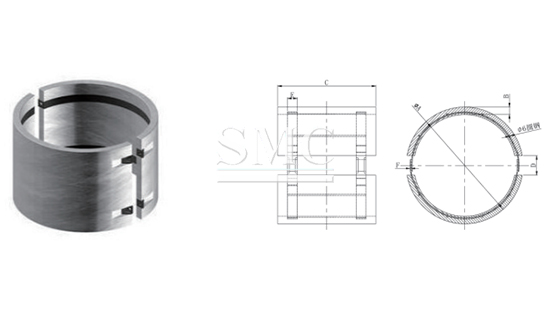

Model	Specification/mm				Iron Foot Size/mm		Net Weight/kg	Gross Weight/kg
	A	B	C	D	E	F	Net Weight/kg	Gross Weight/kg
YX-AL-S-1	365.6	38.1	500	100	50	5	53.9	59.9
YX-AL-S-2	365.6	58.5	520	100	50	5	88.8	94.8
YX-AL-S-3	365.6	58.1	500	100	50	5	88	94.1
YX-AL-S-4	365.6	38.5	500	100	50	5	54.6	60.6
YX-AL-S-5	467	38.5	500	100	50	5	71.3	78.6
YX-AL-S-6	467	58.5	500	100	50	5	114.2	121.5
YX-AL-S-7	518	38.5	500	100	50	5	79.7	87.6
YX-AL-S-8	518	68.5	500	100	50	5	151.9	159.8
YX-AL-S-9	722.4	78.5	650	150	50	6	305.3	317.3
YX-AL-S-10	722.4	58.5	650	150	50	6	221.1	233.1
YX-AL-S-11	830	110	300	150	40	6	232	242.6
YX-AL-S-12	830	120	300	150	40	6	258	268.6
YX-AL-S-13	1035	80	350	150	40	8	236	253.3

Standard	Grade	Zn	In	Cd	Sn	Mg	Ti	Si	Fe	Cu	Al
DNV-RP	B401	2.50~5.75	0.015~0.040	≤0.002				≤0.12	≤0.09	≤0.003	Balance
GB/T-4948	A12	2.2~5.2	0.020~0.045	--	0.018~0.035	--	--	≤0.10	≤0.15	≤0.01	Balance
GB/T-4948	A13	5.5~7.0	0.025~0.035	--	--	--	--	0.1	≤0.15	≤0.01	Balance
GB/T-4948	A14	2.5~4.0	0.020~0.050	--	0.025~0.075	0.50~1.00	--	≤0.10	≤0.15	≤0.01	Balance
GB/T-4948	A21	4.0~7.0	0.020~0.050	--	--	0.50~1.50	0.01~0.08	≤0.10	≤0.15	≤0.01	Balance

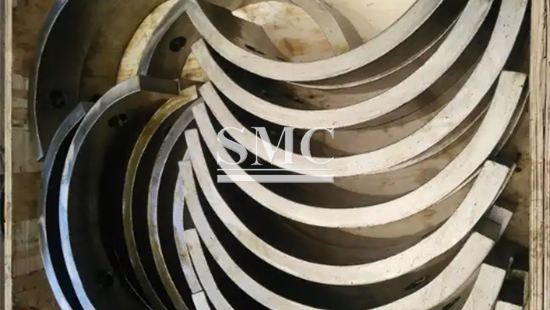

Packaging of Aluminum Anode in Bracelet Form:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
