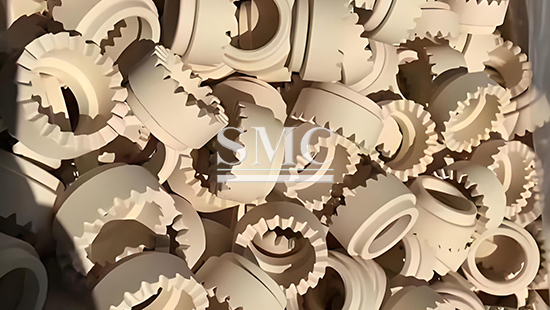

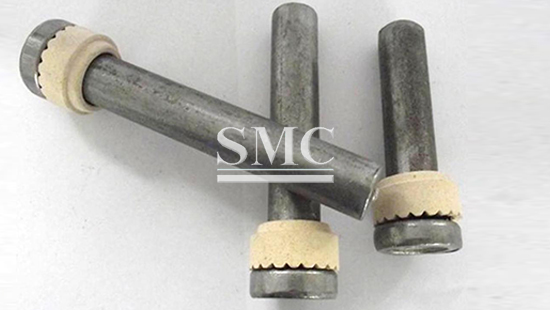

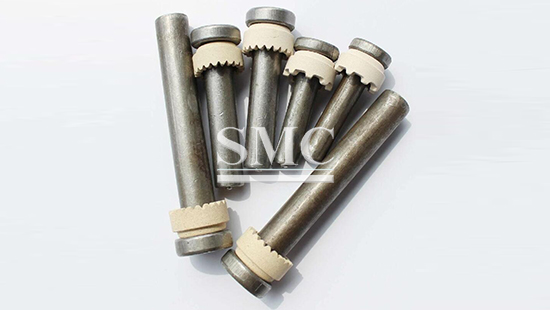

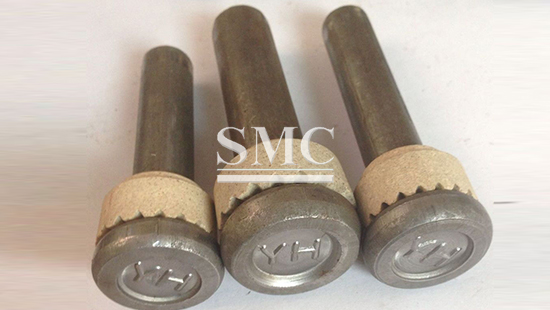

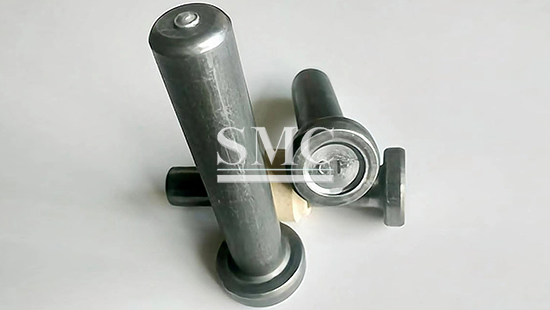

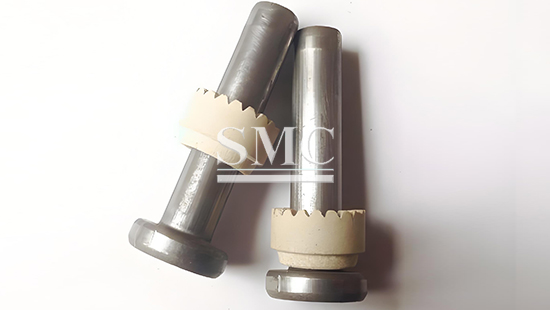

Shear Connector with Ceramic Ferrule
Grade: SAE1010, SAE 1020, SWRCH15A
Diameter: Φ10, Φ13, Φ16, Φ19, Φ22, Φ25
Surface Treatment: Phosphating
Shanghai Metal Corporation is a professional manufacturer and supplier of Shear Connector with Ceramic Ferrule with high quality and reasonable price.
Shear Connector Studs are designed to tie the concrete slab to the steel beams and to resist shear loadings between the concrete slab and steel beam in composite construction. This enables us to load up to 1000 kg/m2 instead of the usual load which is much less. The procedure saves time and therefore money as well due to its simplicity.
If you want to know more about Shear Connector with Ceramic Ferrule price please feel free to contact us, we will reply you within 24 hours
Technical Information of Shear Connector with Ceramic Ferrule:
|
Mechanical Properties |
|||
|
Hot sell Standard |
Tensile strength |
Yield strength |
Elongation |
|
EN ISO 13918 SD1 |
≥450 Mpa |
≥350 Mpa |
≥15% |
|
AWS D1.1 TYPE B |
≥450 Mpa |
≥350 Mpa |
≥15% |
|
BS 5400 |
≥495 Mpa |
≥385 Mpa |
≥18% |
|
AS/NZS 1554.2 |
≥410 Mpa |
≥345 Mpa |
≥12% |
|
JIS B1198 |
≥400 Mpa |
≥235 Mpa |
≥20% |
|
GB/T 10433 |
≥420 Mpa |
≥340 Mpa |
≥14% |
|
Shear Stud Connector Type SD (ISO13918:2008) Dimensions (mm) |
||||||
|
d1-0.4 |
10 |
13 |
16 |
19 |
22 |
25 |
|
d5±0.3 |
19 |
25 |
32 |
32 |
35 |
41 |
|
d3±0.3 |
13 |
17 |
21 |
23 |
29 |
31 |
|
h3±0.5 |
7 |
8 |
8 |
10 |
10 |
12 |
|
h4 |
2.5 |
3 |
4.5 |
6 |
6 |
7 |
|
l1±1.5 |
40~160 |
40~160 |
40~200 |
40~250 |
60~250 |
60~250 |
|
Burn off |
3 |
3 |
4 |
5 |
5 |
6 |
|
Ferrule |
UF10 |
UF13 |
UF16 |
UF19 |
UF22 |
UF25 |

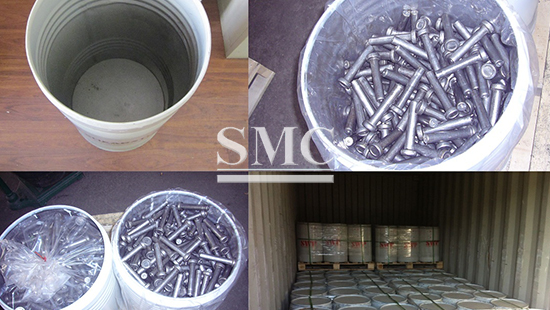

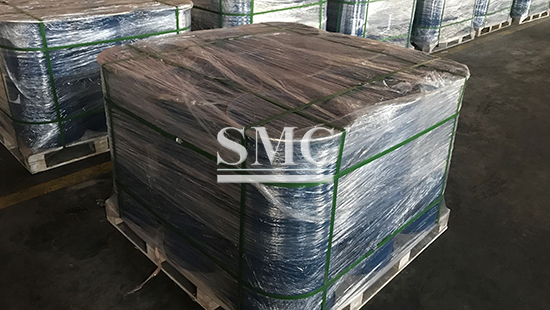

Packaging of Shear Connector with Ceramic Ferrule:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
