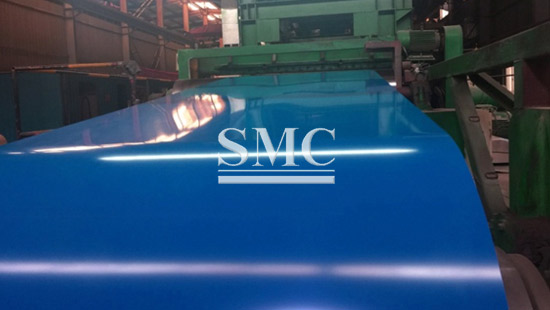

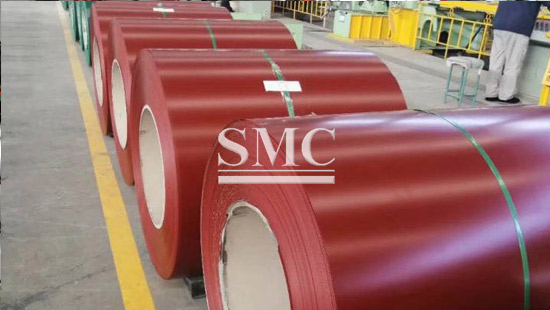

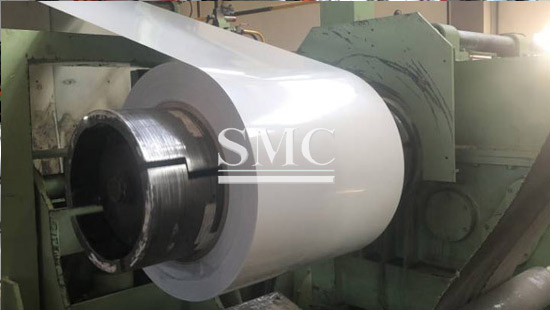

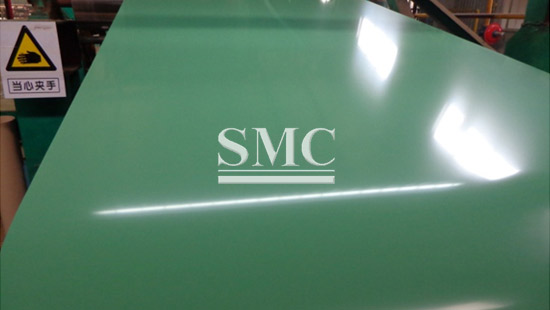

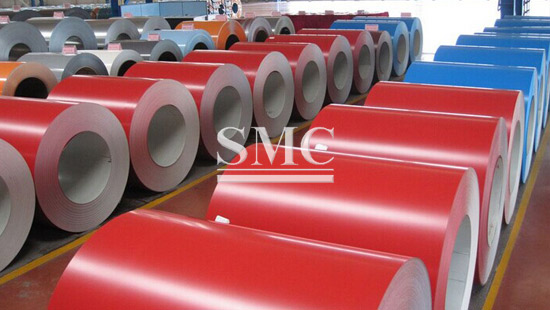

Prepainted Aluzinc Steel Coil, Prepainted Galvalume Steel Coil (PPGL)
Standard: ASTM/JIS/GBT/EN etc
Thickness: 0.15mm ~ 2.0mm
Width: 600mm ~ 1500mm
Shanghai Metal Corporation is a professional manufacturer of Prepainted Aluzinc Steel Coil, PCM and VCM steel sheet.
With over 30 year’s production experience, SMC has accumulated the advantage and techniques with high quality and reasonable price. If you want to know more about Prepainted Aluzinc Steel Coil, please feel free to contact us, we will reply you within 24 hours.
-
1. Standard: ASTM/JIS/GBT/EN etc
2. Steel Grade: SGCC, DX51D, S250GD, S550GD etc
3. Thickness: 0.15mm ~ 2.0mm
4. Width: 600mm ~ 1500mm
5. Top paint/back paint: 5+15μm/7-9μm or 5+20μm/10-12μm or as per client’s needs
6. Zinc coating: AZ30 ~ AZ150
7. Color: Any color as per client’s needs
8. Coil ID: 508mm/610mm
9. Coil weight: as per client’s needs
10. Pack: vertical or horizontal package
-
-
-
Prepainted steel sheet is coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that of aluzinc steel sheets.
The base metals for prepainted steel sheet consist of cold rolled, hot-dip galvanized, electro-galvanized and hot-dip zinc-alu-mag base metal. The finish coats of prepainted steel sheets can be classified into groups as follows: polyester, silicon modified, polyesters, polyvinylidene fluoride, high-durability polyester etc.
-
1. Construction and building: roofing; ventilating duct; handrail; partition panel; etc
2. Electric appliance: refrigerator; washing machine; microwave; DVD;etc
3. Transportation: oil tank; road sign; etc
4. Agriculture:barn; etc
5. Others
-
To learn more about us, visit the case study.
If you want to know more about our Prepainted Aluzinc Steel Coil (PPGL) products or price please feel free to contact us,we will reply you within 24 hours
Process Flow Diagram of PPGL:
Pay off reel → double cut shear → welder-notcher → entry accumulator → pre cleaning section → furnace → hot bridle → zinc pot → air knife → after cooler → water quench → dryer → skin pass mill → dryer → tension leveler → dryer → chemical coater → chemical oven → cooler → exit accumulator → oiler → exit shear → tension reel.
1. Classifications & Sympol
|
Classifications |
Items |
Symbol |
|
Paint type |
Polyester |
PE |
|
Silicon modified polyester |
SMP |
|
|
High-durability polyester |
HDP |
|
|
Polyvinylidene fluoride |
PVDF |
|
|
Paint surface texture |
Regular prepainted |
TC |
|
Embossed sheet |
YA |
|
|
Printed sheet |
YI |
|
|
Paint structure |
One-coating-and one-baking |
2/1 |
|
Double-coating-and-double-baking |
2/2 |
2. Paint property:
|
Top paint |
Paint thickness/ μm |
Pencil hardness |
180° bend |
Impact(J) |
Salt pray resistance |
|
PE |
≥20 |
≥F |
≤4T |
≥9 |
≥1000hours |
|
SMP |
≥20 |
≥F |
≤4T |
≥9 |
≥1000hours |
|
HDP |
≥20 |
≥HB |
≤4T |
≥9 |
≥1500hours |
|
PVDF |
≥20 |
≥HB |
≤4T |
≥9 |
≥2000hours |
3.Steel Grade and Application:
|
Base metal of Prepainted steel |
Application |
||||
|
Hot-dip Zinc |
Hot-dip Zinc-Fe alloy |
Hot-dip Al-Zinc alloy |
Hot-dip Z-Al alloy |
Eletro-galvanized |
|
|
TDC51D+Z |
TDC51D+ZF |
TDC51D+AZ |
TDC51D+ZA |
TDC01+ZE |
CQ |
|
TDC52D+Z |
TDC52D+ZF |
TDC52D+AZ |
TDC52D+ZA |
TDC03+ZE |
DQ |
|
TDC53D+Z |
TDC53D+ZF |
TDC53D+AZ |
TDC53D+ZA |
TDC04+ZE |
DDQ |
|
TDC54D+Z |
TDC54D+ZF |
TDC54D+AZ |
TDC54D+ZA |
/ |
EDDQ |
|
TS250GD+Z |
TS250GD+ZF |
TS250GD+AZ |
TS250GD+ZA |
/ |
Structure |
|
TS280GD+Z |
TS280GD+ZF |
TS280GD+AZ |
TS280GD+ZA |
/ |
Structure |
|
/ |
/ |
TS300GD+AZ |
/ |
/ |
Structure |
|
TS320GD+Z |
TS320GD+ZF |
TS320GD+AZ |
TS320GD+ZA |
/ |
Structure |
|
TS350GD+Z |
TS350GD+ZF |
TS350GD+AZ |
TS350GD+ZA |
/ |
Structure |
|
TS550GD+Z |
TS550GD+ZF |
TS550GD+AZ |
TS550GD+ZA |
/ |
Structure |
4. Mechanical property:
|
Steel Grade |
Y.S/MPA |
T.S/MPA |
EL./ ≥% |
|
TDC51D+Z/ZM/AZ |
240 ~ 380 |
270 ~ 500 |
22 |
|
TDC52D+Z/ZM/AZ |
140 ~ 300 |
270 ~ 420 |
26 |
|
TDC53D+Z/ZM/AZ |
140 ~ 260 |
270 ~ 380 |
30 |
|
TDC54D+Z/ZM/AZ |
120 ~ 220 |
260 ~ 350 |
36 |

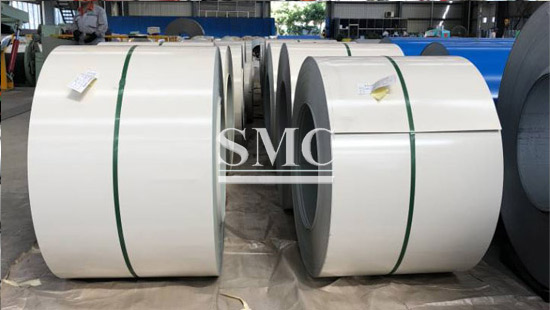

Packaging Information for Prepainted Aluzinc Steel Coil:
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
Application of Prepainted Aluzinc Steel Coil:
1. Contruction and building: roofing; ventilating duct; handrail; partition panel; etc.
2. Electric appliance: refrigerator; washing machine; microwave; DVD;etc.
3.Transportation:oil tank; road sign; etc.
4.Agriculture:barn; etc.
5.Others:vending machine; game machine; etc.
