Standard: JIS3321/ASTM A792M

Thickness: 0.15mm-1.2mm, all available

Width: 600mm-1250mm, all available

Product Detail | Technical Information | Packaging | More

Product Detail

1) Capacity: about 10,000 ton per month for aluzinc steel

2) Standard: JIS3321/ASTM A792M

3) Thickness: 0.15mm-1.2mm, all available

4) Width: 600mm-1250mm, all available

5) Length: according to the customer's request

6) Coil ID: 508/610mm

7) Hardness:Soft

8) Coating: AZ30- AZ180

9) Color series: RAL color

10) Min trial order: 25 ton each thickness, 1x20' per delivery

11) Application: it is ideal for a wide range of applications, especially when superior atmospheric resistance is required, such as pre-engineered buildings, architectural panels, roofing, siding, cladding, and many other building components.

1) Pre-engineered buildings

2) Architectural panels

3) Roofing

Steel Grade and Application:

Base metal of Prepainted steel					Application
Hot-dip Zinc	Hot-dip Zinc-Fe alloy	Hot-dip Al-Zinc alloy	Hot-dip Z-Al alloy	Eletro-galvanized	Application
TDC51D+Z	TDC51D+ZF	TDC51D+AZ	TDC51D+ZA	TDC01+ZE	CQ
TDC52D+Z	TDC52D+ZF	TDC52D+AZ	TDC52D+ZA	TDC03+ZE	DQ
TDC53D+Z	TDC53D+ZF	TDC53D+AZ	TDC53D+ZA	TDC04+ZE	DDQ
TDC54D+Z	TDC54D+ZF	TDC54D+AZ	TDC54D+ZA	/	EDDQ
TS250GD+Z	TS250GD+ZF	TS250GD+AZ	TS250GD+ZA	/	Structure
TS280GD+Z	TS280GD+ZF	TS280GD+AZ	TS280GD+ZA	/	Structure
/	/	TS300GD+AZ	/	/	Structure
TS320GD+Z	TS320GD+ZF	TS320GD+AZ	TS320GD+ZA	/	Structure
TS350GD+Z	TS350GD+ZF	TS350GD+AZ	TS350GD+ZA	/	Structure
TS550GD+Z	TS550GD+ZF	TS550GD+AZ	TS550GD+ZA	/	Structure

Mechanical property:

Steel Grade	Y.S/MPA	T.S/MPA	EL./ ≥%
TDC51D+Z/ZM/AZ	240 ~ 380	270 ~ 500	22
TDC52D+Z/ZM/AZ	140 ~ 300	270 ~ 420	26
TDC53D+Z/ZM/AZ	140 ~ 260	270 ~ 380	30
TDC54D+Z/ZM/AZ	120 ~ 220	260 ~ 350	36

Production Facility of Prepainted Galvalume Steel Coil (AZ150+PVDF, Anti-finger):
Pay-off Section
The operating principles and functions are similar to the galvanizing process, except that it uses a joiner to fasten the steel sheets together.
Clean, Pre-treatment and Chemical Coating

The GI coil is cleaned at the degreaser tank, where oil and dust are removed by chemical means. The white rust formed on the surface can be removed at the brush assembly. The clean coil will then be coated with conditioner and chromate at the conditioner and chromate tank respectively, to provide better adhesion and corrosion resistance ability.
Prime and Finish Coating
A basic layer of paint, called primer, is applied on the chemical coater in order to strengthen the corrosion resistance and paint adhesion ability. The requested colours and specifications of paint will be applied at both the top and bottom of the primer coated coil to complete the painting work.
Prime and Finish Oven
The primer coating is further cured at the primer oven and cooled at the primer water quench to ensure the painted coil is completely cured. Similarly, the finish oven and finish water quench also serve to ensure that the paint applied is completely cured and cooled.

Structure Of Prepainted Galvalume Steel Coil (AZ150+PVDF, Anti-finger):

Packaging Information for Prepainted Galvalume Steel Coil (AZ150+PVDF, Anti-finger):

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

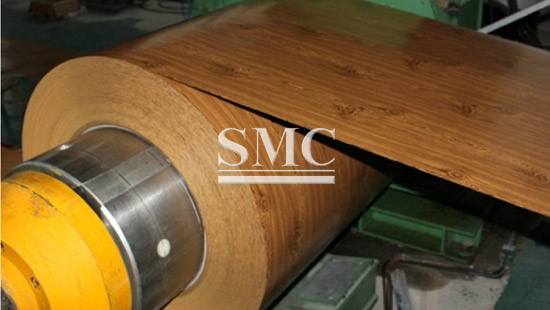

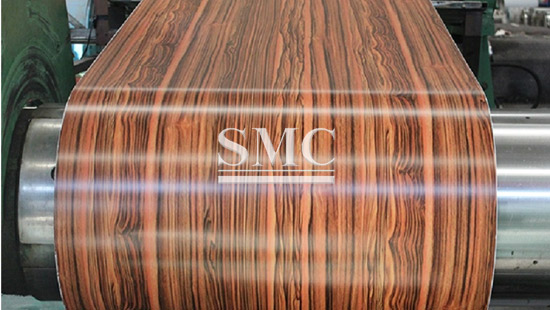

Production Line of Prepainted Galvalume Steel Coil (AZ150+PVDF, Anti-finger):

A typical Horizontal Color Coated Galvanized Steel Coil Line would comprise with the following steps:

Process Flow Diagram:

Pay off reel → double cut shear → welder-notcher → entry accumulator → pre cleaning section → furnace → hot bridle → zinc pot → air knife → after cooler → water quench → dryer → skin pass mill → dryer → tension leveler → dryer → chemical coater → chemical oven → cooler → exit accumulator → oiler → exit shear → tension reel.

Shanghai Metal Corporation is an international manufacturer and supplier for Prepainted Galvanized Steel Coil. We have two prepainted lines based on galvanized steel coil. Our monthly output for each line is approxiamtely 5,000 ton.

Case Study

Products & Service

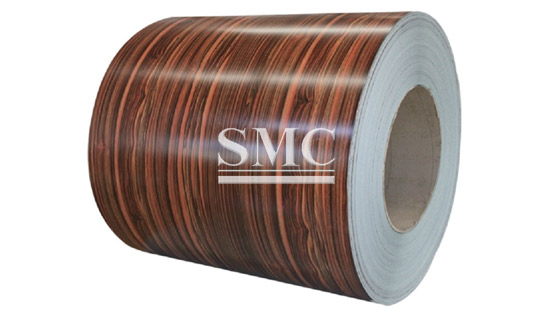

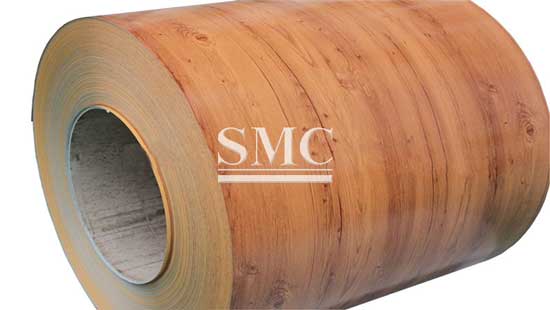

Wooden Pattern Prepainted Galvalume Steel Coil (PVDF, Anti-finger)
