CAS No.: 7727-43-7;13462-86-7

Formula: BasO4

EINECS: 231-784-4

Certification: CCIC, CIQ, ISO

Purity: 90% - 99%

Type: Barium Sulfate

Main application field: Petrochemical industry

Product Detail | Technical Information | Packaging

Product Detail

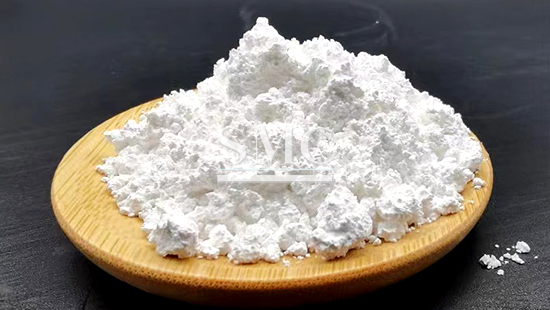

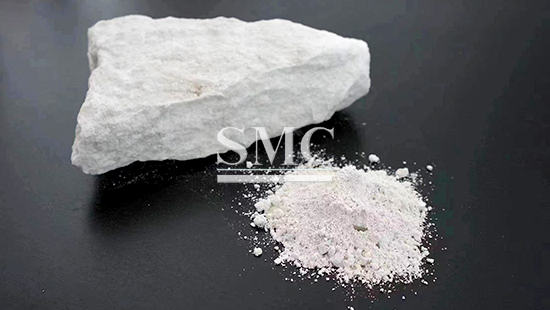

Shanghai Metal Corporation is a leading barite powder manufacturer and supplier.

In the drilling process of oil and gas, when encountering a situation where the underground pressure is relatively high and the circulating mud is difficult to balance with the underground oil and gas pressure, an appropriate amount of barite powder needs to be added to the drilling fluid to increase the mixed density of the circulating mud. This plays the roles of cooling the drill bit, taking away the cut debris, lubricating the drill pipe, sealing the borehole wall, controlling the oil and gas pressure, and preventing the oil well from blowing out. Generally, the barite powder for drilling mud requires a fineness of more than 325 mesh, a density greater than 4.2g/cm³, and a barium sulfate BaSO₄content of not less than 95%.

If you want to know more about our barite powder, please feel free to contact us, we will reply you within 24 hours.

Mohs hardness: 3 - 3.5

Specification: 200 - 1250 mesh

Whiteness: 80% - 93%

Main component: BaSO₄

Specific gravity: 4.0-4.5

Specific gravity: 4.0-4.5

1. Resistant to acids and alkalis.

2. Insoluble in water and organic solvents

3. An inert product which is lightfast and weatherresistant

4. Colourneutral, due to its low refractive index

5. Extremely narrow particlesize range for high gloss specifications

6. Extremely good wettability due to low specific surface area

7. Low abrasion during processing, due to low Mohs hardness

1. Petroleum drilling: The circulating mud weighting agent used in rotary drilling of oil and gas wells cools the drill bit and carries away the cut debris. Lubricating the drill pipe, sealing the hole wall, controlling oil and gas pressure, and preventing oil well self spraying.

2. Chemical production of various barium compounds such as barium carbonate, barium chloride, barium sulfate, barium hydroxide, barium oxide, etc.

3. Glass deoxidizer, clarifying agent, and flux. Increase the optical stability, gloss, and strength of glass.

4. Paint fillers, brighteners, and weighting agents.

Technical Information of Barite Powder:

Item	Standard

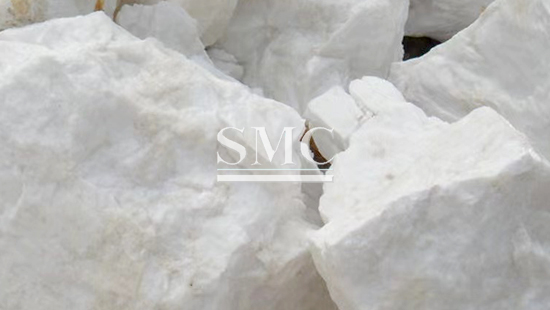

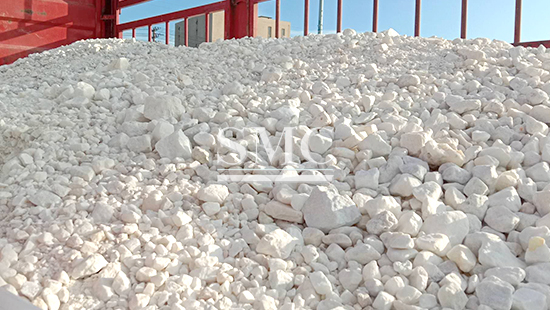

Size	lump 0-5MM 5-50MM/ 100mesh 200mesh 325mesh and so on as to clients' request
BaSo4 content	80%--98%
Water Soluble Salts	≤0.2%
Moisture	≤0.1%
Lgnition Loss	≤0.5%
Whiteness	80-95
PH value	8.0±1.0
Specific Gravity	4.0g/CM3 - 4.5g/cm3
Solubles material in	≤1% .

specification and quality demand							remarks
Oil drilling	Density ≥4.2g/cm3; fineness-200mesh≥97% -325 85%~90%;hydrotrope is 0.1%; the effect of clay; the viscosity						Standard of oil ministry issuing
Oil drilling	of adding 1% plaster is 0.125Pa·S;the content of BaSO4 ≥90%.						Standard of oil ministry issuing
Chemical industry	grade	BaSO4/%	SiO2/%	Fe2O3/%	AI2O3/%	water soluble salt /%
	I grade	95	<1.5	<0.5	<1	<0.3
	IIgrade	90	<2.5	<1.5	<2	<1.0
	IIIgrade	85	<2.5	<1.5	<2	<1.0

Application field	Main use	remarks:
oil drilling	The Circulation mud weighting agent of rotary boring of oil and gas well	Cooling the drill bit,take away the clast cutted, lubricate drill pipe, close wall of hole,control the pressure of oil and gas, avoid the spurt of oil well
Chemical industry	Used for producing BaCo3,BaCl2,BaSO4 Lithopone,Ba(OH)2,BaO and so on barium compound	barium compound is widely used in reagent,catalytic,the refining of sugar,prevention and cure,fireproof,all kinds of fireworks,the coagulant of synthal,plastic,insectifuge, the case-hardening of steel, phosphor powder,welding agent,Oil additive and so on.
glass	Deoxidizer,clarifying agent,fluxing agent	Increase the Optical temperate of glass and lustre and intensity.
Rubber,plastics,paint	Filler,optical brighteners,weighting compound
building	The aggregate of concrete,material of paving	1.The pipeline hidden in everglade of great pressure. 2.used in nuclear facilities replace of Pbboard. 3.atomic energy factory 4. the shield of X Radiation Laboratory.

Packaging of Barite powder:

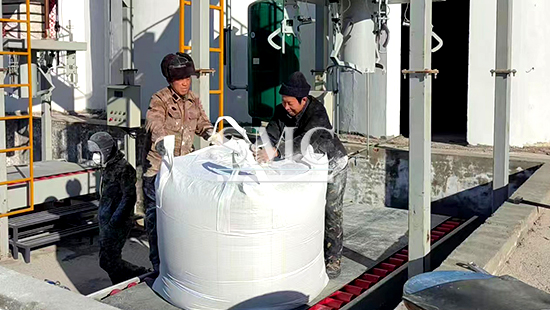

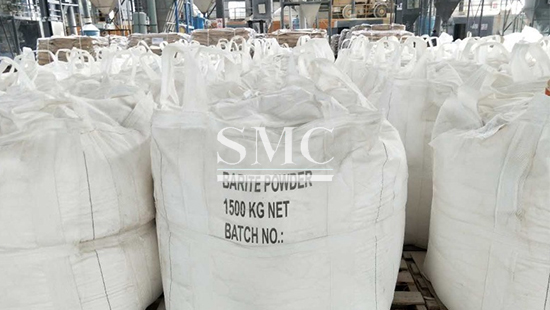

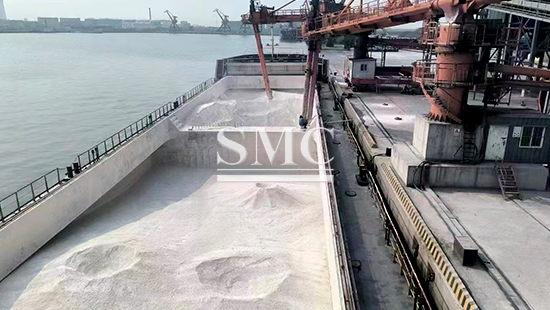

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests.The packaging is customized according to customer requirements. Generally, the packaging methods include jumbo bag packaging and small packaging of 25kg / 50kg and transported by container. Another method is transportation by bulk carrier.
