Boiler Plate - Pressure Vessels Plate
Thickness: 6-250mm
Width: 1000-4800mm
Length: 1000-12000mm or according to customers requirements
Boiler vessel plates are used for the manufacture of petroleum, chemical, gas separation, gas storage and transportation containers or other similar equipment, such as high-quality carbon structural steel and low alloy high strength of various towers, heat exchanger , storage tanks, tankers, etc. Structural steel plate, see GB6654-1996. The national boiler board is GBT 713-2008. Our Boiler Plate Steel is in stock and readily available, and can be cut to size and shape according to specific design requirements. All work is governed by an independently accredited and regularly audited quality system and is ISO 9001 certified.
Shanghai Metal Corporation is a professional manufacturer and supplier of Boiler plate with high quality and reasonable price. If you want to know more about Boiler plate products or Boiler plate price please feel free to contact us, we will reply you within 24 hours.
Details of Boiler Plate Steel:
Boiler Plate Steel has good strength, it can be used to make boilers and other components which need to withstand long-term high temperature stress. Boiler Plate Steel has good toughness and resistance to bending, curling and deformation processes. Even after prolonged storage periods it remains tough. Boiler Plate Steel also has good weldability and resistance to intergranular corrosion.
It can also be used for the manufacture of boiler drum, beams and wall panels.
Steel for Pressure Vessels contains: Low-temperature low-alloy steel for pressure vessels, normal temperature pressure steel, quenched and tempered high strength steel plates for pressure vessels.
Steel grade:
|
Standard |
GB |
ASTM /ASME |
JIS |
EN |
DIN |
BS |
ISO |
|
Grade |
Q245R |
(S)A515Gr60 |
SB410 |
P235GH |
HI |
161G430 |
P235 |
|
|
(S)A515Gr65 |
SB450 |
P265GH |
HII |
|
PH235 |
|
|
(S)A515Gr70 |
|
|
|
|
|||
|
(S)A516Gr60 |
|
|
|
|
|||
|
(S)A516Gr65 |
|
|
|
|
|||
|
(S)A516Gr70 |
|
|
|
|
|||
|
Q345R |
(S)A537CL1\CL2 |
SPV355 |
P295GH |
19Mn6 |
|
P355 |
|
|
SEV245 |
|||||||
|
|
(S)A299M |
|
P355GH |
|
|
PH355 |
|
|
Q370R |
|
|
|
|
|
|
|
|
14Cr1MoR |
(S)A387Gr.11 |
|
|
|
|
|
|
|
12Cr1MoVR |
|
|
|
|
|
||
|
1.25Cr0.5Mo |
|
|
|
|
|
||
|
15CrMoR |
(S)A387Gr.12 |
|
13CrMo4-5 |
13CrMo44 |
|
14CrMo45 |
|
|
12Cr2Mo1R |
(S)A387Gr.22 |
|
10CrMo9-10 |
10CrMo9-10 |
|
13CrMo910 |
|
|
2.25Cr1Mo |
|
|
|
|
T1 T2 |
||
|
13MnNiMoR |
|
|
|
BHW35 |
|
|
|
|
|
|
|
|
13MnNiMo54 |
|
|
|
|
16MnDR |
(S)A662MGr.C |
SLA360 |
|
ESTE355 |
|
P355NL |
|
|
|
(S)A738MGr.A |
|
|
|
|
|
|
|
15MnNiDR |
|
|
|
|
|
|
|
|
09MnNiDR |
|
|
|
|
|
|
|
|
15MnVNR |
(S)A737MGr.C |
SPV410 |
|
|
|
|
|
|
15MnVR |
|
SEV295 |
|
|
|
|
Chemical componet:
|
Grade |
Chemical composition ( % ) |
|||||||||||
|
C |
Si |
Mn |
Ni |
Cr |
Mo |
Nb |
V |
Ti |
Alt |
P |
S |
|
|
Q245R |
≤0.2 |
≤0.35 |
1.5-1.1 |
≤0.3 |
≤0.3 |
≤0.08 |
≤0.05 |
≤0.05 |
≤0.3 |
≥0.02 |
≤0.025 |
≤0.01 |
|
Q345R |
≤0.2 |
≤0.55 |
1.2-1.7 |
≤0.3 |
≤0.3 |
≤0.08 |
≤0.05 |
≤0.05 |
≤0.3 |
≥0.02 |
≤0.025 |
≤0.01 |
|
Q370R |
≤0.18 |
≤0.55 |
1.2-1.7 |
≤0.3 |
≤0.3 |
≤0.08 |
0.015-0.05 |
≤0.05 |
≤0.3 |
- |
≤0.025 |
≤0.01 |
|
09MnNiDR |
≤0.12 |
0.15-0.5 |
1.2-1.6 |
0.3-0.8 |
- |
- |
≤0.04 |
- |
|
≥0.02 |
≤0.02 |
≤0.008 |
|
15MnNiDR |
≤0.18 |
0.15-0.5 |
1.2-1.6 |
0.2-0.6 |
- |
- |
- |
≤0.05 |
|
≥0.02 |
≤0.02 |
≤0.008 |

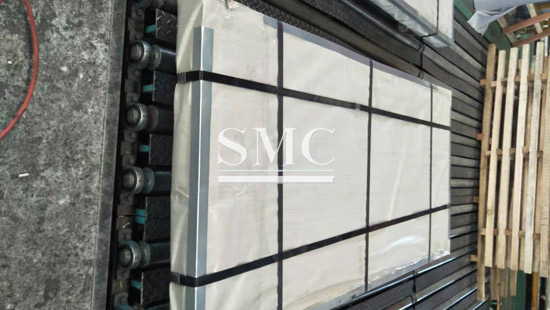

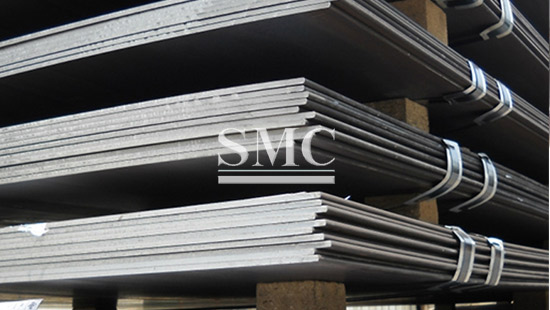

Packaging of Boiler Plate Steel:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
Main applications:
Automobiles, Bridges, Buildings
Machinery, Pressure vessel industries
Ship building, Engineering, Construction
Mechanical manufacturing, Pavement slab, ect.
