Shipbuilding Plate
Thickness: 3-80mm
Width: 1500-4800mm
Length: 6000-12000mm
Shipbuilding steel plate is hot rolled steel plate which is produced as per Bureau of Shipping Standard and is used for manufacturing hull structure. According to minimum yield strength, it is classified as general strength and high strength hull structural steel. As per CCS standard, general strength structural steel has four grades: CCSA, CCSB, CCSD, CCSE; high strength structural steel has three strength grades, each strength grade has four quality grades.
Shanghai Metal Corporation is a professional manufacturer and supplier of Shipbuilding Plate with high quality and reasonable price. If you want to know more about Shipbuilding Plate products or Shipbuilding Plate price please feel free to contact us, we will reply you within 24 hours.
-
Bureau of shipping: CCS、ABS、GL、LR、 DNV 、BV、RINA、NK、KR
Thickness: 3.0-80mm
Width: 1500-4800mm
Length: 6-12 meters
Pack:bundled by steel strip
-
-
Super high strength
NVA420
NVA460
NVA500
NVD420
NVD460
NVD500
NVE420
NVE460
NVE500
-
Low strength grade
A32
A36
A40
D32
D36
D40
E32
E36
E40
F32
F36
F40
High strength grade
AH32
AH36
AH40
DH32
DH36
DH40
EH32
EH36
EH40
-
Shanghai Metal Corporation integrates technologies, designs and manufacturing for shipbuilding steel plates, which based on customer needs and advanced innovative technology, this material is widely used in shipbuilding, SMC could provide wide range of products with best quality according to different requirements from customer.
-
-
-
-ship building
-construction
-light industry
-household appliance
-automobile
Chemical composition of Shipping Plate:
|
Steel Grade |
C. % |
Si.% |
Mn.% |
P.% |
S.% |
Y.S/MPA |
T.S/MPA |
EL.% |
|
A |
≤0.21 |
≤0.5 |
≥2.5C |
≤0.035 |
≤0.035 |
≥235 |
400-520 |
≥22 |
|
B |
≤0.21 |
≤0.35 |
0.8-1.2 |
≤0.035 |
≤0.035 |
≥235 |
400-520 |
≥22 |
|
D |
≤0.21 |
≤0.35 |
0.6-1.2 |
≤0.035 |
≤0.035 |
≥235 |
400-520 |
≥22 |
|
E |
≤0.18 |
≤0.35 |
0.7-1.2 |
≤0.035 |
≤0.035 |
≥235 |
400-520 |
≥22 |
Mechanical Properties of Shipping Plate:
|
Steel Grade |
C. % |
Si.% |
Mn.% |
P.% |
S.% |
Y.S/MPA |
T.S/MPA |
EL.% |
|
A32 |
≤0.18 |
≤0.5 |
0.9-1.6 |
≤0.035 |
≤0.035 |
≥315 |
440-570 |
≥22 |
|
D32 |
≤0.18 |
≤0.5 |
0.9-1.6 |
≤0.035 |
≤0.035 |
≥315 |
440-570 |
≥22 |
|
E32 |
≤0.18 |
≤0.5 |
0.9-1.6 |
≤0.035 |
≤0.035 |
≥315 |
440-570 |
≥22 |
|
F32 |
≤0.16 |
≤0.5 |
0.9-1.6 |
≤0.025 |
≤0.025 |
≥315 |
440-570 |
≥22 |
|
A36 |
≤0.18 |
≤0.5 |
0.9-1.6 |
≤0.035 |
≤0.035 |
≥355 |
490-630 |
≥21 |
|
D36 |
≤0.18 |
≤0.5 |
0.9-1.6 |
≤0.035 |
≤0.035 |
≥355 |
490-630 |
≥21 |
|
E36 |
≤0.18 |
≤0.5 |
0.9-1.6 |
≤0.035 |
≤0.035 |
≥355 |
490-630 |
≥21 |
|
F36 |
≤0.16 |
≤0.5 |
0.9-1.6 |
≤0.025 |
≤0.025 |
≥355 |
490-630 |
≥21 |
|
A40 |
≤0.18 |
≤0.5 |
0.9-1.6 |
≤0.035 |
≤0.035 |
≥390 |
510-660 |
≥20 |
|
D40 |
≤0.18 |
≤0.5 |
0.9-1.6 |
≤0.035 |
≤0.035 |
≥390 |
510-660 |
≥20 |
|
E40 |
≤0.18 |
≤0.5 |
0.9-1.6 |
≤0.025 |
≤0.025 |
≥390 |
510-660 |
≥20 |
|
F40 |
≤0.16 |
≤0.5 |
0.9-1.6 |
≤0.025 |
≤0.025 |
≥390 |
510-660 |
≥20 |

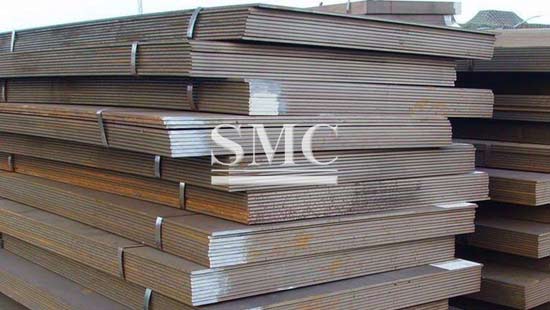

Packaging of Shipbuilding Plate:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
Applications of Shipping Plate:
It has been widely used in
-ship building
-construction
-light industry,
-household appliance
-automobile .
