Grade: 3003(+Zn), 3Z19, 4045, 4343

Thickness: 0.05mm – 0.2mm

Width: 12-1300mm max.

Product Detail | Technical Information | Packaging | More

Product Detail

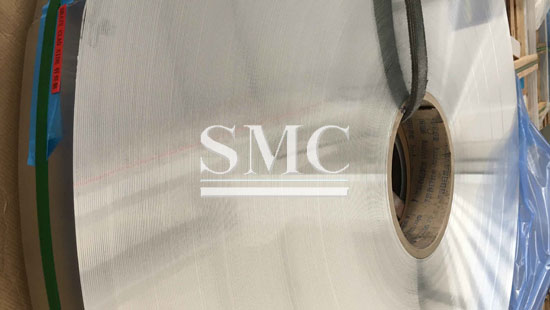

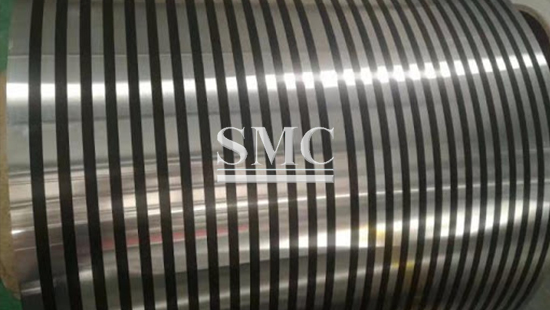

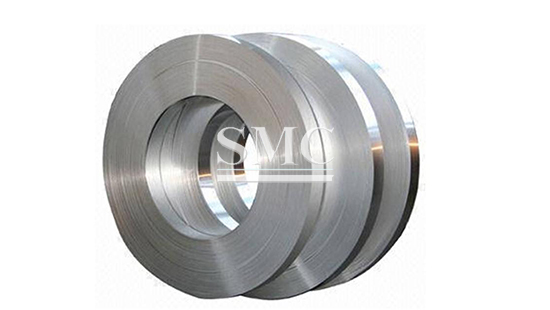

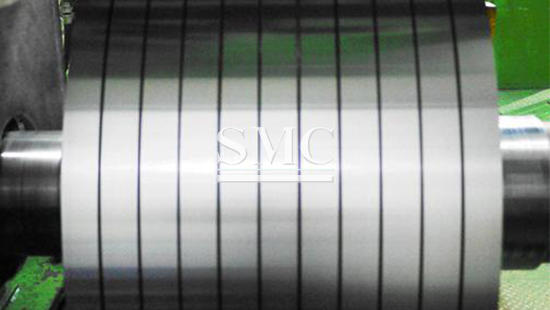

Shanghai Metal Corporation is a leading Brazing Aluminum Foil manufacturer and supplier for more than 10 years. Our brazing foil is produced from hot rolling cladding sheet, after several times of rolling, the combination of core layer with cladding layer becomes unseparatable, making the foil well functioning in both brazing and heat exchange.

Shanghai metal Corporation is a professional manufacturer and supplier of Brazing aluminum foil and Brazing aluminum strip with high quality and reasonable price. If you want to know more about Brazing Aluminum Foil product or Brazing Aluminum Foil price, please feel free to contact us, we will reply you within 24 hours. Also we can supply High frequency welded aluminum tube, hydrophilic aluminum foil, and Parallel flow micro channel aluminum flat tube.

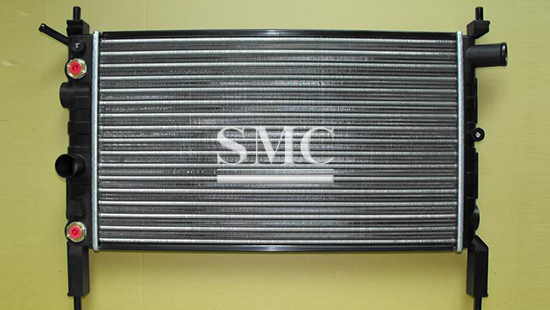

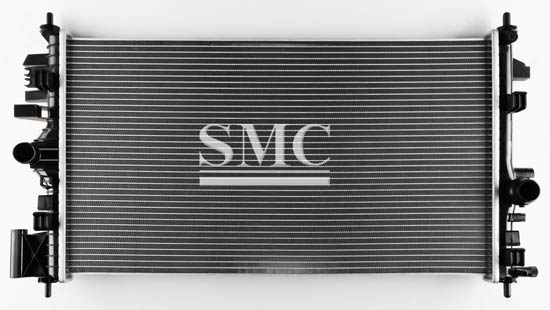

Outer fin of auto radiator/condenser

Inner fin of auto intercooler

1) Both cast structure

2) Large specification, diversified and small batch

3) High purity: low content of hydrogen, dross and alkali metal

4) High uniformity: small grain size difference between core and surface

5) Small composition segregation

6) With replacement of steel strip bundle by welding, stock for brazing cladding material avoids fault movement in the cladding layer during lifting, heating and opening.

Main product groups

Shanghai Metal Corporation offers a wide range of aluminum products for heat exchanger manufacturing, more than 1500 product specifications, including 100 more Aluminum alloy combinations. Our Leading Clad-rolling technology ensures material with high quality. The products can be divided into four main groups:

CLAD TUBE

Tube products for both welded and folded tube designs supporting the continuing trend for down gauging and increasing demands on corrosion resistance, braze ability and strength.

CLAD FIN

Clad fin developed for excellent braze ability to withstand core dissolution and high-temperature resistance, and to enable down gauging for lighter heat exchangers.

UNCLAD FIN

The most basic heat exchanger material.

Unclad fin comprises only one alloy without clad layers and is used for applications such as radiators, heaters, charge air coolers and evaporators.

CLAD PLATE

Consists of a core alloy clad with braze clad on one or two sides.

The rolled product is stamped or shaped by the customer depending on the application and used in most kinds of heat exchanger applications, either for coolant plates or manifolds.

Packaging of Aluminum Cladding Material

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Product Name	Core Layer Alloy	Blazing Layer Alloy	Water-contact Side Alloy	Temper	Application	Thickness(mm)
	3003	/	/	H14,H16	Non Compound Fin	0.05-0.2
SM803	3003＋1.0%Zn	/	/
SM804	3003＋1.5%Zn	/	/
SM805	3003	4343（Double ）	/		Compound Fin
SM806	3003＋1.5%Zn	4343（Double）	/
SM819	3003＋1.0%Zn	4343（Double）	/	O,H14,H18,H24
SM820	3Z19	4343（Double）	/
SM821	3003	4045（Double）	/
