Grade: C10200, C12200, C2680, C27200

Outside diameter: 0.5-6.1 mm

Inside diameter: 0.3-4.45 mm

Straight length: 50-6000mm

Thickness: ≤ 0.5 mm

Coil weight: 5 kg /20 kg /30 kg /50 kg

Product Detail | Technical Information | Packaging

Product Detail

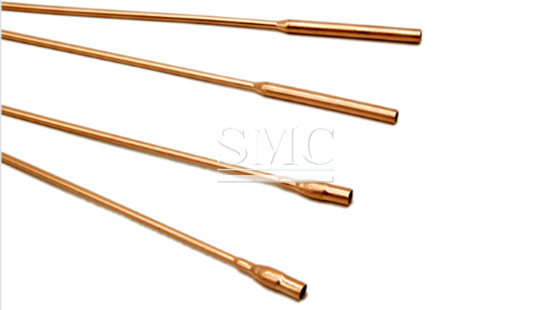

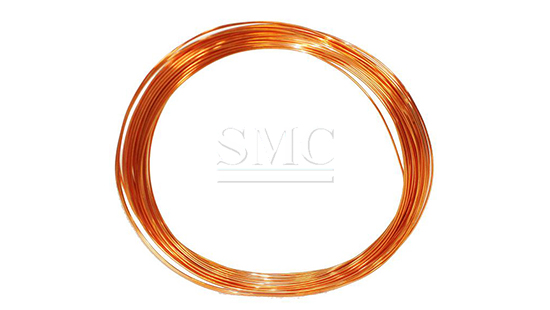

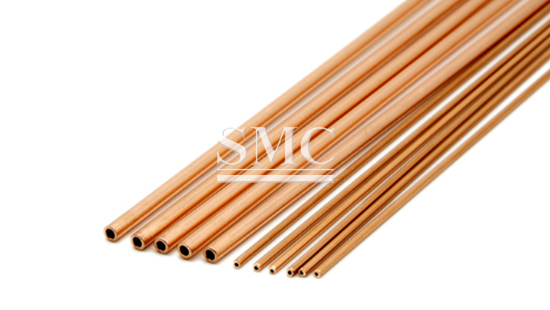

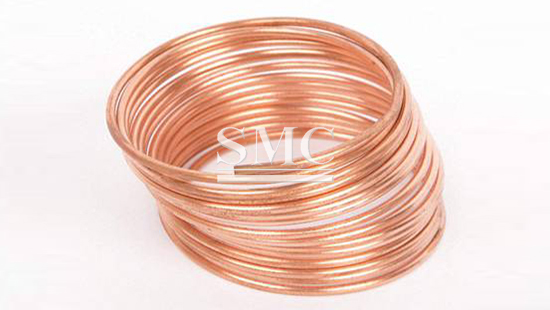

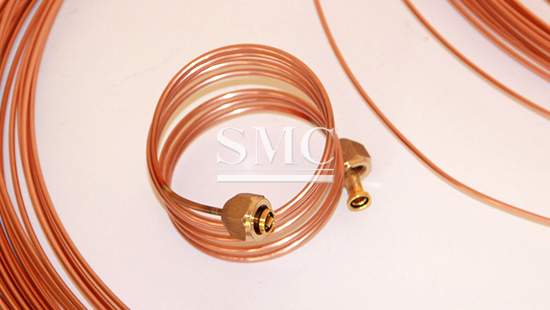

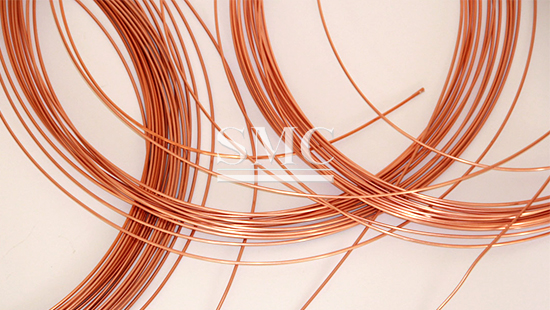

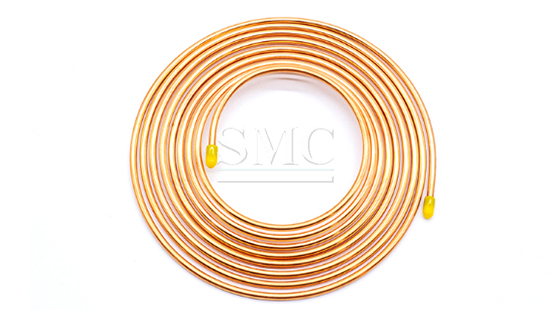

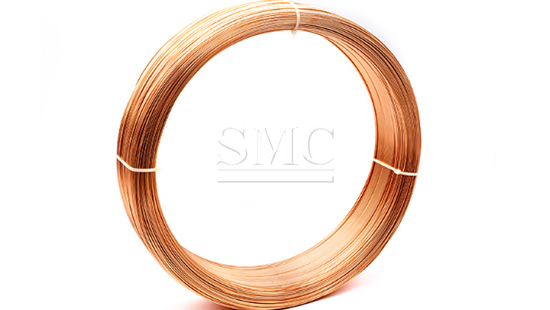

Shanghai Metal Corporation is a leading Capillary Copper Tube / Copper Capillary Tube manufacturer and supplier.

The capillary copper tube is a copper and copper alloy capillary tube, generally a copper tube, a brass tube and other special copper tubes having an outer diameter of 0.5 mm to 6.1 mm and an inner diameter of 0.3 mm to 4.45mm.

The copper capillary tube is drawn by cold extrusion, and the copper tube whose diameter is smaller than 6.1 or less in diameter is collectively referred to as a capillary tube.Capillary tubing is usually manufactured with fine precision, down to one thousandth of an inch. This precision allows airflow to be smoother, more uniform, and more closely monitored, making such applications as fluid & air restrictors much more useful. Capillary tubing and Pancake Copper Tube has very small inside diameters (e.g. .026 to .175 inches).

If you want to know more about our copper products or Pancake Copper Tube please feel free to contact us, we will reply you within 24 hours.

1) Grade: C10200, C12200, C22000, C23000, C26000, C27000, etc.

2) Outside diameter: ≤6.1 mm

3) Thickness: ≤ 0.5 mm

4) Coil weight: 5kg/20kg/30kg/50kg

5) Process Method: cold drawn and cold rolled

6) Surface: pickled or sand blasting

1) Small external diameter

2) High precision

3) Smooth internal and external surface

Copper capillary tube used in household refrigerators.

Copper capillary tube used in freezer.

Copper capillary tube used in air-condition

Copper capillary tube used in high-precision instruments and high precise apparatuses

Copper capillary tube used in industrial sectors such as instruments and electronics

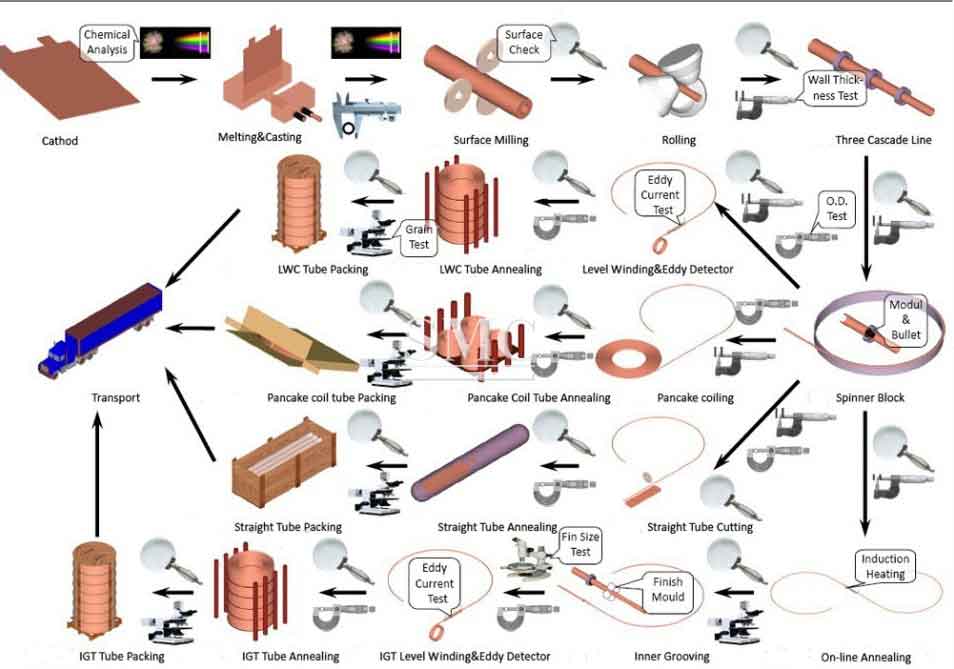

Manufacturing of Capillary Copper Tube

Packaging of Capillary Copper Tube

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

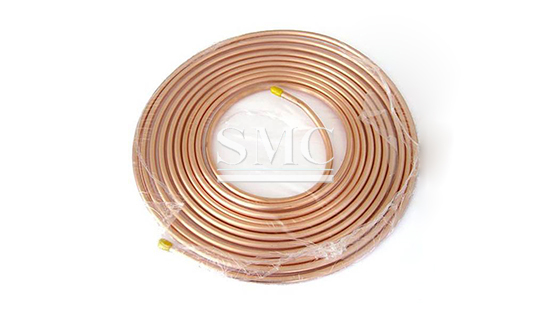

Packing of Capillary Copper Tube:

1) Seaworthy package

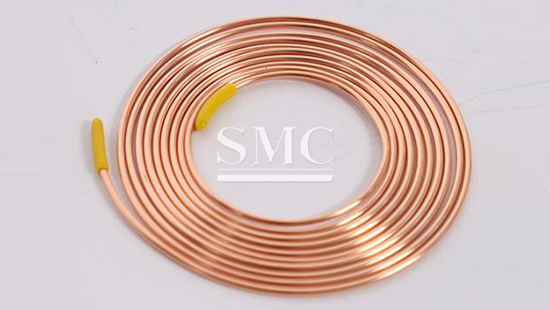

2) With plastic cap to protect both ends

3) Plastic bag wrapped outside the pipe

4) Bundles to be covered by polythene & strapped securely

5) If require, pack with wooden box

Inspection for Capillary Copper Tube:

1) Chemical Analysis

2) Component Analysis

3) Spectroscopic Analysis
