Standard thickness: 10-50mm

Material: Aluminum core + carbon fiber sheet

Aluminum foil thickness: 0.03-0.20mm

Core size: 1/30” to 1”

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading Carbon Fiber Aluminum Honeycomb Panel manufacturer and supplier.

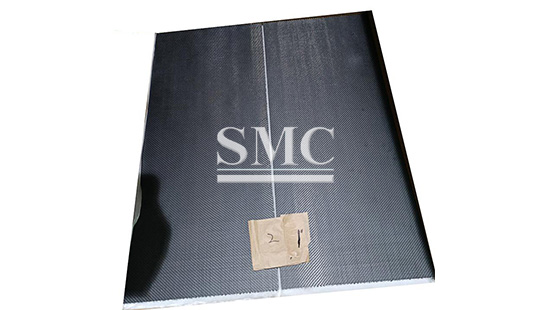

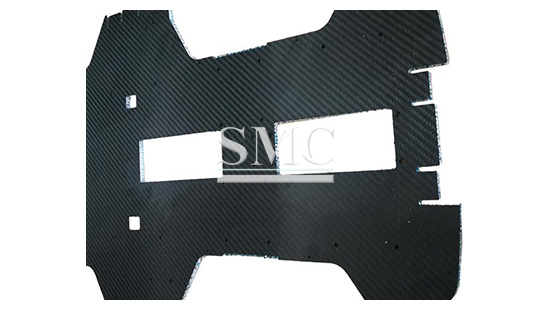

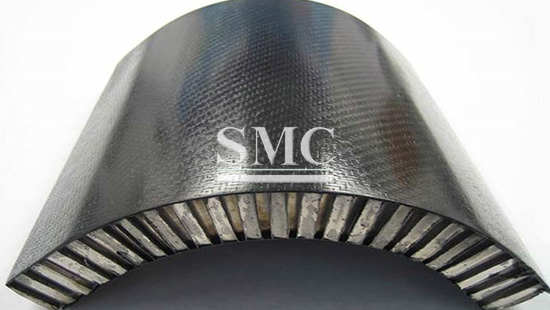

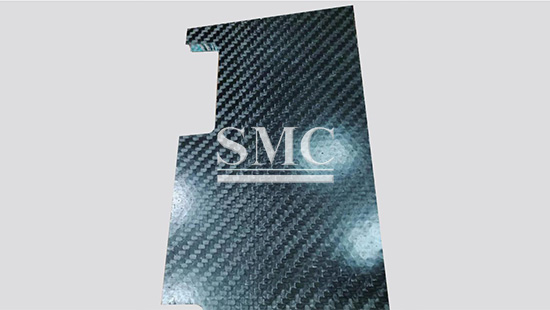

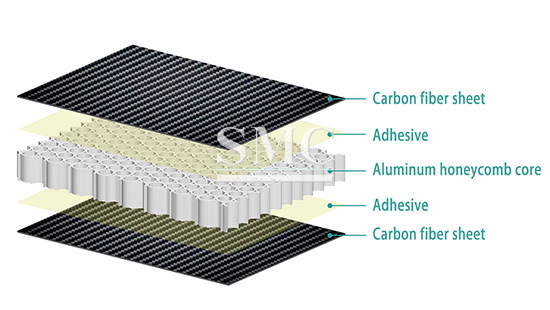

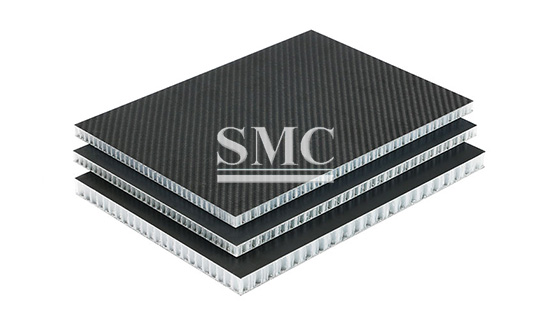

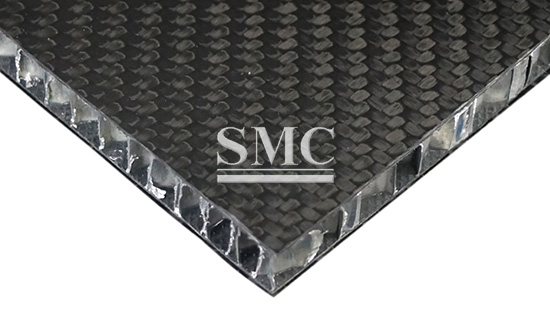

SMC focuses on the development of special function honeycomb panel. Carbon Fiber Aluminum Honeycomb Panel is a kind of high strength and lightweight composite panel bonded with carbon fiber skins and aluminum honeycomb core. Using high-quality carbon fiber prepreg impregnated with epoxy resin as skin material, which makes the carbon fiber aluminum honeycomb panels have the characteristics of durability, corrostion resistance, high elastic modulus and so on.

If you want to know more about our Carbon Fiber Aluminum Honeycomb Panel price or other honeycomb panel price please feel free to contact us, we will reply you within 24 hours.

Front/Back panel: 0.5-1.5 mm carbon fiber sheet
Honeycomb core: Aluminum 3003 H18 or 5052 H18
Core size: Cell size: 1/30” to 1”
Aluminum foil: 0.03-0.2mm thickness
Total Thickness: 10-50mm
Surface: 3K or 12K
*The size can be customized on request.

1. 100% high strength carbon fibre reinforcement
2. Super lightweight and high strength
3. Corrosion resistance
4. Super flatness
5. Sound insulation
6. Fire rating: EN45545-2 HL2 and GB8624-A2

The characteristics of light weight, high strength and excellent conductivity, lead to conductive honeycomb plate is used as motorsport, marine , light aircraft, Engineering , automation, Displays, exhibitions, shop-fitting, Cabinets , enclosures, high-end audio and others.

Micro-cellsize
aluminum alloy	3003			3003/5052
Cell size	0.86	1.04	1.73	2.6	3.17	3.47	5.2

Foil thickness	0.03	0.03	0.04	0.04 / 0.05 / 0.06 / 0.07 / 0.08 / 0.1/ 0.2
Maximum dimension	300*300	300*300	1000*1000	1200*1200	1500*1500	2000*1600	2000*1700
Application	lighting，purification ,ventilator filter,photography,laser bed

Regular cell size

aluminum alloy	3003/5052
Cell size	6.5	8.47	9.53	12.7	19.05	25.9	customized
Cell size
Foil thickness	0.04 / 0.05 / 0.06 / 0.07 / 0.8 / 0.1
Maximum dimension	8000*1700
Application	aerospace and defense sagment, architecture, furniture, yacht, sandwich panels

Factory standard and certification
Tolerance	Foil thickness	±0.002mm
	Density	±10%
	Cellsize	±10%
	Expanded width	0/+30mm
	Expanded length	0/+50mm
Temperature applied:	-55℃ to 175℃
Standard:	China Aviation Industry Standard HB5443-90
Certificate of Compliance	Rohs
Smoke& toxicity tests	DIN 5510-2:2009 & DIN 54837:2007

Packaging of Carbon Fiber Aluminum Honeycomb Panel

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization
