Spare Parts

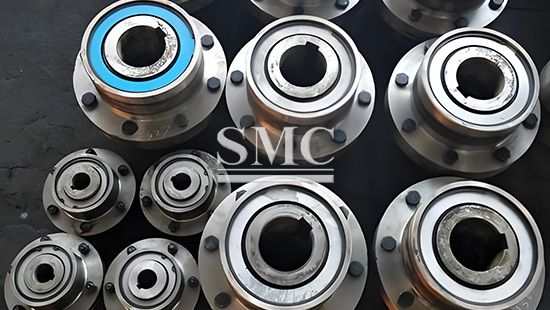

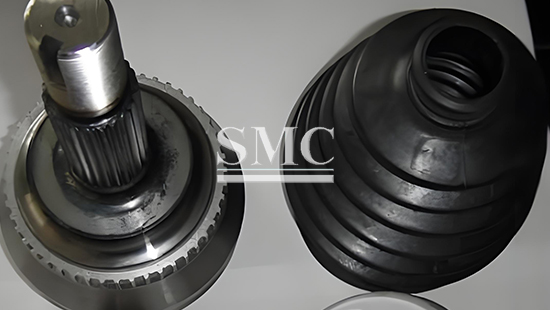

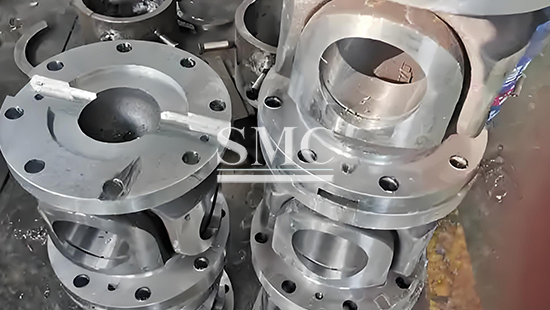

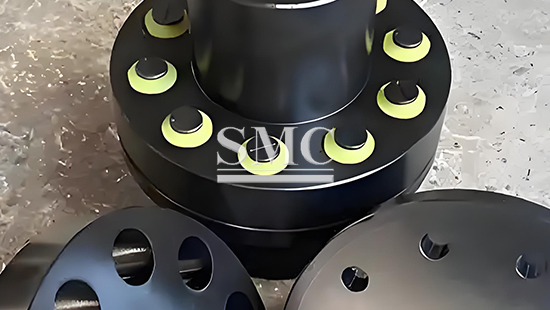

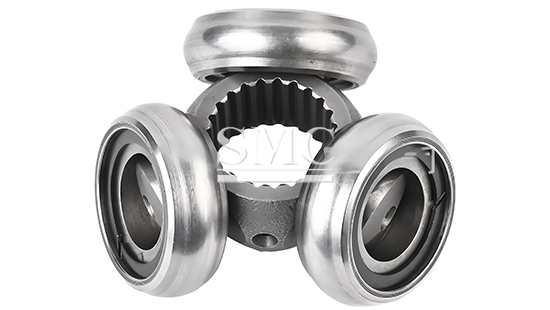

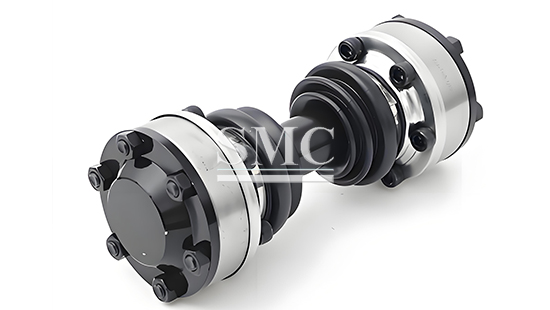

Cardan Joint Coupling

Material: High - strength Alloy Steel (such as 20CrMnTi, 40CrNiMo), High - quality Engineering Plastics for Cage

Advantage: High - precision Transmission, Strong Angular Compensation, Large Load - bearing Capacity, Long - lasting Durability

Type: Fixed - type Cardan Joint Coupling, Movable - type Cardan Joint Coupling

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Cardan Joint Coupling with high quality and reasonable price.

Our Cardan Joint Couplings are meticulously crafted using top - grade high - strength alloy steel for the crucial components like the outer housing, inner star - shaped wheel, and steel balls. The cages are made from high - quality engineering plastics, ensuring a perfect balance of strength and lightweight design. These couplings are designed to meet the most stringent requirements in various mechanical applications. They can endure extreme mechanical stresses, whether it's the high - torque and high - speed rotation in automotive powertrains or the complex motion scenarios in industrial machinery. Cardan Joint Couplings from Shanghai Metal Corporation are engineered for a wide range of industrial applications. They play a vital role in the automotive industry, where they are used in the drive shafts of vehicles to ensure smooth power transfer between the engine and the wheels. In the industrial machinery field, they are essential for connecting different rotating components in equipment such as cranes, excavators, and conveyor systems. Their ability to transmit torque efficiently while compensating for large angular displacements makes them an indispensable choice for these applications.

If you want to know more about Cardan Joint Coupling price please feel free to contact us, we will reply you within 24 hours

Material: High - strength alloy steel (like 20CrMnTi for gears, 40CrNiMo for shafts) provides excellent wear resistance and high - torque - bearing capacity. The cages are made of engineering plastics with high - impact resistance and self - lubricating properties, ensuring smooth operation of steel balls.
Surface Treatment: The steel parts undergo a multi - step surface treatment process, including quenching and tempering to enhance hardness and wear resistance, and then precision - machining to ensure high - dimensional accuracy.

Dimensions: Highly customizable. The outer diameter, length, and inner bore size of the coupling can be tailored to fit different shaft sizes, equipment models, and installation space requirements.
Torque Transmission Capacity: Can transmit torques ranging from a few hundred to tens of thousands of Newton - meters, suitable for various industrial machinery, from small - scale precision equipment to large - scale heavy - duty machinery.

High - precision Equal - speed Transmission: The unique structure of the Cardan joint ensures that the output shaft rotates at a constant speed, minimizing vibrations and ensuring stable power transmission, which is crucial for applications requiring high - precision motion control.
Strong Angular Compensation Ability: It can compensate for large angular displacements (up to 40° - 45° in some cases), allowing the coupling to work effectively even when the axes of the connected shafts have significant misalignment, which is common in automotive suspension systems and some industrial machinery.

Large Load - bearing Capacity: The high - strength alloy steel components and optimized structural design enable the coupling to withstand heavy loads, making it suitable for high - torque applications in heavy - duty vehicles and large - scale industrial equipment.
Long - lasting Durability: With high - quality materials and strict manufacturing processes, the Cardan Joint Coupling has excellent wear resistance and fatigue resistance, reducing the frequency of replacement and maintenance, and thus saving costs in the long run.

Technical Information of Cardan Joint Coupling:

Type	wing Diameter D	Nominal Torque Tn kN.m	Fatigue Torque Tf kN.m	Axis Angle β	Expansion Ls	Size mm - Lmin	Size mm - D3	Size mm - Lmin	Rotational Inertia kg.m² - 100mm	Weight kg - Lmin	Weight kg -Every increase 100mm
SMC100BH	100	1.25	0.63	≤25	55	390	60	0.0044	0.00019	6.1	0.35
SMC120BH	120	2.5	1.25	≤25	80	485	70	0.0109	0.00044	10.8	0.55
SMC150BH	150	5	2.5	≤25	80	590	89	0.0423	0.00157	24.5	0.85
SMC180BH	180	12.5	6.3	≤25	100	810	114	0.175	0.007	70	2.8
SMC225BH	225	40	20	≤15	140	920	152	0.538	0.0234	122	4.9
SMC250BH	250	63	31.5	≤15	140	1035	168	0.966	0.0277	172	5.3
SMC285BH	285	90	45	≤15	140	1190	194	2.011	0.051	263	6.3
SMC315BH	315	125	63	≤15	140	1315	219	3.605	0.0795	382	8
SMC350BH	350	180	90	≤15	150	1410	267	7.053	0.2219	582	15
SMC390BH	390	250	125	≤15	170	1590	267	12.164	0.2219	738	15
SMC440BH	440	355	180	≤15	190	1875	325	21.42	0.4744	1190	21.7
SMC490BH	490	500	250	≤15	190	1985	325	32.86	0.4744	1452	21.7
SMC550BH	550	710	355	≤15	240	2300	426	68.92	1.357	2380	34

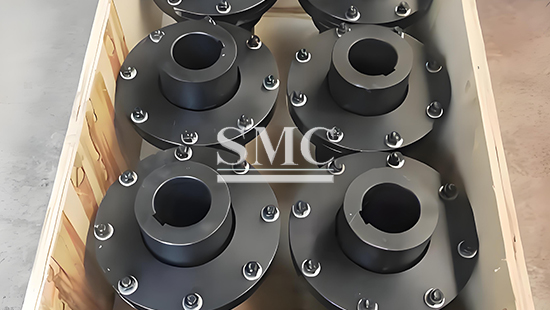

Packaging of Cardan Joint Coupling:

Shanghai Metal Corporation is committed to ensuring that all Cardan Joint Couplings are packaged and labeled in strict accordance with industry norms and customer - specific demands. We attach great importance to protecting the couplings during transit and storage, using sturdy packaging materials and clear labeling for easy identification. Customized packaging solutions are also available upon request.

1. Standard

Inner Packaging: High - density foam or anti - vibration rubber to protect the coupling from impacts.

Cushioning Layer: Multiple layers of shock - absorbing materials to further reduce vibrations.

Outer Packaging: Strong cardboard boxes or wooden crates, depending on the size and weight of the coupling.

Labeling: Clearly marked with product name, model number, specifications, production date, and manufacturer information.

2. Customization

Specialty Packaging: Custom - designed packaging to meet specific transportation or storage requirements, such as anti - electrostatic packaging for sensitive equipment.

Custom Labeling: According to customer requirements, additional information can be added to the label, such as customer - specific logos or product usage instructions.

Assembly - Ready Packaging: Packaged in a way that allows for easy assembly on - site, with all components clearly separated and labeled.

Applications:

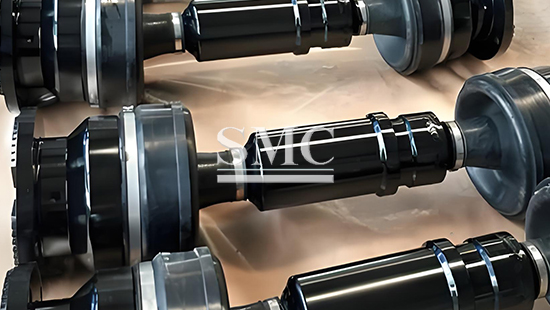

Automotive Industry: Widely used in the drive shafts of front - wheel - drive, rear - wheel - drive, and all - wheel - drive vehicles to transfer power from the engine or transmission to the wheels. It is also used in the steering systems of some vehicles to ensure smooth and accurate control.

Industrial Machinery: In construction machinery such as cranes, forklifts, and excavators, it connects the power source to the working parts, enabling efficient power transmission. In conveyor systems, it helps to maintain the stability of the conveyor belt operation and ensures smooth material transportation.

Aerospace and Defense: In aircraft and military vehicles, Cardan Joint Couplings are used in the power transmission systems to meet the high - performance and high - reliability requirements in harsh environments. They are also used in some precision - controlled weapon systems for accurate motion control.

Industrial Machinery: Widely used in manufacturing plants to connect motors to pumps, compressors, conveyors, and other production equipment.

Power Generation: In power plants, it is used to connect turbines to generators, as well as in auxiliary equipment such as cooling water pumps and fans.

Automotive Industry: In automotive manufacturing, diaphragm couplings are used in assembly line machinery, such as robotic arms and transfer systems.
