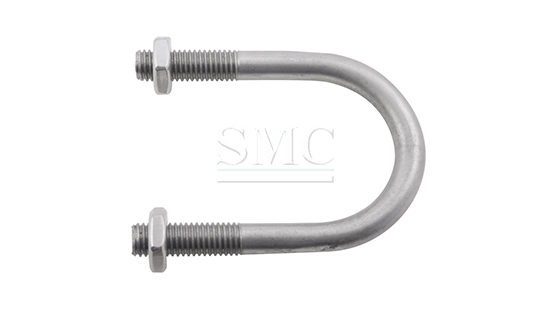

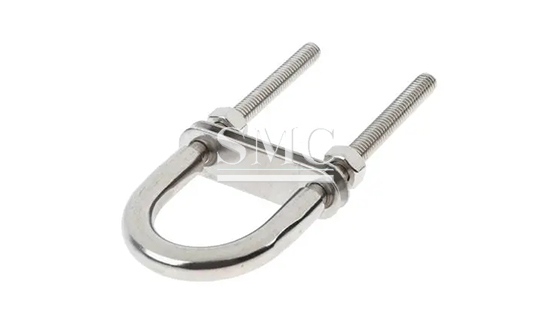

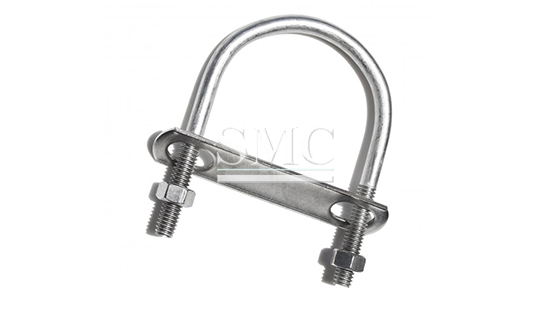

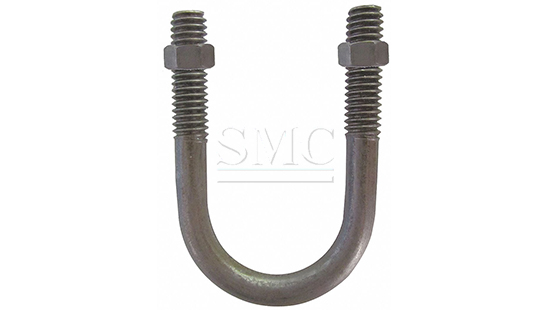

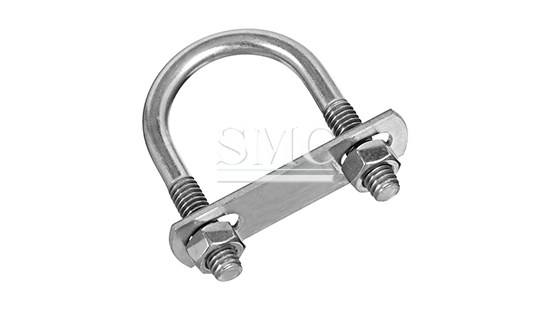

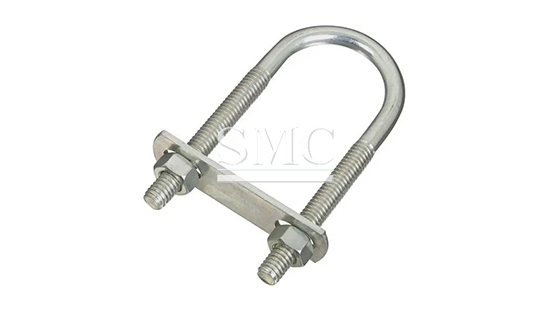

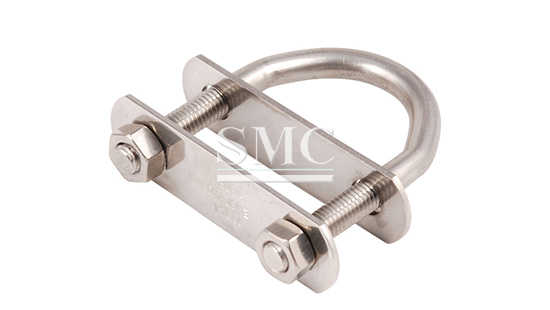

U Bolt
Type: Threaded U type
Material: Zinc plated, 201, 304, 316
Size: M4, M6, M8, M10, etc.
Shanghai Metal Corporation is a leading U bolt manufacturer and supplier.
Stronger than routing clamps and hangers, U-bolts support heavy pipe, tube, and conduit from ceilings, walls, and poles. Black-oxide steel U-bolts have mild corrosion resistance. Zinc-plated steel U-bolts have good corrosion resistance in most environments. Galvanized steel U-bolts have better corrosion resistance than black-oxide and zinc-plated steel U-bolts. Aluminum U-bolts are lighter weight and more corrosion resistant than steel U-bolts, but aren't as strong. 304 stainless steel U-bolts have excellent corrosion resistance and good chemical resistance. 316 stainless steel U-bolts have excellent corrosion and chemical resistance. U-bolts with four nuts allow you to secure the U-bolt from the top and the bottom.
If you want to know more about our cermet products or cermet rod price, please feel free to contact us, we will reply you within 24 hours.
Technical Information of U Bolt:
|
Nominal Pipe Size |
Pipe Outside Diameter |
Thread Size |
Inner Dimension (ID) |
Height |
Thread Length (T) |
||
|
MM |
IN |
MM |
MM |
IN |
MM |
MM |
MM |
|
15 |
1/2’’ |
21.7 |
6 |
1/4’’ |
24 |
42 |
22 |
|
20 |
3/4’’ |
27.2 |
6 |
1/4’’ |
30 |
47 |
22 |
|
25 |
1" |
34 |
6 |
1/4’’ |
36 |
53 |
25 |
|
32 |
1-1/4’’ |
42.7 |
6 |
1/4’’ |
46 |
64 |
28 |
|
40 |
1-1/2’’ |
48.6 |
10 |
3/8’’ |
52 |
73 |
30 |
|
50 |
2" |
60.5 |
10 |
3/8’’ |
64 |
85 |
32 |
|
65 |
2-1/2’’ |
76.3 |
10 |
3/8’’ |
80 |
105 |
35 |
|
80 |
3" |
89.1 |
10 |
3/8’’ |
92 |
118 |
35 |
|
90 |
3-1/2’’ |
101.6 |
12 |
1/2’’ |
104 |
131 |
40 |
|
100 |
4" |
114.3 |
12 |
1/2’’ |
118 |
150 |
55 |
|
125 |
5" |
139.8 |
12 |
1/2’’ |
144 |
176 |
55 |
|
150 |
6" |
165.2 |
16 |
5/8’’ |
170 |
210 |
65 |
|
200 |
8" |
216.3 |
16 |
5/8’’ |
222 |
262 |
65 |
|
250 |
10" |
267.4 |
20 |
3/4’’ |
274 |
320 |
75 |
|
300 |
12" |
318.5 |
22 |
7/8’’ |
326 |
380 |
90 |
|
350 |
14" |
355.6 |
22 |
7/8’’ |
362 |
420 |
90 |
|
400 |
16" |
406.4 |
22 |
7/8’’ |
414 |
470 |
90 |
|
450 |
18" |
457.2 |
24 |
1" |
466 |
530 |
110 |
|
500 |
20" |
508 |
24 |
1" |
518 |
585 |
110 |
|
550 |
22" |
558.8 |
24 |
1" |
568 |
640 |
120 |
|
600 |
24" |
609.6 |
24 |
1" |
620 |
690 |
120 |

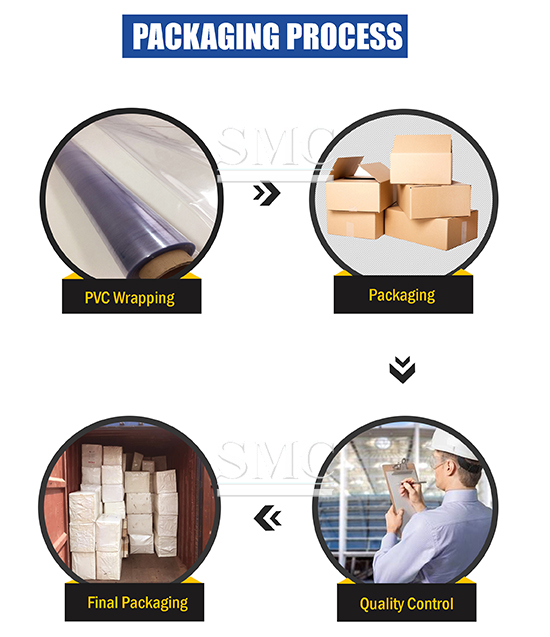

Packaging of U Bolt:
here
for
price
