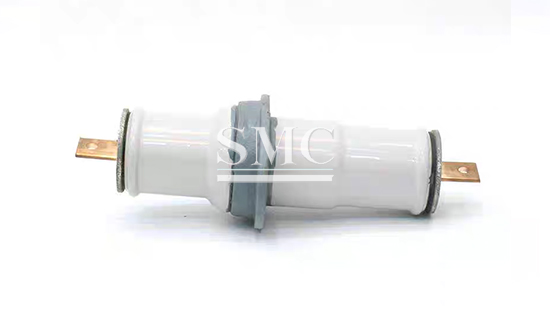

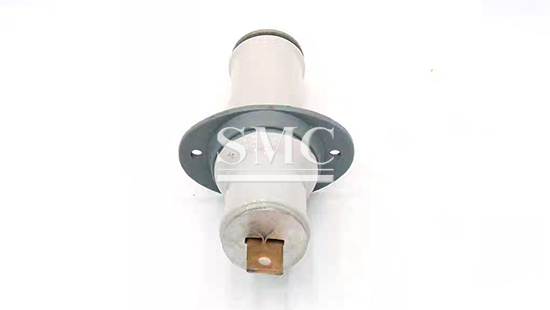

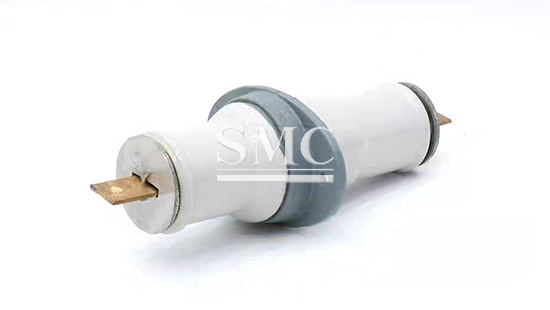

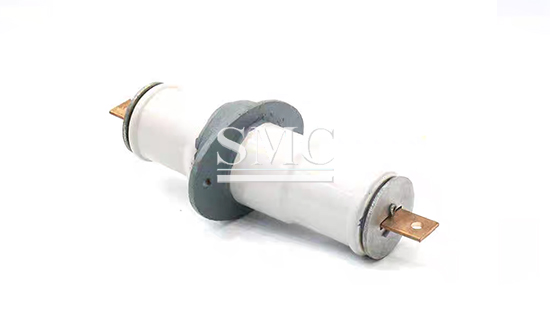

CC Indoor High Voltage Ceramic Wall Bushing
Customization: Available
Application: High-voltage, High-temperature
Material: Ceramic
Shanghai Metal Corporation is a professional manufacturer and supplier of CC Indoor High Voltage Ceramic Wall Bushing with high quality and reasonable price.
Ceramic Wall Bushing are suitable for power stations, substations, power distribution devices and high-voltage electrical appliances with power frequency AC voltage below 35kV. They are used as insulation and support for conductive parts passing through walls or other grounding objects. The bushings are suitable for ambient temperature -40~+40ºC.
If you want to know more about CC Indoor High Voltage Ceramic Wall Bushing price please feel free to contact us, we will reply you within 24 hours

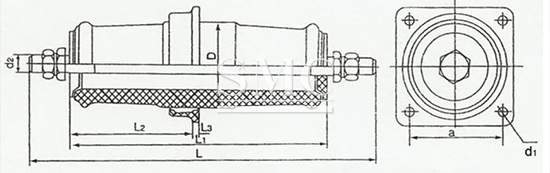

Technical Information of CC Indoor High Voltage Ceramic Wall Bushing:
|
Model |
Rated |
Rated |
Dimension （mm） |
Place of Instalation |
||||||||
|
D |
L |
L1 |
L2 |
L3 |
d1 |
d2 |
a |
b |
||||
|
CC-10/1000 |
10 |
1000 |
145 |
655 |
510 |
250 |
12 |
15 |
M30 |
150 |
- |
indoor |
|
CC-10/1500 |
10 |
1500 |
145 |
655 |
510 |
250 |
12 |
15 |
M39 |
150 |
- |
indoor |
|
CC-10/2000 |
10 |
2000 |
145 |
675 |
510 |
250 |
12 |
15 |
M45 |
150 |
- |
indoor |
Packaging of CC Indoor High Voltage Ceramic Wall Bushing:
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
