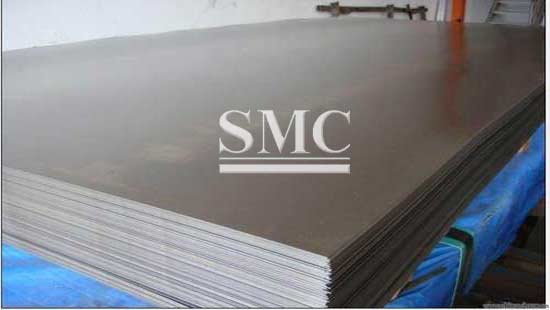

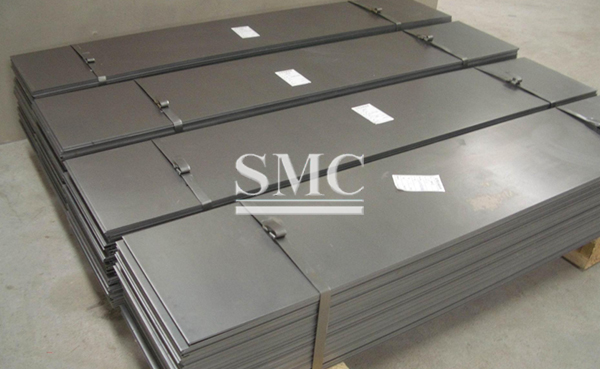

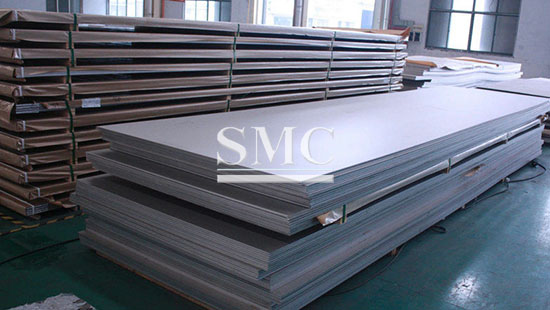

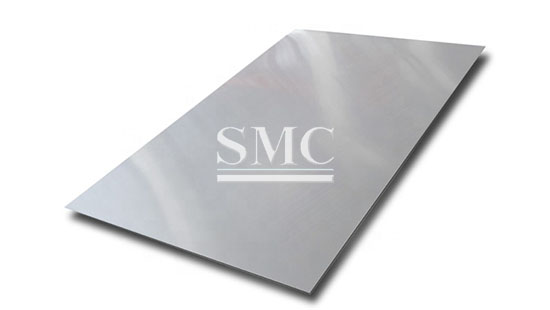

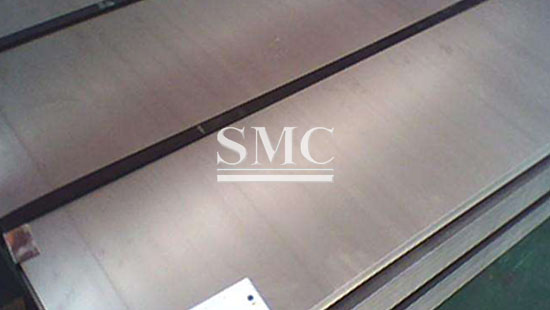

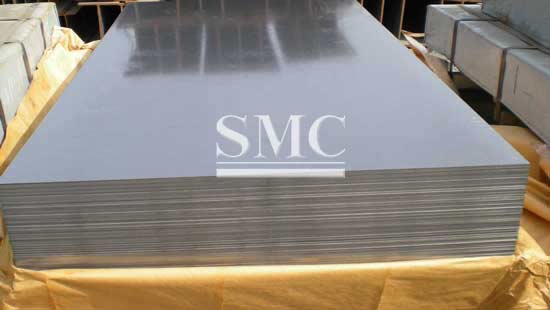

Cold Rolled Steel Plate
Thickness: 0.18mm~3.5mm
Width: 1000/1219/1200/1250mm, etc
Shanghai Metal Corporation is a professional manufacturer and supplier of Cold Rolled Steel Plate with high quality and reasonable price.
We promise our customers reliable quality, quick delivery and excellent post-sales service. Special standards and grades can be manufactured according to customer requirements.
To learn more about us, visit the case study.
If you want to know more about our Cold Rolled Steel Plate products or price please feel free to contact us,we will reply you within 24 hours
Cold rolling uses hot-rolled steel coil as raw material, and is subjected to pickling to remove scale and then cold-rolling. The finished product is rolled hard roll. The cold work hardening caused by continuous cold deformation increases the strength and hardness of the rolled hard roll and is toughened. Rolled hard rolls can be used as raw materials for hot-dip galvanizing plants.
Cold rolled steel is thinner, smoother and stronger than hot-rolled products. Cold rolled steel is distinctive due to its aesthetic appearance,having well-defined corners, more uniformity, and a smooth surface. Since the process is performed at room temperature, the steel will not shrink as it cools, as it does in the hot-rolled process.
|
GRADE |
STANDARD |
DIMENSION, MM
|
APPALICATIONS |
||
|
Thickness
|
Width |
Length |
|||
|
DC01, DC03, DC04, DC05, DC06, DC07, SPCCT-SD, SPCD-SD, SPCE-SD, SPCF-SD, SPCG-SD |
Q/WG(LZ)20-2008 EN 10130:1998 JIS G 3141:2005 |
0.2 ~ 3.0 |
600- 2050 |
Customized |
General and deep drawing forming components and parts |
|
GRADE |
YIELD STRENGTH Mpa |
TENSILE STRENGTH Mpa |
ELONGATION % |
PLASTICITY INDEX |
HARDEN INDEX |
|
DC01 |
140~280 |
270~410 |
≥28 |
- |
- |
|
DC03 |
140~240 |
270~370 |
≥34 |
≥1.4 |
- |
|
DC04 |
120~210 |
270~350 |
≥38 |
≥1.8 |
≥0.18 |
|
DC05 |
120~180 |
270~330 |
≥40 |
≥2.0 |
≥0.20 |
|
DC06 |
120~170 |
270~330 |
≥42 |
≥2.1 |
≥0.22 |
|
DC07 |
100~150 |
250~310 |
≥44 |
≥2.5 |
≥0.23 |

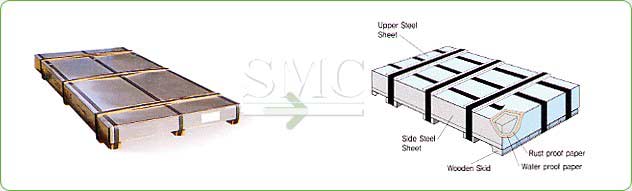

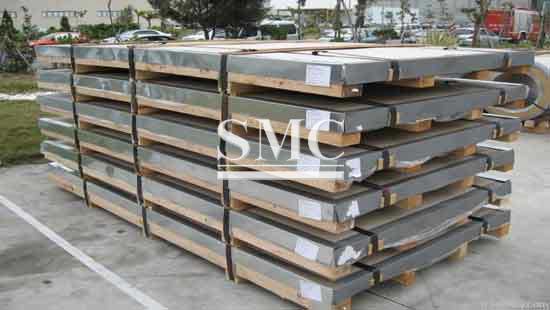

Packaging of Cold Rolled Steel Plate:
Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
Applications of Cold Rolled Steel Plate:
- Automotive use
- Chemical equipment
- Elevators
- Solar energy
- Rail transit
- pressure vessels, etc.
Remarks:
1.Origin / Manufacturer: China
2.Port of Loading:Shanghai Port,China
3.Packing Term: Bulk Packing Or Container
4.Measurement of Weight: By Actual Weighting
5.Certificate:ISO9001,CIC,BV,SGS
