Transformer Components

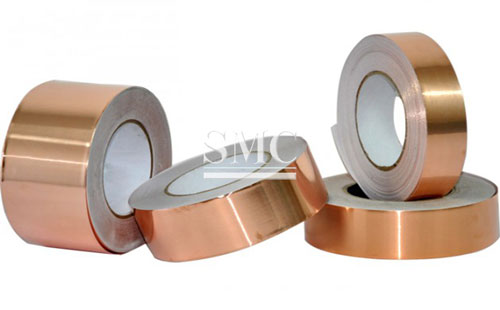

Copper Foil Tape/Conductive Copper Foil/ Foil Copper Sticker for Transformer Components

    Types: single-sided & double-sided



    Thickness: 0.018mm - 1.2mm



    Width: 5mm - 500mm

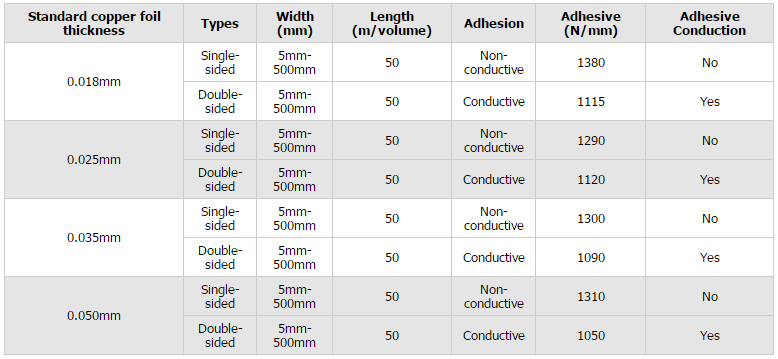

Specifications of Copper Foil Tape/Foil Copper Sticker for Transformer Components:

1) Grade: C11000, C12200, T2, TP2

2) Purity: ≥99.95%

3) Thickness: 0.018mm - 1.2mm

4) Width: 5mm - 500mm

5) ID: 76mm

6) Chemical Composition: Cu >99.90% p:0.015%-0.040%

7) Temper: O, 1/4H, 1/2H, H O : HV100

8) Electric Conductivity at 20°C: C11000 >97%, C12200 >80%

9) Customizations are accepted




Features of Copper Foil Tape/Foil Copper Sticker

1) Good viscosity, cold resistance

2) Mechanical resistance, moisture resistant

3) High heat and electric conductivity

4) Excellent ductility and corrosion resistance

5) Flame retardant

6) Easy to tear apart

Manufacturing of Copper Foil Tape/Foil Copper Stickers

Packaging of Copper Foil Tape/Foil Copper Stickers

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Copper Foil Tape/ Foil Copper Sticker:

1) Electric and electric springs, switches

2) Lead frames

3) Connectors and oscillation reeds

4) Battery

5) Communication cable

6) Cable armoring

7) Mobile phone main board

8) Ion battery production lamination with PI film

9) PCB collector (electrode backing) materials
