Steel Pipes & Fittings

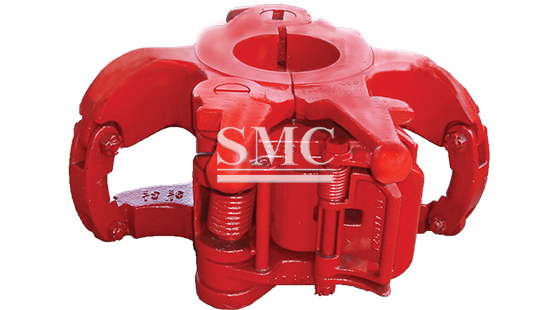

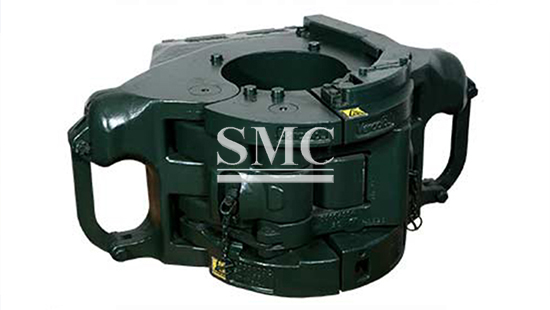

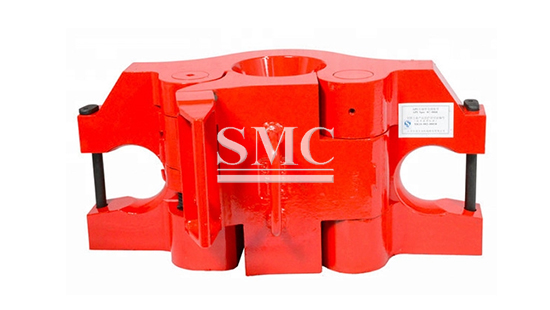

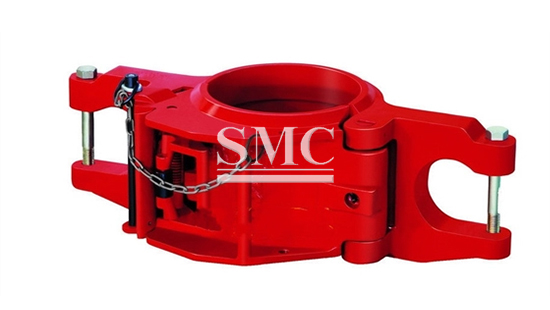

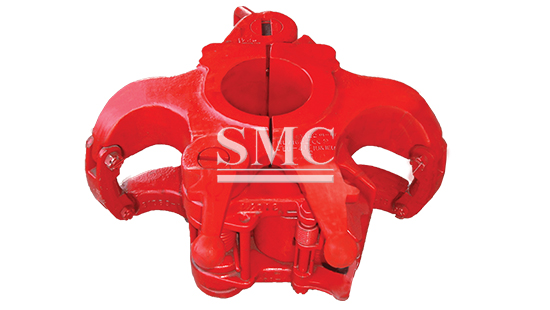

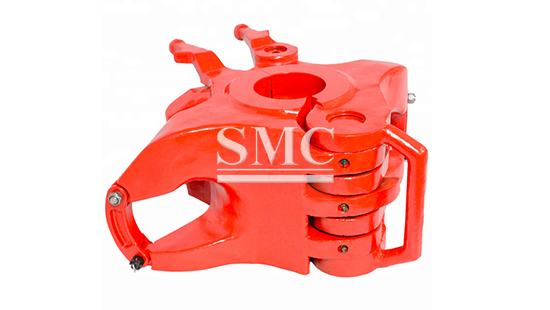

Drill Pipe Elevator

Main Function: Hydraulic Support

Model: TA/ CD/ DD/ CDZ/ DDZ/ SLX/ Y

Size: 2-3/8" to 7" or customized

Loading Capacity: 35-750 Tons

Other Names: Oilfield drill tubing elevator, Casing pipe elevator

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Drill Pipe Elevator with high quality and reasonable price.

Our products have passed CE & ISO:9001 quality management system and stand the end users’ ordeal. We devote ourselves to manufacture the high-quality products with competitive prices, we know the industries well, therefore from design to material selection, till manufacturing technique is up to the high standard, meanwhile our planning team and international team will ensure the punctual delivery.

If you want to know more about Drill Pipe Elevator price please feel free to contact us, we will reply you within 24 hours

1. Model TA center latch elevators with square shoulders are suitable for handling drill collar, casing, and tubing. These products are designed and manufactured in compliance with the requirements outlined in API Spec 8C, Specification for Drilling and Production Hoisting Equipment.

2. Model DD center latch elevators with square shoulders are designed for handling drill collar, drill pipe, casing, and tubing, with load capacities ranging from 150 tons to 350 tons and size ranges from 2 3/8 to 5 1/2 inches. They are manufactured according to API Spec 8C requirements.

3. CD drill pipe elevators are conventional side-door drill pipe elevators used in oil and gas drilling operations for handling 90-degree shoulder drill pipe. They are forged from high-quality alloy steel, heat-treated, and subjected to non-destructive testing (NDT). These elevators have rated loads ranging from 150t to 750t and cover pipe sizes from 2 3/8" to 9 7/8" O.D.

4. CDZ drilling pipe elevators are primarily used for holding and hoisting drilling pipe with an 18-degree taper and tools in oil and natural gas drilling and well construction. Similar to CD elevators, CDZ elevators are forged from high-quality alloy steel, heat-treated, and NDT tested. They have rated loads ranging from 150t (1350kN) to 500t (4500kN) and cover pipe sizes from 2 3/8" to 5 1/2" O.D.

5. DDZ series elevators are center latch elevators with 18-degree taper shoulders, designed for handling drilling pipes and drilling tools. They have load capacities ranging from 100 tons to 750 tons and size ranges from 2 3/8" to 6 5/8".

1. Designed and manufactured according to API Spec 8C.

2. Versatile for handling drill collar, drill pipe, casing, and tubing.

3. Available in a wide range of load capacities and sizes.

4. Forged from high-quality alloy steel, heat-treated.

5. NDT tested for durability and safety.

1. Drilling Services

2. Downhole Operations

3. Mining and Geological Exploration

4. Wellhead Services and Maintenance

5. Oil and Gas Exploration and Production

Technical Information of Drill Pipe Elevator:

Model	Size	Rated Capacity
Model	(in)	(short tons)
SLX-65	31/2-141/4	65
SLX-100	23/8-53/4	100
SLX-150	51/2-135/8	150
SLX-250	51/2-30	250
SLX-350	1941/2/14	350

Model	Size(in)				Rate Cap.
		Tubing			(Short Tons)
	DC	NU	EU	Casing
TA-35	2 7/8-3 1/8	1.05-2 7/8	1.05-2 7/8	/	35
TA-65	2 7/8-3 1/8	1.66-2 7/8	1.66-2 7/8	/	65
TA-100	3 7/8-5 1/4	2 3/8-5	2 3/8-5	/	100
TA-150	4 1/8-11 1/4	/	/	4 1/2-10 3/4	150

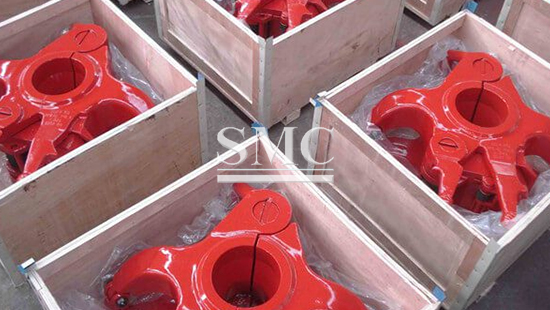

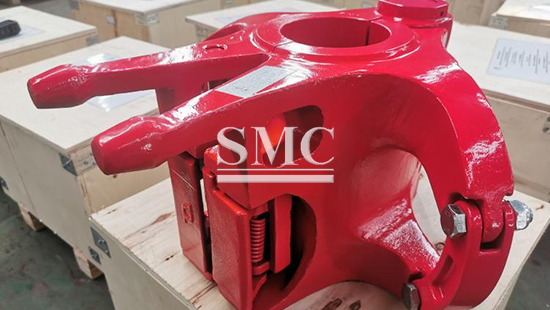

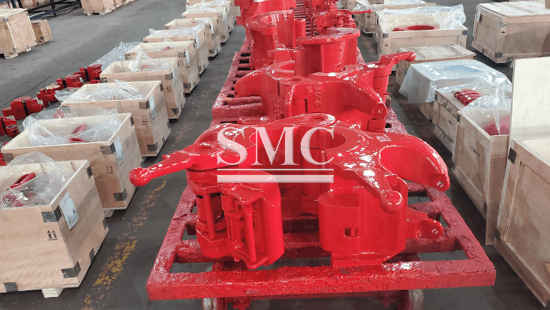

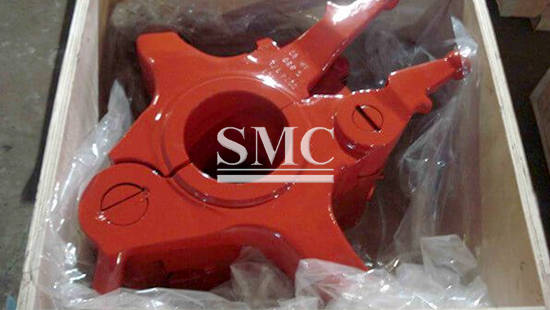

Packaging of Drill Pipe Elevator:

Drill pipe elevators are typically carefully wrapped with plastic bags and then snugly packed into custom-made wooden cases to ensure their safe transportation. To provide added protection during transit, padding such as foam or bubble wrap is meticulously applied around the equipment. This meticulous packing process helps safeguard the elevators against any potential damage while en route to their destination.
