Thread Size: M6-M24

Length: 40-300mm or customizable

Grade: Q235/ 35K/ 45K/ 40Cr/ B7/ 20MnTiB/ A2/ A4

Product Detail | Technical Information | Packaging

Product Detail

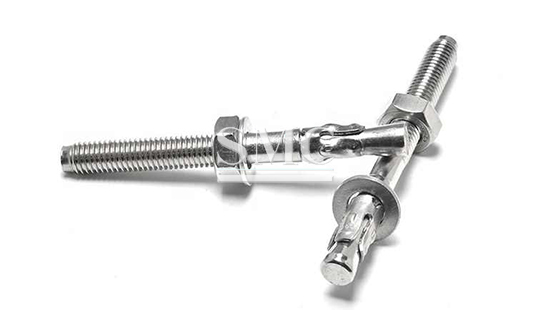

Shanghai Metal Corporation is a professional manufacturer and supplier of Expansion Wedge Anchor Through Bolt with high quality and reasonable price.

The overall structure of expansion wedge anchor through bolt is optimized compared with ordinary screw-type expansion anchors, which improves the anchoring performance, and has significantly enhanced static and dynamic load-bearing performance. The tensile strength is increased by 10% compared to ordinary screw-type expansion anchors.

Select the appropriate embedding depth according to the fixed plate thickness. As the embedding depth increases, the tensile force increases. This product has a reliable post-expansion function.

If you want to know more about Aluminum Sheet or Expansion Wedge Anchor Through Bolt price please feel free to contact us, we will reply you within 24 hours

Long thread

Suitable for spacing installation

Flexible adjustment

1. It has longer threads and is easier to install, usually used in heavy-duty facilities.

2. To obtain reliable and huge tightening force, it is necessary to ensure that the clamp ring fixed on the gecko is fully expanded. And the expansion clamp ring cannot fall off the rod or become twisted in the hole.

3. The calibrated tensile force values are all tested under the condition of cement strength of 260-300kgs/cm2. The maximum safe load shall not exceed 25% of the calibrated value.

Channel steel

Guide rails

Brackets

Steel structures

Escalators

Railings

Curtain walls

Technical Information of Expansion Wedge Anchor Through Bolt:

Our wedge type anchor fastener products have passed multiple international certifications and are suitable for ‌building curtain walls‌: used to install and fix panels on the exterior walls of buildings, providing structural support and waterproofing functions.

‌Interior decoration‌: fix interior decoration materials such as suspended ceilings and partitions to ensure that they are stable and do not fall off.

‌Mechanical equipment installation‌: heavy mechanical equipment is fixed to the foundation through anchor bolts to prevent vibration and displacement.

‌Electrical and plumbing systems‌: used to install wire pipes, plumbing facilities, etc. to ensure the stable operation of the system.

‌Exterior wall insulation‌: In the exterior wall insulation system, anchor bolts are used to fix insulation boards to improve the thermal insulation and heat insulation performance of the building

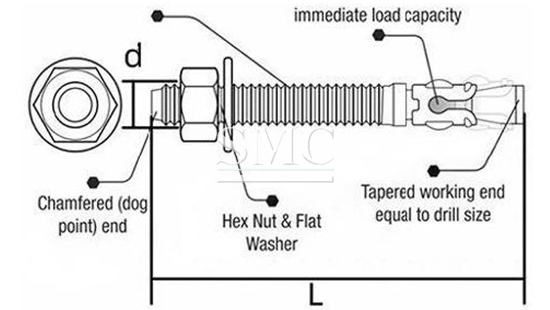

anchor size(d xL)	max fast thickness	anchor size(d xL)	max fast thickness
M6X40	3	M10X115	55
M6X55	15	M10X120	60
M6X70	30	M10X130	70
M6X95	55	M12X80	20
M8X50	10	M12X115	30
M8X65	20	M12X120	50
M8X80	35	M12X135	65
M8X95	50	M12X150	80
M8X105	60	M16X105	15
M8X120	75	M16X140	40
M8X165	135	M16X180	80
M10X65	15	M20X125	15
M10X80	20	M20X160	40
M10X95	35	M20X180	80
Notes: The above parameter is only for reference,the product is subject to the actual dimension.

Packaging of expansion wedge anchor through bolt:

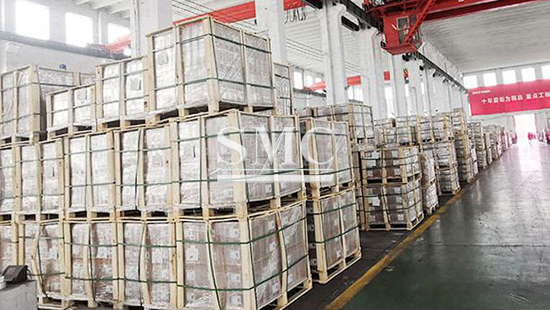

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
