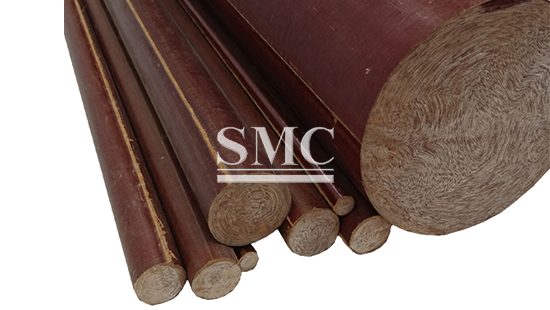

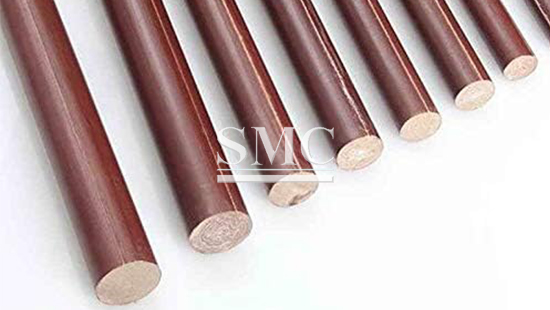

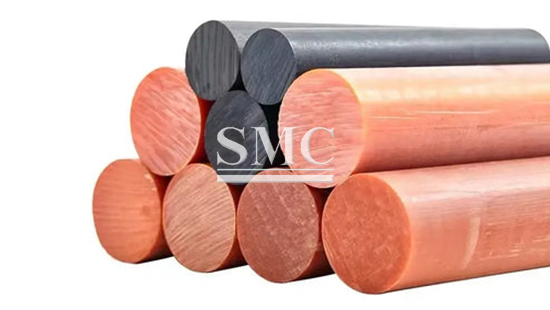

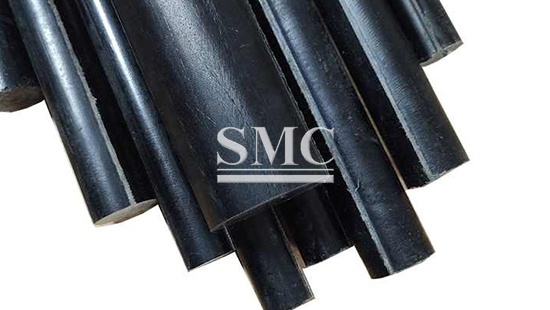

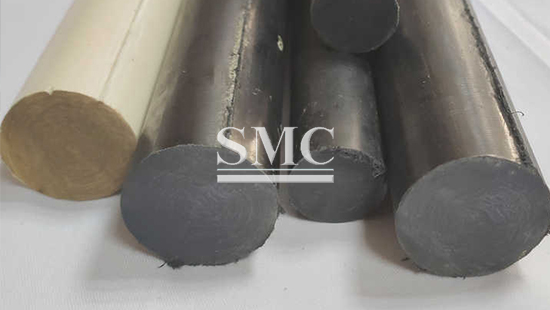

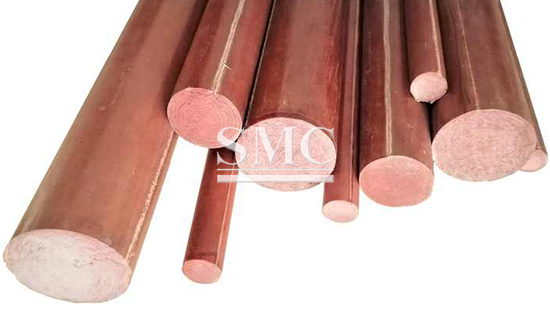

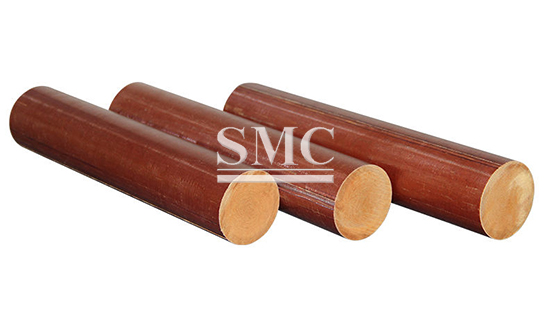

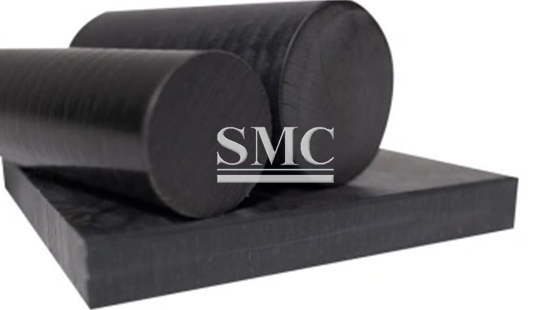

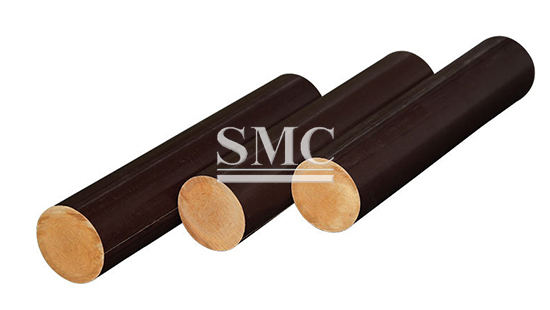

Fabric Bakelite Rod
Size: Dia 6 to Dia200mm
Material: Bakelite phenol formaldehyde resin
Length: 500/1000mm, customized
Color: Brown, Black.
Shanghai Metal Corporation is a leading Fabric Bakelite Rod manufacturer and supplier.
Fabric Bakelite Rod is a hard, strong and an economical from of solid rod. It is made from phenolic resin reinforced with layers of woven cloth, this rod will handle temperatures up to 125°C. Bakelite Rod also has good electrical insulation characteristics and is widely used in low to medium voltage applications.
The products are mainly used as insulating machine parts of electric equipment, screw and wear resistant component of machinery, etc. If you want to know more about our Bakelite Sheet price or other insulation component price please feel free to contact us, we will reply you within 24 hours.
|
Standards |
GB/T 5132.1-2009 IEC61212-1:2006 |
|||||
|
Chinese Name |
3725 |
3840 |
3850 |
3851 |
850 |
|
|
IEC |
PFCC41 |
EPGC41 |
BMIGC41 |
- |
SIGC41 |
|
|
NEMA |
- |
- |
- |
- |
- |
|
|
Base Material |
Cotton Cloth |
Glass Fiber Cloth |
||||
|
Resin |
Phenolic |
Epoxy |
Polyamide Imide |
Diphenyl Ether |
Organosilicone |
|
|
Color |
Coffee |
Yellow |
Dark Brown |
Dark Brown |
White |
|
|
|
||||||
|
Properties |
Unit |
Value |
||||
|
Density |
g/m³ |
1.2-1.3 |
1.7-1.8 |
1.7-1.8 |
1.7-1.8 |
1.6-1.75 |
|
Vertical Bending Strength |
MPa |
≥125 |
≥220 |
≥220 |
≥220 |
≥220 |
|
Axial Compressive Strength |
MPa |
≥90 |
≥175 |
≥175 |
≥175 |
≥175 |
|
Parallel Breakdown Voltage (90 ℃ transformer oil) |
Kv |
≥10 |
≥40 |
≥40 |
≥40 |
≥40 |
|
Insulation Resistance after Soaking |
MΩ |
≥5 |
≥1000 |
≥1000 |
≥1000 |
≥1000 |
|
Dielectric Loss Factor (50Hz) |
- |
≤0.03 |
≤0.03 |
≤0.03 |
≤0.03 |
≤0.03 |
|
Water Absorption |
mg/cm2 |
≤5 |
≤3 |
≤3 |
≤3 |
≤3 |
|
Temperature Index |
- |
120 |
155 |
180 |
180 |
180 |
Packaging of Fabric Bakelite Rod
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
