Thickness: 6mm - 150mm

Standard: ASME SA387/ 387M 2008

Grade: GR11CL1, GR12CL2, GR22CL1, GR91CL2

Product Detail | Technical Information | Packaging

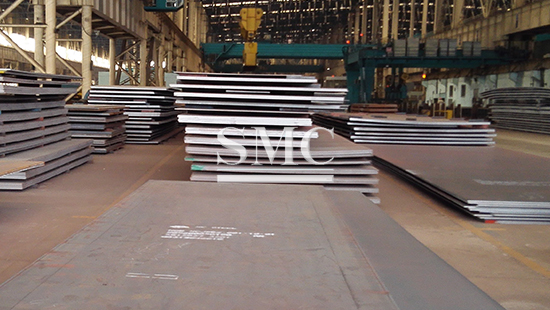

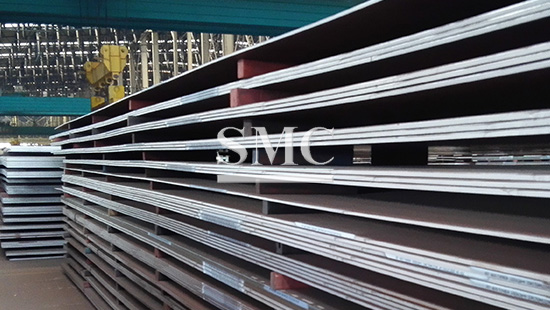

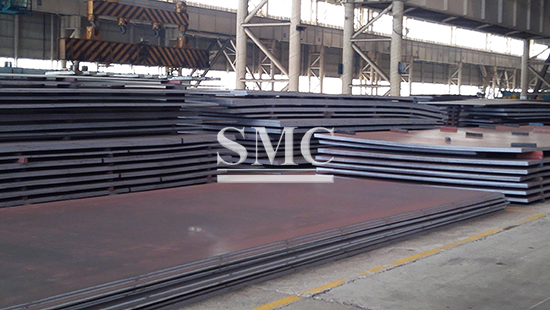

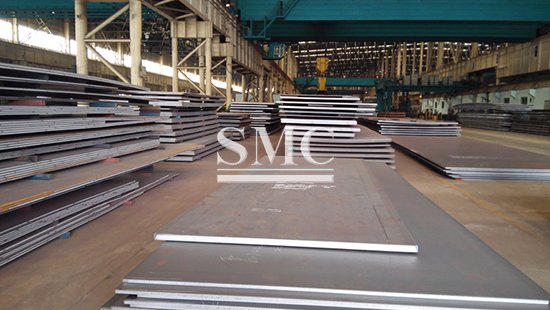

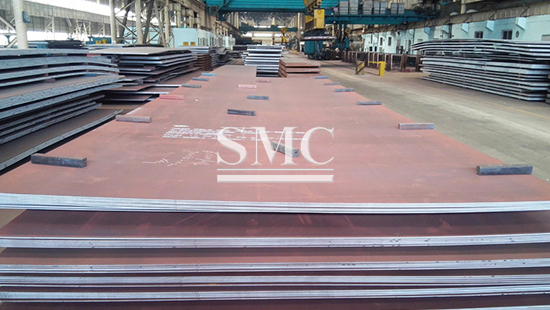

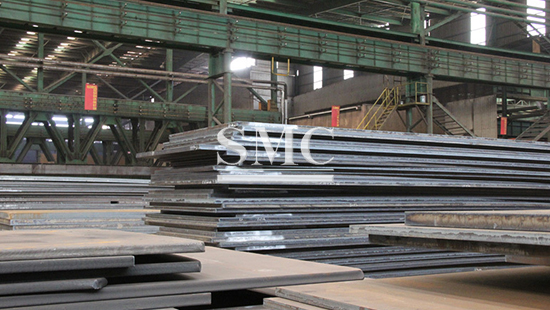

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Heat-resistance Vessel Steel Plate with high quality and reasonable price.

The manufacturing process of SA387 steel plate mainly includes steel-making, continuous casting, rolling, heat treatment etc. Firstly, using electric furnace or converter to make steel, adjusting the chemical composition of the molten steel by controlling the temperature of the furnace and adding an appropriate amount of alloying elements to obtain the required performance. Secondly, pouring the melted steel into the continuous casting machine, and obtain the required steel plate billet. Thirdly, the steel plate blank is processed through multiple rolling processes to achieve the required thickness and dimensional accuracy. During the rolling process, it is necessary to control parameters such as rolling temperature, rolling speed, and rolling force to obtain good steel plate structure and properties. Last, doing heat treatment for the rolled steel plate to eliminate internal stress, improve structure, and enhance performance.

If you want to know more about Heat-resistance Vessel Steel Plate price please feel free to contact us, we will reply you within 24 hours

Width: 1.5m - 3.5mm

Length: 6m - 12m

Tensile strength class: CL1, CL2

Heat treatment: annealed, normalized

Excellent high temperature performance: Suitable for manufacturing pressure vessels and boilers in high-temperature working environments

Corrosion resistance: with a high chromium content, SA387 steel plate can resist the erosion of various chemical media.

Superior mechanical performance: SA387 steel has high yield strength, tensile strength, and impact toughness, which can meet the requirements of various complex working conditions.

1. Oil and Gas Industry

2. Thermal power plant

3. Chemical industry

4. Nuclear energy industry

5. Shipbuilding, marine engineering

Technical Information of Heat-resistance Vessel Steel Plate:

CHEMICAL REQUIREMENTS
	Composition% & Grade
Elements	Grade 2	Grade 12	Grade 11	Grade22	Grade22L	Grade21	Grade 21L	Grade 5	Grade 9	Grade 91
C	0.05-0.21	0.05-0.17	0.05-0.17	0.05-0.15	0.10 max	0.05-0.15	0.10 max	0.15 max	0.15 max	0.00-0.12
Mn	0.55-0.80	0.40-0.65	0.40-0.65	0.30-0.60	0.30-0.60	0.30-0.60	0.30-0.60	0.30-0.60	0.30-0.60	0.30-0.60
P, max	0.035	0.035	0.035	0.035	0.035	0.035	0.035	0.035	0.020	0.020
S, max	0.035	0.035	0.035	0.035	0.035	0.035	0.035	0.030	0.030	0.010
Si	0.15-0.40	0.15-0.40	0.50-0.80	0.50 max	0.50 max	Q.50 max	0.50 max	0.50 max	1.00 max	0.20-0.50
Cr	0.50-0.80	0.80-1.15	1.00-1.50	2.00-2.50	2.00-2.50	2.75-3.25	2.75-3.25	4.00-6.00	8.00-10.00	8.00-9.50
Mo	0.45-0.60	0.45-0.6	0.45-0.65	0.90-1.10	0.90-1.10	0.90-1.10	0.90-1.10	0.45-0.6	0.90-1.10	0.85-1.05
Ni, max										0.40
W									0.04 max	0.18-0.25
Nb										0.06-0.10

Tensile requirements for class 1 plates
	Grade 2 & 12 Grade 11	Grade 11	Grade 22, 21, 5, 9, 21L, 22L
Tensile strength/Mpa	380 ~ 550 415 ~ 585	415 ~ 585	415 ~ 585
Yiled strength/Mpa	≥230 ≥240	≥240	≥205
Elongation in 200mm/%	18	19	/
Elongation in 50mm/%	22	22	18

Tensile requirements for class 2 plates
	Grade 2	Grade 11 Grade 12	Grade 12	Grade 22, 21, 5, 9	Grade 91
Tensile strength/Mpa	485 ~ 620	515 ~ 690 450 ~ 585	450 ~ 585	515 ~ 690 415 ~ 585	585 ~ 760
Yiled strength/Mpa	≥310	≥310 ≥275	≥275	≥310	≥415
Elongation in 200mm/%	18	18	19	/	/
Elongation in 50mm/%	22	22	22	18	18

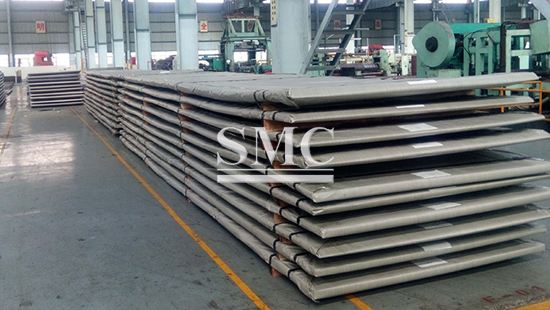

Packaging of Heat-resistance Vessel Steel Plate:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
