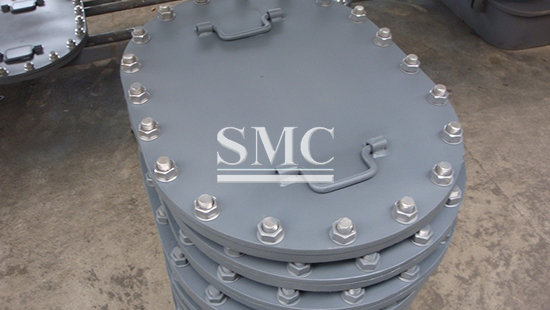

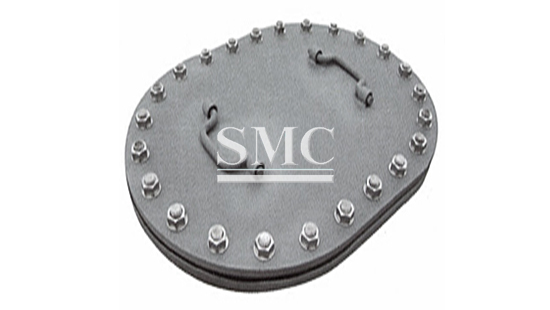

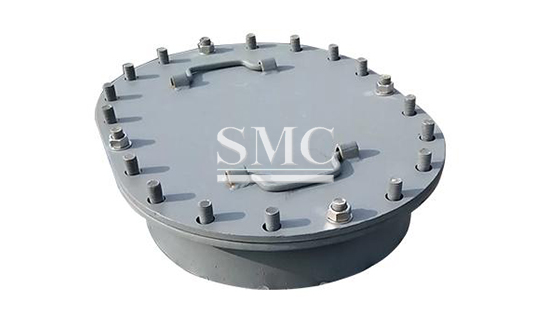

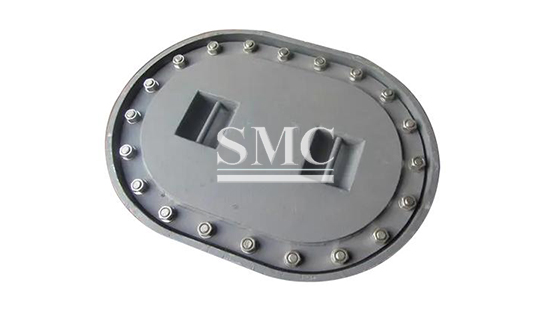

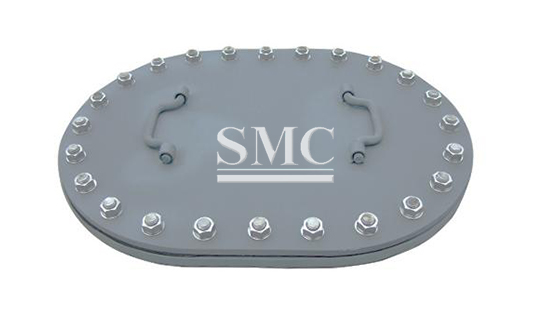

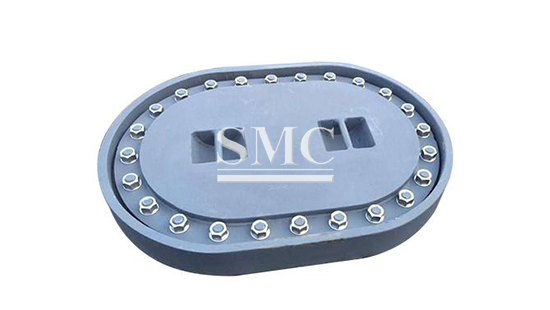

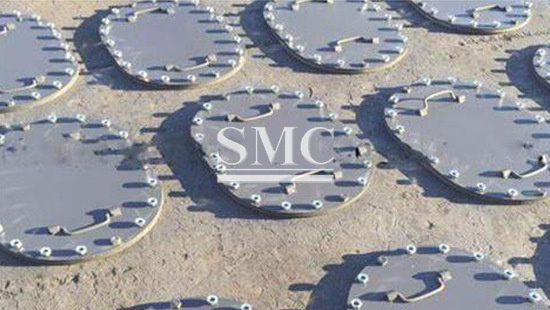

Marine Manhole Cover

Cover thickness: 4 - 20mm

Material: carbon steel, aluminum alloy

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading marine manhole cover manufacturer and supplier.

It’s the general name of the cover plate with sealing properties and the fixed accessories. According to the different tightness requirements of the cover closure place, there are two types of watertight manhole cover and oil-tight manhole cover. The Marine manhole cover can be divided into oblong and round shape according to its shape, among which the oblong manhole cover is widely used.

According to its density can be divided into oil density and water density, the difference between the two lies in the material of sealing gasket, oil density should use oil resistant rubber, water density should use sea resistant water rubber.

The manholes on the roof or wall board such as the liquid chamber and the isolation cabin must be equipped with a manhole cover, and their water tightness must be ensured. Generally, each chamber or cabin is equipped with at least two manholes and arranged diagonally.

If you want to know more about our marine equipment products or marine manhole cover price, please feel free to contact us, we will reply you within 24 hours.

Length*Broad: 450mrn×350mm, 500mm×400mm, 600mm×400mm, 600mm×450mm

Surface treatment: galvanized

Standard: GB/T, ISO

Complies with standard of CB/T 19-2001

Suitable for various ships

Made of steel

Anti-aging and anti-rust

Long service life

Excellent sealing

Technical Information of Marine Manhole Cover:

TYPE A
NOMINAL SIZE	I₁	I₂	I₃	b₁	b₂	b₃	S	FASTENER		WEIGHT (kg)
	mm							DIAMETER	NUMBER
450×350	450	470	570	350	370	470	4	M20	16	23.2
							6			30.8
							8			36.9
							10			45.8
600×400	600	620	720	400	420	520	6		20	48.8
							8			59.2
							10			69.3
							12			79.6
800×600	800	820	920	600	620	720	8		26	52.4
							10			65.8
							12			78.2
							14			90.2

TYPE B
NOMINAL SIZE	I₁	I₂	I₃	b₁	b₂	b₃	s	FASTENER		WEIGHT (kg)
	mm							DIAMETER	NUMBER
450×350	450	470	570	350	370	470	4	M20	16	28.9
							6			33.8
							8			37.2
							10			41.2
600×400	600	620	720	400	420	520	8		20	49.5
							10			55.6
							12			61.2
							14			67.6
800×600	800	820	920	600	620	720	12		26	67.2
							14			75.2
							16			82.8
							18			89.9
800×400 (elliptic)	800	830	930	400	430	530	12		24	56.8
							14			63.2
							16			69.2
							18			76.2

TYPE C
NOMINAL SIZE	I₁	I₂	I₃	b₁	b₂	b₃	S	FASTENER		WEIGHT (kg)
	mm							DIAMETER	NUMBER
450×350	450	470	650	350	470	550	10	M20	16	116.6
							12			121.6
							14			128.6
600×400	600	720	800	400	520	600	10		20	136.1
							12			142.2
							14			149.5
800×600	800	920	1000	600	720	800	12		26	171.5
							14			182.6
							18			206.8
800×400 (elliptic)	800	930	1010	400	530	610	12		24	102.8
							14			118.2
							18			146.2

TYPE D
NOMINAL SIZE	I₁	I₂	I₃	b₁	b₂	b₃	S	FASTENER		WEIGHT (kg)
	mm							DIAMETER	NUMBER
450×350	450	570	620	350	470	520	14	M20	16	73.1
							16			81.6
							18			90.2
600×400	600	720	770	400	520	570	14		20	83.6
							16			88.8
							18			94.8
800×600	800	920	970	600	720	770	14		26	108.4
							18			120.6
							20			149.8
800×400 (elliptic)	800	930	980	400	530	580	14		24	89.4
							16			102.5
							20			127.8

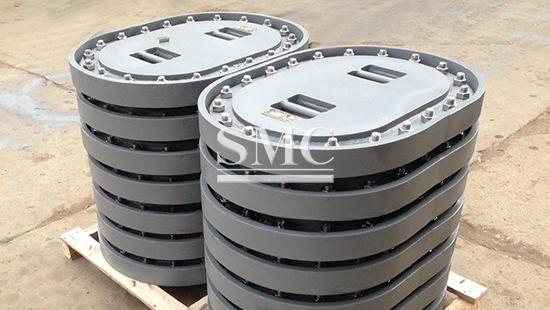

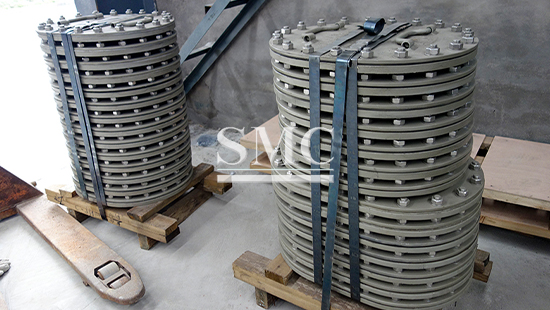

Packaging of Marine Manhole Cover:
