Thickness: 0.08mm-0.18mm
Width: 4.5mm-1000mm
Length: 300m 500m 1000m 2000m

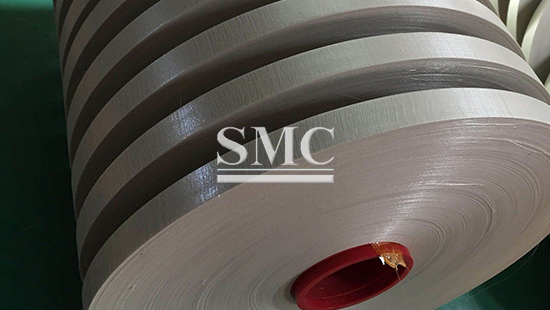

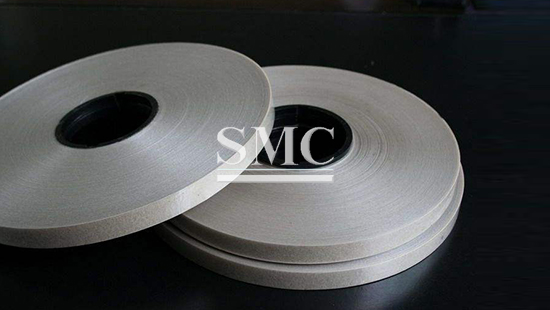

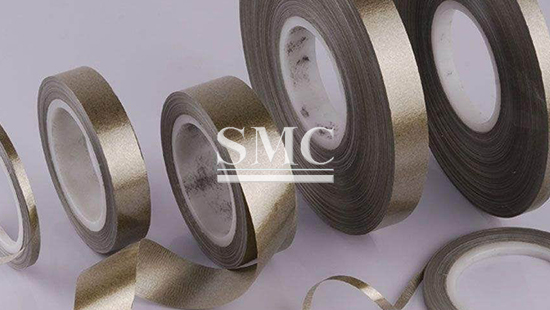

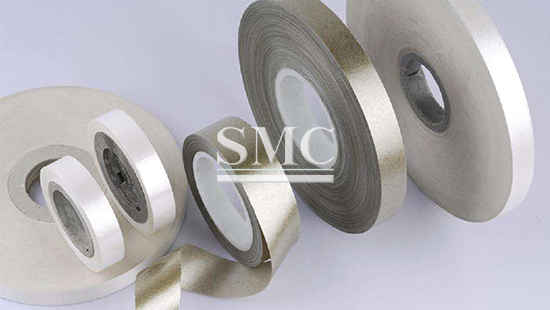

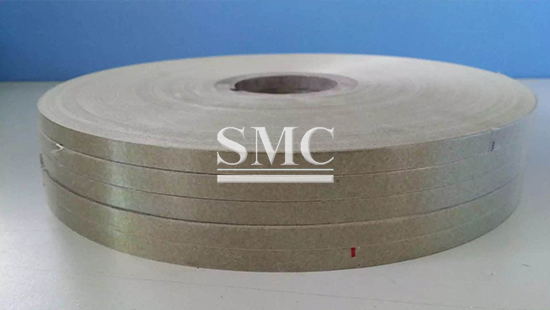

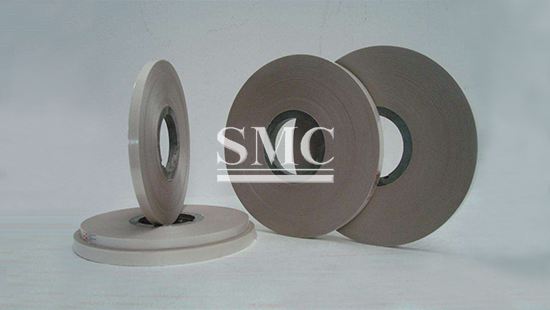

Shanghai Metal Corporation is professional manufacturer of mica tape for fire-resistant wire and cables. Our Mica Tape including Mica Tape in Spool, Phlogopite mica tape, PE mica tape, Synthetic mica tape and Calcined mica tape.
If you have any requirements for mica products, please free to contact us, we will reply you within 24 hours.
Technical Information of Mica Tape:
Glass Backed Phlogopite Mica Tape
ITEM |
UNIT |
R-5461-P-GS/FIRO-PGS |
||||||
|
|
0.08mm |
0.10mm |
0.11mm |
0.12mm |
0.13mm |
0.14mm |
0.15mm |
Appearance |
|
No alien material, no split, scar&hole, no broken folded |
||||||
Length |
m |
500/ 1000/ 2000 |
||||||
Thickness |
mm |
0.08±0.02 |
0.10±0.02 |
0.11±0.02 |
0.12±0.02 |
0.13±0.02 |
0.14±0.02 |
0.15±0.02 |
Weight of Tape |
g/m2 |
105±10 |
130±10 |
145±10 |
170±15 |
180±15 |
215±15 |
225±15 |
Mica Content |
% |
>55 |
>60 |
>63 |
>65 |
>70 |
>70 |
>70 |
Breakdown Voltage |
KV |
>1.0 |
>1.1 |
>1.3 |
>1.5 |
>1.7 |
>1.8 |
>2.0 |
Tensile Strength |
N/15mm |
≥150 |
≥160 |
≥180 |
≥200 |
≥200 |
≥200 |
≥200 |
Binder Content |
% |
13±3 |
13±3 |
13±3 |
13±3 |
13±3 |
13±3 |
13±3 |
Fire Grades |
℃ |
750℃-950℃ |
ITEM |
UNIT |
R-5461-P-FS/FIRO-PFS |
|
|
|
0.10mm |
0.14mm |
Appearance |
|
No alien material, no split, scar&hole, no broken folded |
|
Length |
m |
500/1000/2000 |
|
Thickness |
mm |
0.10±0.02 |
0.14±0.02 |
Weight of Tape |
g/m2 |
160±15 |
215±15 |
Mica Content |
% |
>70 |
>70 |
Breakdown Voltage |
KV |
>6.5 |
>6.5 |
Tensile Strength |
N/15mm |
≥130 |
≥130 |
Binder Content |
% |
10±3 |
10±3 |
Fire Grades |
℃ |
750℃-950℃ |
ITEM |
UNIT |
R-5461-P-GFD |
||
|
|
0.14mm |
0.15mm |
0.16mm |
Appearance |
|
No alien material, no split, scar&hole, no broken folded |
||
Length |
m |
500/ 1000/ 2000 |
||
Thickness |
mm |
0.14 ± 0.03 |
0.15 ± 0.03 |
0.16 ± 0.03 |
Weight of Tape |
g/m2 |
200 ± 20 |
210 ± 20 |
220 ± 20 |
Mica Content |
% |
> 55 |
> 55 |
> 55 |
Breakdown Voltage |
KV |
> 3.5 |
> 3.5 |
> 3.5 |
Tensile Strength |
N/15mm |
≥ 150 |
≥ 150 |
≥ 150 |
Binder Content |
% |
10±3 |
10±3 |
10±3 |
Fire Grades |
℃ |
750℃-950℃ |
ITEM |
UNIT |
R-5461-P-FS/FIRO-PFS |
|
|
|
0.10mm |
0.14mm |
Appearance |
|
No alien material, no split, scar&hole, no broken folded |
|
Length |
m |
500/ 1000/ 2000 |
|
Thickness |
mm |
0.10±0.02 |
0.14±0.02 |
Weight of Tape |
g/m2 |
160±15 |
215±15 |
Mica Content |
% |
>70 |
>70 |
Breakdown Voltage |
KV |
>6.5 |
>6.5 |
Tensile Strength |
N/15mm |
≥130 |
≥130 |
Binder Content |
% |
10±3 |
10±3 |
Fire Grades |
℃ |
750℃-950℃ |
ITEM |
UNIT |
R-5461-S-GS/FIRO-SGS |
|||||
|
|
0.10mm |
0.11mm |
0.12mm |
0.13mm |
0.14mm |
0.15mm |
Appearance |
|
No alien material, no split, scar&hole, no broken folded |
|||||
Length |
m |
500/ 1000/ 2000 |
|||||
Thickness |
mm |
0.10±0.02 |
0.11±0.02 |
0.12±0.02 |
0.13±0.02 |
0.14±0.02 |
0.15±0.02 |
Weight of Tape |
g/m2 |
125±10 |
140±10 |
160±15 |
170±15 |
205±15 |
215±15 |
Mica Content |
% |
>60 |
>65 |
>65 |
>65 |
>70 |
>70 |
Breakdown Voltage |
KV |
>1.0 |
>1.2 |
>1.4 |
>1.6 |
>1.7 |
>1.9 |
Tensile Strength |
N/15mm |
≥160 |
≥180 |
≥200 |
≥200 |
≥200 |
≥200 |
Binder Content |
% |
13±3 |
13±3 |
13±3 |
13±3 |
13±3 |
13±3 |
Fire Grades |
℃ |
950℃-1050℃ |
ITEM |
UNIT |
R-5461-CM-GS |
||
|
|
0.12mm |
0.13mm |
0.14mm |
Appearance |
|
No alien material, no split , scar&hole, no broken folded |
||
Length |
m |
500/ 1000/ 2000 |
||
Thickness |
mm |
0.12±0.02 |
0.13±0.02 |
0.14±0.02 |
Weight of Tape |
g/m2 |
150±15 |
160±15 |
170±15 |
Mica Content |
% |
>55 |
>60 |
>60 |
Breakdown Voltage |
KV |
>1.8 |
>2.0 |
>2.0 |
Tensile Strength |
N/15mm |
≥150 |
≥150 |
≥150 |
Binder Content |
% |
20±3 |
20±3 |
20±3 |
Fire Grades |
℃ |
900℃-1050℃ |
Packaging of Mica Tape:
One pack is usually at 50kg, sealed with plastic film and packed in carton. The fumigation-free pallet shall be used when exporting. Each pallet contains <1000KG, or protected by metal drum.
