Electrical Cable

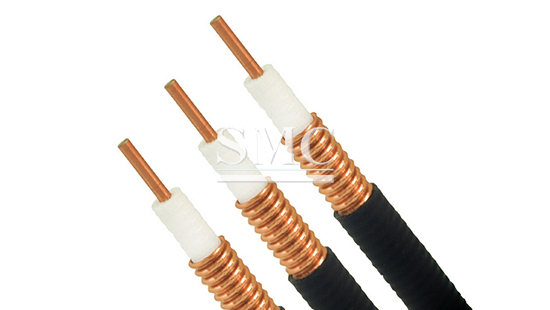

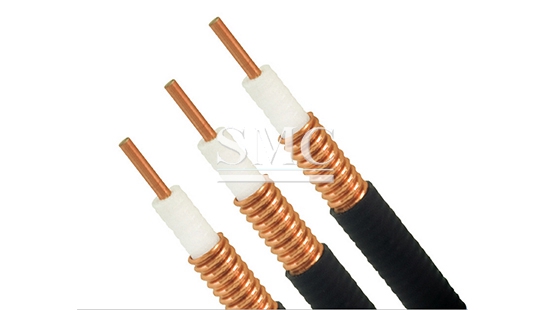

Radio Frequency Coaxial Cable

Quality Control Standard: IEC61196-4

Product Detail | Technical Information | Packaging

Product Detail

Standard of Radio Frequency Coaxial Cable: 1/2", 7/8", 5/4", 13/8"

Grade of Radio Frequency Coaxial Cable:

1: Conductor corrugated copper tube

2: Insulation PE

3: Outer sheath PE /LSOH

Color of Radio Frequency Coaxial Cable: black

Electrical Data of Radio Frequency Coaxial Cable :

Item	Specification	Remarks
Characteristic Impedance	50+/-1 Ω
Velocity	88%
Min. Insulation Resistance	5000MΩ。KM	DC 500 V*1 minute
Capacitance	76Pf/m
Dielectric strength	DC 6000V	1 minute
Peak power rating	302KW
RF Peak voltage	5600V
VSWR typical value	1.08	800M~2400MHz

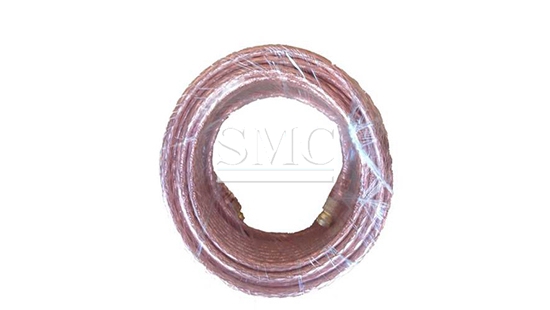

Packing of Radio Frequency Coaxial Cable:

A Cable shall be wound on wooden or iron wooden or iron drums. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer’s requirement.
