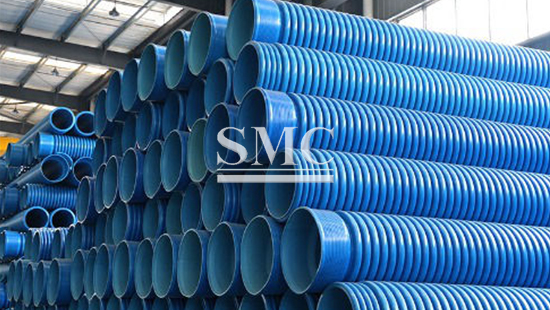

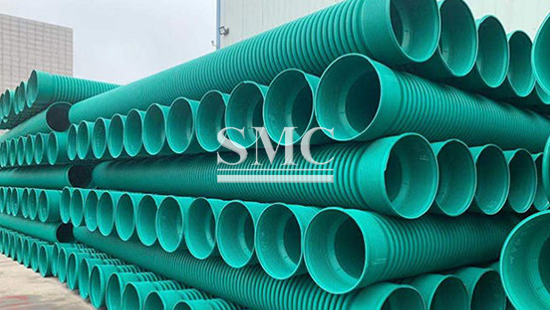

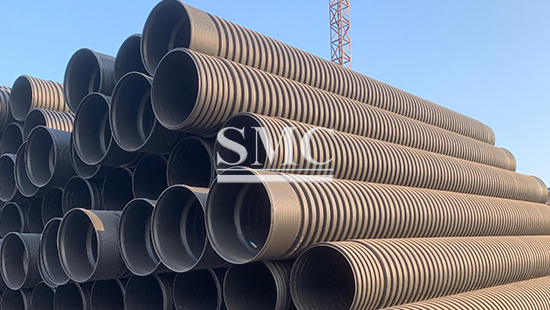

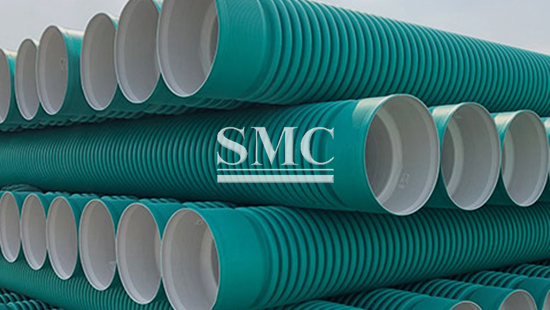

MUHDPE Alloy Pipe

Material: Nano modified high-density polyethylene

Specification: 200-2000mm

Length: 6m or as required

Application: Used for drainage system, industrial wastewater discharge

Advantage: High strength and rigidity, aging resistance, corrosion resistance, smooth inner wall, convenient construction

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of MUHDPE Alloy Pipe with high quality and reasonable price.

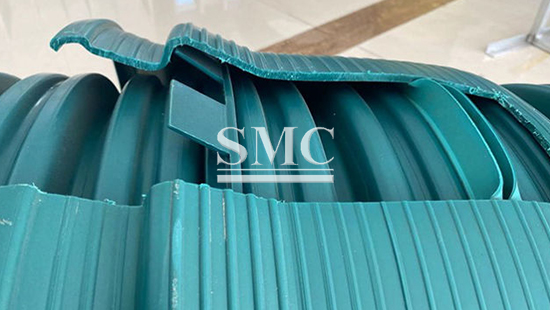

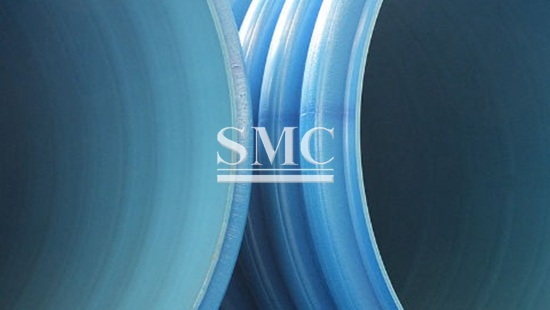

Nano modified high-density polyethylene alloy pipe is a special type of pipe made mainly from nano modified high-density polyethylene, with smooth inner walls, corrugated outer walls, and hollow inner and outer walls. The pipeline has a beautiful appearance, strong pressure resistance, low water resistance, and is resistant to acid and alkali corrosion. It is easy to install and transport, with significant advantages in energy, material, and water conservation.

If you want to know more about MUHDPE Alloy Pipe price please feel free to contact us, we will reply you within 24 hours

Material: Nano modified high-density polyethylene

Surface Treatment: Special anti-aging additives

Dimensions: Customizable to fit various pole diameters and load requirements

Load Capacity: The ring stiffness can reach SN20 to SN24

The strength and rigidity of the pipe have been significantly improved, and it can withstand greater external pressure and impact

Corrosion resistance and aging resistance enable pipes to maintain stable performance and extend their service life during long-term use

The inner wall of the pipe is smooth, with low roughness and low fluid resistance, which is beneficial for increasing water delivery capacity and reducing project costs

The pipe is lightweight, easy to transport and install, and can greatly reduce construction costs and time costs

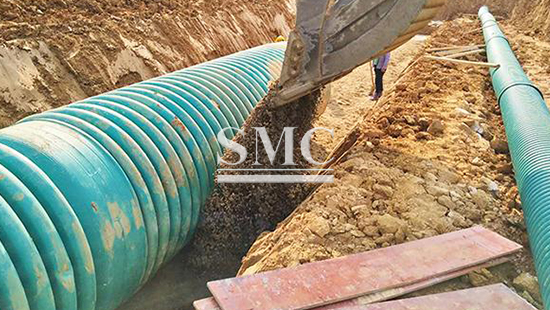

Municipal engineering: used for road sewage and rainwater discharge pipeline engineering

Industrial field: used for industrial wastewater discharge, chemical pipelines and other occasions that require corrosion resistance and pressure resistance

Agricultural irrigation and drainage: as a pipeline material for irrigation and drainage systems in farmland

Technical Information of MUHDPE Alloy Pipe:

Nominal outer diameterDN (mm)	Minimum Average Inner Diameterd (mm)	Minimum joints layer thickness e(mm)	Jointing length A(mm)	Minimum inner layer thickness e(mm)
200mm	195mm	2.0mm	60mm	2.5mm
300mm	294mm	2.5mm	69mm	3.0mm
400mm	392mm	3.0mm	77mm	3.5mm
500mm	490mm	3.5mm	85mm	4.0mm
600mm	588mm	4.0mm	96mm	4.0mm
800mm	785mm	4.5mm	118mm	5.5mm
1000mm	985mm	6.0mm	140mm	6.0mm
1200mm	1185mm	8.0mm	162mm	6.0mm
1500mm	1485mm	8.0mm	178mm	6.0mm
1800mm	1785mm	14.0mm	228mm	6.0mm
2000mm	1985mm	16.0mm	240mm	6.0mm

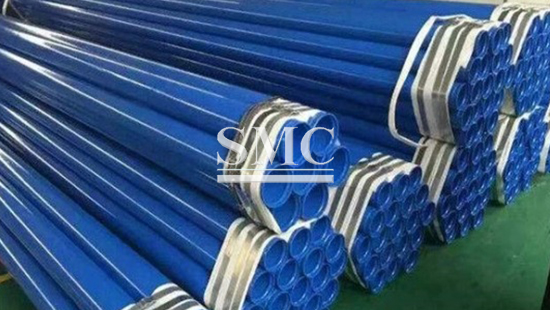

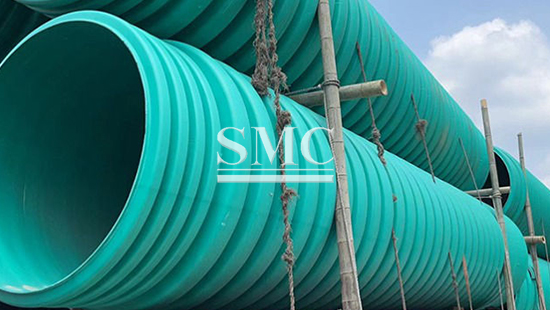

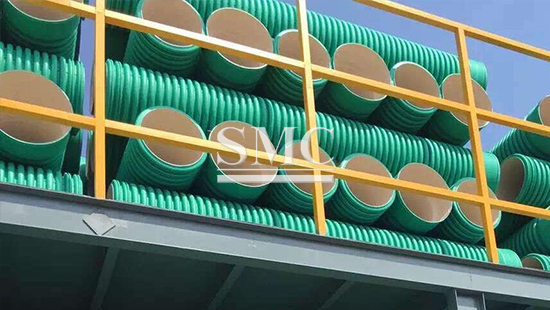

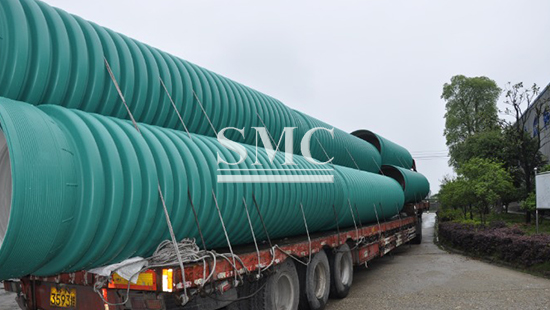

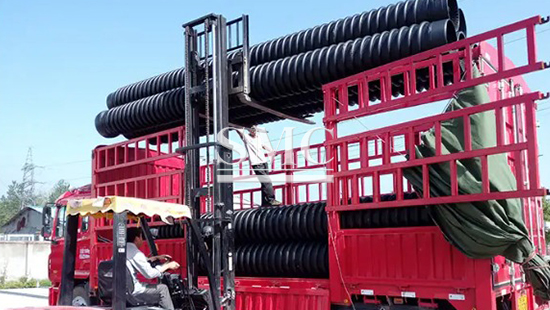

Packaging of MUHDPE Alloy Pipe:

Shanghai Metal Group Corporation ensures that all nano modified high-density polyethylene alloy pipes are packaged and labeled in accordance with industry standards and customer requirements. We take great care to protect the nano modified high-density polyethylene alloy pipes during transportation and storage, using sturdy packaging materials and clear labels for easy identification. Customized packaging solutions can also be provided upon request.

1) Shanghai Pipe Standard

2) Customization
