Diameter: 3 - 480mm or customized

Length: Customized

Products Type: Hastelloy, Inconel, Incoloy, Monel Alloy, High-Temp Alloy, Kovar Alloy Soft Magnetic Alloy and etc.

Product Detail | Technical Information | Packaging | More

Product Detail1

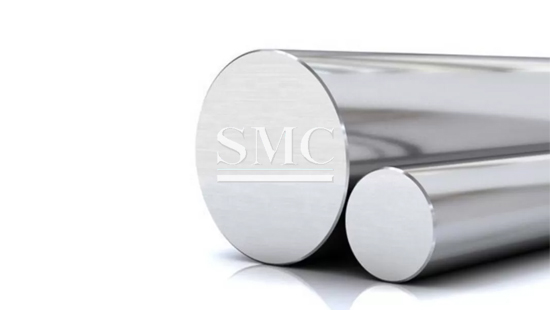

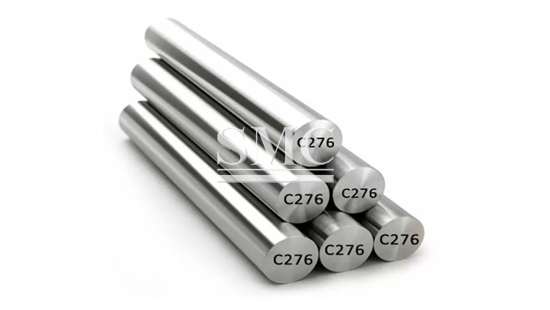

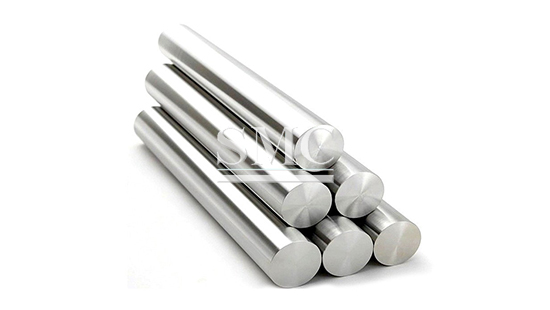

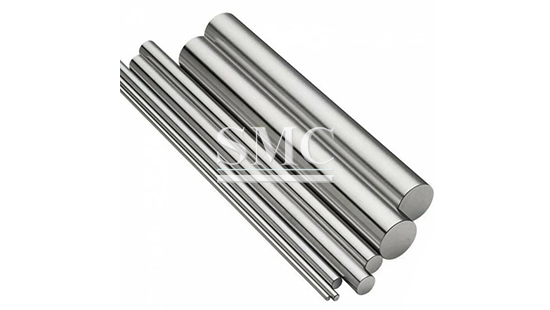

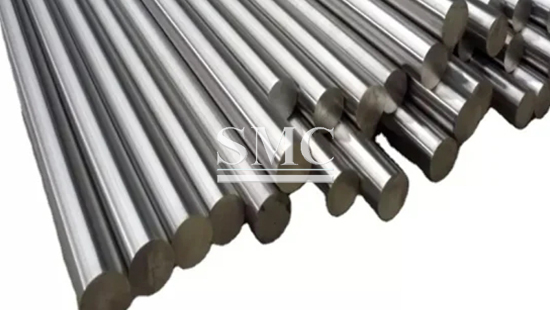

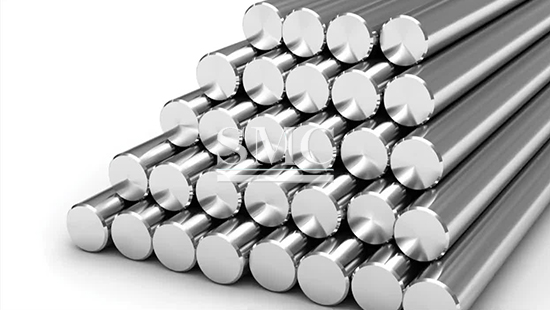

Shanghai Metal Corporation is a leading Nickel alloy rod manufacturer and supplier.

Nickel alloy rod are used in parts, instrument manufacturing and machine manufacturing for special purposes, rocket technology and equipment, atomic reactor, alkaline battery, porous filter, catalyst, anti-corrosion electroplating layer of parts and semi-finished products, etc.

If you want to know more about our Nickel alloy products or Nickel alloy rod price please feel free to contact us, we will reply you within 24 hours.

Diameter: 3 - 480mm or customized
Length: Customized
Products Type: Hastelloy, Inconel, Incoloy, Monel Alloy, High-Temp Alloy, Kovar Alloy Soft Magnetic Alloy and etc.

Hastelloy：Hastelloy C 276, Hastelloy C 22, Hastelloy C 2000, Hastelloy B 3, etc.
Inconel：Inconel 600, Inconel 601, Inconel 625, Inconel X-750, etc.
Incoloy：Incoloy 800, Incoloy 825, Incoloy 925, Incoloy 800H, etc.
High-Temp Alloy：GH2132, GH3030, GH3039, GH3128, etc.
Monel Alloy：Monel 400, Monel K-500, etc.
Kovar Alloy：4j29, 4j38, 4j50, 4j80, etc.
Soft Magnetic Alloy：1i85, 1j36, 190, 1i76, etc

High temperature components such as turbine blades, guide vanes, turbine disks, high pressure
Pulp and paper industry such as boiled and bleached containers.
Scrubbers,reheaters,wet air fans in FDG systems.
Equipment and originals working in acid gases
Reactors for acetic acid and acidic products

Product Types	Grades	Physical properties		Mechanical properties
		Density （g/cm³）	Melting (Point/℃）	Yield strength		Tensile strength	Elongation A5%	Hardness
		Density （g/cm³）	Melting (Point/℃）	RP 0.2MPa	RP 0.1MPa	Tensile strength	Elongation A5%	Hardness
Hastelloy	Hastelloy C276	8.9	1325-1370	>283		730	40	HRB≤100
	Hastelloy B3	9.22	1370-1418	350		760	40
	Hastelloy X	8.3	1260-1355	276		690	35	HRB≤240
Inconel	Inconel 600	8.4	1370-1430		245	550	30	HRB≤179
	Inconel 625	8.4	1290-1350		345	760	30	HRB≤220
	Inconel 718	8.24	1260-1320		550	965	30	HRB≤363
Incoloy	Incoloy 825	8.14	1370-1400		550	220	30	HRB≤200
High-Temp Alloy	GH3030	8.4	1374-1420	650		785	35
High-Temp Alloy	GH4169	8.24	1260-1320	550		965	30	HRB≤363

Packaging of Nickel alloy rod:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Q1.What information do you need for a custom quotation?

A: Please provide the exact material grade (e.g., Inconel 625, Monel 400), diameter, length, surface finish requirement, order quantity, and your preferred trade terms.

Q2.What is the MOQ and production lead time?

A: The minimum order quantity is typically 500kg for standard grades. For custom forgings, the MOQ is 1000kg. Production lead time ranges from 15 to 40 working days depending on the specific grade and process.

Q3.What is the difference between Inconel and Hastelloy rods?

A: Inconel alloys are primarily optimized for exceptional oxidation resistance and mechanical strength at extremely high temperatures. Hastelloy alloys are highly alloyed with molybdenum and are specifically designed to withstand severe localized chemical corrosion (like pitting and crevice corrosion) in aggressive acid environments.

Q4.Can you provide customized lengths or cut-to-size services?

A: Yes, we utilize precision band saws and CNC cutting equipment to provide custom cut-to-length

services, ensuring exact dimensions according to your manufacturing requirements.

Q5.What quality standards and certifications does the product meet?

A: Our nickel alloy rods are strictly manufactured according to international standards such as ASTM,

ASME, DIN, and EN. We provide an MTC (Mill Test Certificate) EN10204 3.1 with every shipment.
