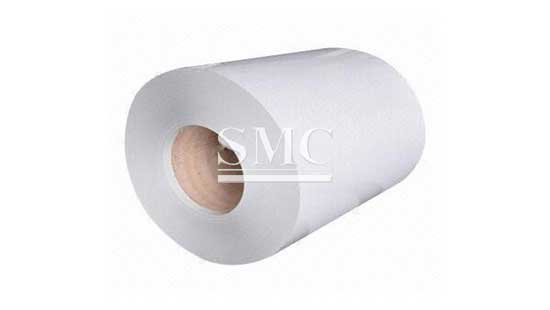

Specifications of PCM Steel:
1) Thickness: 0.3mm - 1.2mm
2) Zinc Coating: 40g/m² - 150g/m²
3) Painting Thickness: 25mic/5 - 10mic
4) Standard Width: 914mm, 1000mm, 1200mm, 1270mm or by request
5) Coil weight: by request
6) ID: 508mm/610mm
7) Color: RAL, or other series
8) Coating sustains 180 degree bending

Selected equipment is indispensable for superior quality. Shanghai Metal cold rolling mill equipment

was imported from SMS Demag of Germany and from Italy. So rare were any domestic companies to

own so worldly advanced processing facilities. The pickling, acid regeneration, and hot-dip galvanizing

lines matching the cold mill are also purchased from well-known domestic companies. These advanced

production equipments have surely laid a solid foundation for producing superior products.

Specifications of PCM Steel:

1) Base metal: SPCC/SGCC/SECC

2) Color various option: Back coat thickness: 5μm - 8μm/Top coat thickness: 15μm - 20μm

3) Length: below 5000mm

4) Width: below 1360mm

5) Type: Coil

6) Grade: 200 Series

7) Standard: AISI, ASTM, BS, DIN, GB, JIS, Other

8) Thickness: 0.3m - 1.2m

We produce the widest range of prepainted steel, Pre-coated Metal Sheet , laminated steel, laminated aluminum, pre-coated steel, and anti-fingerprint stainless steel. Based in China, we are one of the largest laminated metal suppliers in Asia. We can customize our products to meet customers' specifications and requirements. We have 3 production line. Two are under production, and new one is under construction.We source our substrates from the high quality suppliers in the region, and our film from Korean and China.

Refrigerator Side Panels  is produced by coating 2 or more layers paint applied on Cold-Rolled (CR), Galvanized Steel (GI), Electrolytic Galvanized Steel (EGI), Aluminum (AL) and Stainless (SUS) base-steel, and then cut into sheets. The base metal could be 0.3mm - 1.2mm thickness. It is also called prepainted steel, pre coated metal sheet.

Our products color prepainted gives better corrosion protection. So it becomes one of the most sought-after elevator cab interiors, home appliances, electronics casing, interior paneling, pre-fabricated bathroom wall, office partition, ceiling panel, etc. We have hundreds of films finish and color to choose from and we can also work with our customers for any specific requirements. We have our own design center, and could develope the new design according to your market and idea. We are your one stop solution.

Features of PCM Steel:

1) Corrosion resistance

2) Formability

3) Decoration

4) Excellent workability

5) Various color and pattern

Technical Information:

1) Base Metal: CR, EGI, HGI, AL, Stainless Steel/As per customer's request

2) Thickness of Base Metal: 0.3mm - 1.2mm

3) Painting Thickness: 18μm - 30μm

4) Surface Treatment: Unoil and chemical treatment

5) Surface Protection: PE protective film(option)

6) Color Ral no. /samples.

7) Surface Treatment: degreasing and chromate treatment

8) Supplying Status: Sheet: Width≤1360mm,Length≤5000mm

9) Coil: Width≤1360mm,N.W≤5T,Inner Diameter: φ510mm

Note: upon customer's special requirements with respect to thickness, width and colors.

Manufacturing of PCM Steel

Pay off reel → Double cut shear → Welder-notcher → Entry accumulator → Pre-cleaning section → Furnace → Hot bridle → Zinc pot → Air knife → After cooler → Water quench → Dryer → Skin pass mill → Dryer → Tension leveler → Dryer → Chemical coater → Chemical oven → Cooler → Exit accumulator → Oiler → Exit shear → Tension reel

Packaging of PCM Steel

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of PCM Steel:

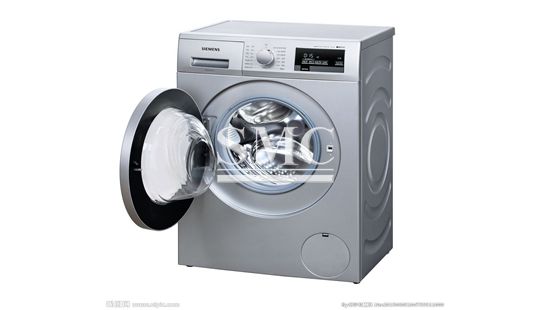

1) Household Appliance: Refrigerator shutter &side panels, Rice Cooker, Washer, Microwave ovens, Freezers, Air conditioners, Water Heaters, Sterilization Cabinets, Range Hoods, Computer panels, DVD/DVB panels, TV back panel, etc.

2) Building Material: Fireproof Door &Kitchen Cabinet ,Ceiling, Sanitary Unit, Elevator etc.

3) Transportation: Car, Ship, Trains, Aircraft Equipment

4) Education and Health Field: Electronic Writing boards, Projection Screens, Clean Operating Rooms, etc.
