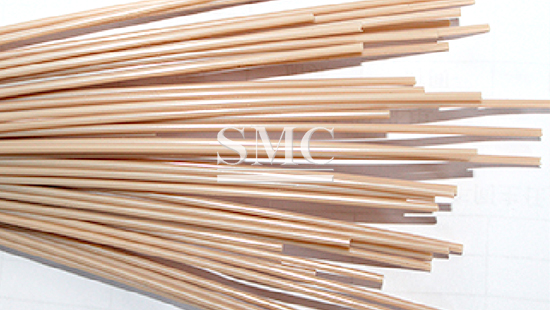

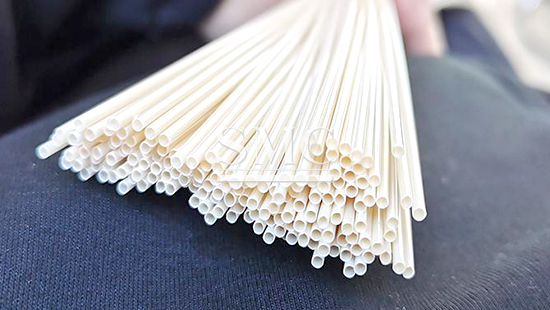

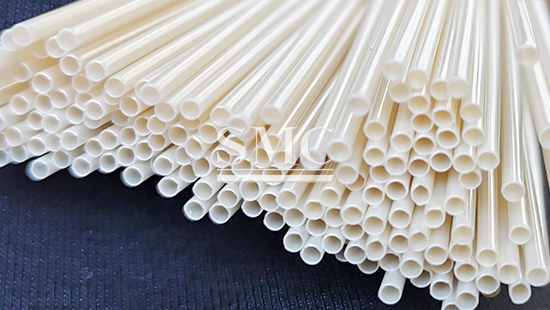

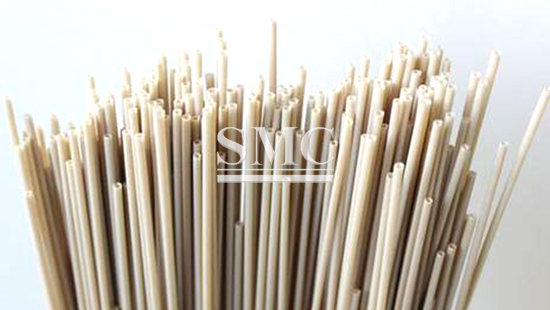

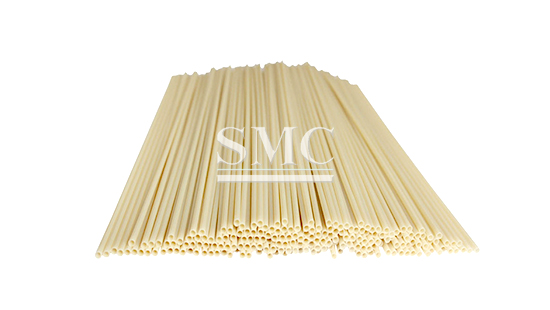

PEEK Capillary Tubing
OD*ID: 0.5-22.6*0.3-22.1
Length: Customized
Color: Grey
Shanghai Metal Corporation is a leading PEEK capillary tubing manufacturer and supplier.
PEEK capillary tubes usually refers to a thin tube with an internal diameter equal to or less than 1 mm. It has low coefficient of friction, and withstands the most rigorous physical and mechanical stresses. High precision PEEK tubes are mainly used in HPLC and medical industry. SMC PEEK capillary tubes can ensure OD & ID ±0.03mm tolerance. All PEEK tubing is extruded in SMC GMP standard clean room. We also supply peek tubes in different colors, and some special modified material is available too.
If you want to know more about our PEEK products or PEEK capillary tubing price please feel free to contact us, we will reply you within 24 hours.
Technical Information of PEEK capillary tubing:
|
No |
ODxID(mm) |
No2 |
ODxID(mm)3 |
|
1 |
0.5X0.3-0.4 |
20 |
2.2X0.3-2.1 |
|
2 |
0.6X0.3-0.5 |
21 |
2.3X0.3-2.2 |
|
3 |
0.7X0.3-0.6 |
22 |
2.4X0.3-2.3 |
|
4 |
0.8X0.3-0.7 |
23 |
2.5X0.3-2.4 |
|
5 |
1/32inX0.25/0.5 |
24 |
2.6X0.3-2.5 |
|
6 |
0.9X0.3-0.8 |
25 |
2.7X0.3-2.6 |
|
7 |
1.0X0.3-0.9 |
26 |
2.8X0.3-2.7 |
|
8 |
1.1X0.3-1.0 |
27 |
2.9X0.3-2.8 |
|
9 |
1.2X0.3-1.1 |
28 |
3.0X0.3-2.9 |
|
10 |
1.3X0.3-1.2 |
29 |
1/8inX1/16in/0.5/0.75/1.0/1.2/2.0/2.2 |
|
11 |
1.4X0.3-1.3 |
30 |
3.2X0.3-3.0 |
|
12 |
1.5X0.3-1.4 |
31 |
4.95X4.15/4.25/4.35/4.55 |
|
13 |
1/16inX0.1/0.13/0.25/0.38/0.5/0.75/1.0/1.2 |
32 |
9.52X8.92 |
|
14 |
1.6X0.3-1.5 |
33 |
9.86X9.26 |
|
15 |
1.7X0.3-1.6 |
34 |
10X8.7 |
|
16 |
1.8X0.3-1.7 |
35 |
12X10/11 |
|
17 |
1.9X0.3-1.8 |
36 |
13X12 |
|
18 |
2.0X0.3-1.9 |
37 |
17.1X16.1 |
|
19 |
2.2X0.3-2.1 |
38 |
22.6X22.1 |

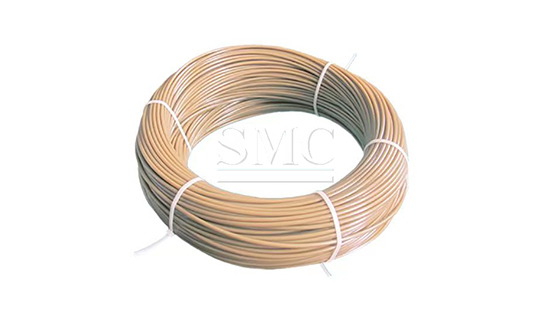

Packaging of PEEK Capillary Tube:
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
