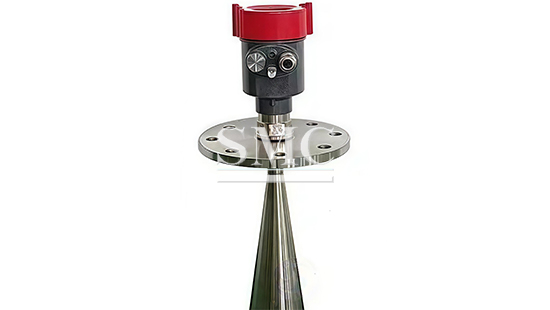

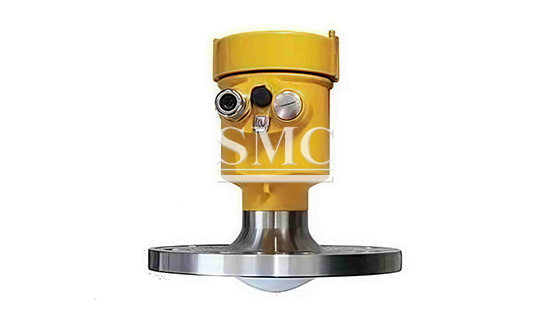

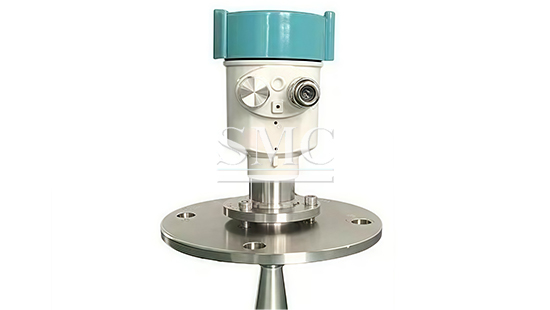

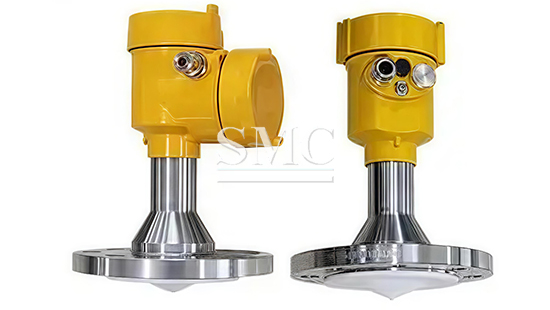

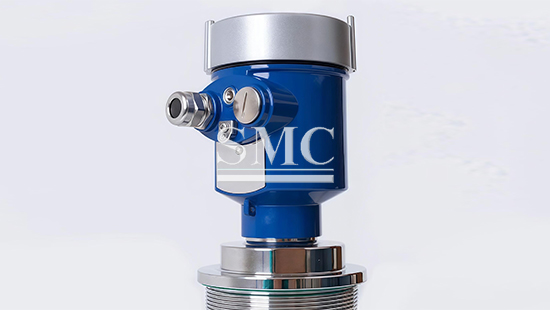

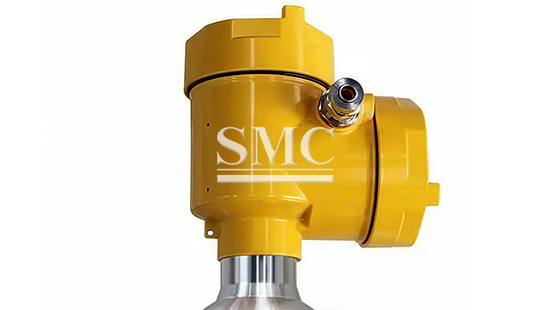

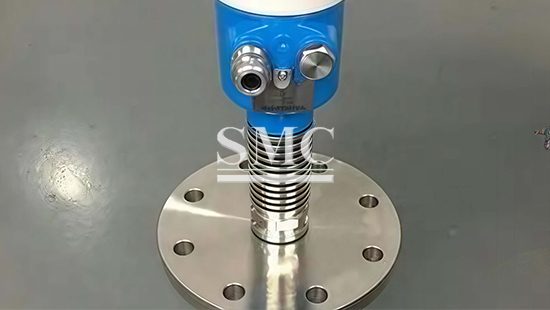

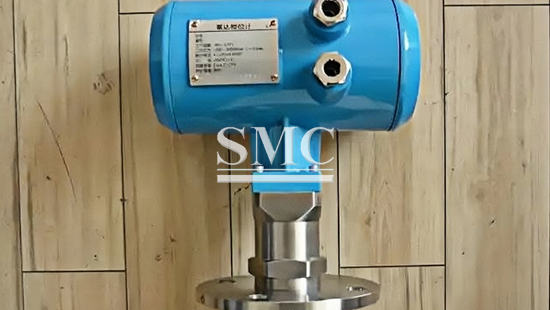

Radar Level Gauge
Model: YC-32A, YC-32B,Y C-32C, YC-32D, YC-32E, YC-32F, YC-32G, YC-32H, YC-32I, YC-32J, YC-32K, YC-32L, YC-32M
Measuring range: 0-20mm
Pressure: 2.5MPa
Operating voltage: 24V DC
Shanghai Metal Corporation is a professional manufacturer and supplier of Radar Level Gauge with high quality and reasonable price.
Radar level meter is a general-purpose radar level meter. It is a measuring instrument based on the time travel principle. Radar waves run at the speed of light, and the running time can be converted into a level signal through electronic components. The probe emits a high-frequency pulse that propagates at the speed of light in space. When the pulse encounters the surface of the material, it is reflected back and received by the receiver in the instrument, and the distance signal is converted into a level signal.
Radar level gauge are commonly used in industry. If you want to know more about Radar Level Gauge price please feel free to contact us, we will reply you within 24 hours
Technical Information of Radar Level Gauge:
|
Technical Parameters |
|
|
Measuring range |
0-20m |
|
Operating voltage |
24V DC |
|
Accuracy level |
±5mm |
|
Output signal |
4...20mA/HART (two-wire/four-wire) RS485/Modbus can be customized |
|
Protection level |
IP65, IP67, IP68, customizable |
|
Process connection |
Thread, flange |
|
Operating temperature |
-40...200 ℃ |
|
Electrical Connections |
M20*1.5 internal thread, customizable |
|
Withstand voltage level |
-0.1...2.5Mpa |
|
Explosion-proof grade |
Exia I1 CT4;Exd Il CT6 |
|
Frequency range |
26GHz/80GHz |
Packaging of Radar Level Gauge:
Fill the carton with cushioning material for packaging
