Material: bearing steel
Core Components: gear
Warranty: 1 year
Shanghai Metal Corporation is a professional manufacturer and supplier of Rail Brake with high quality and reasonable price.

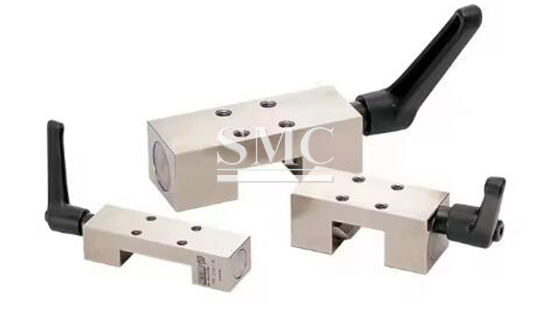

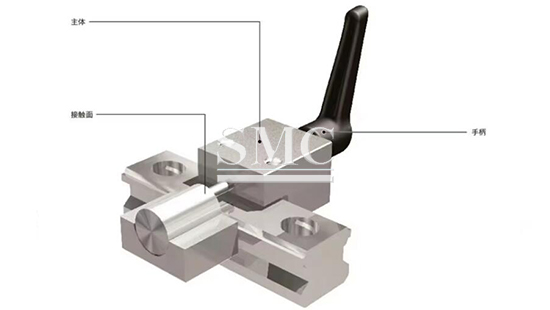

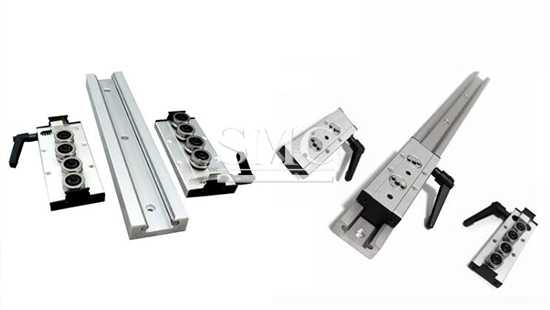

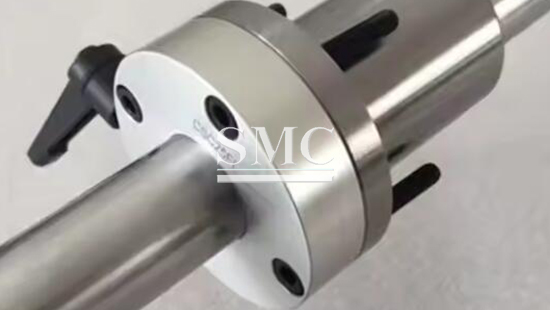

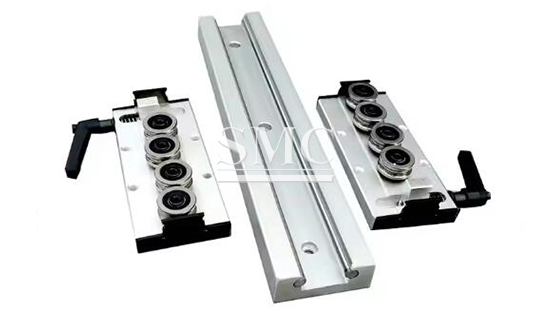

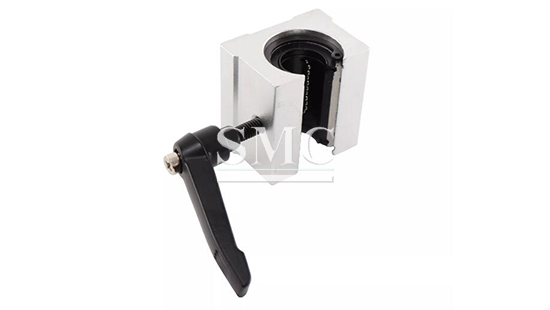

Rail brake is a kind of efficient guide clamp. The clamp can directly clamp linear guides (such as LM guides) or optical shafts, and has a variety of application scenarios. It not only prevents position deviation during pressurization or power failure, but also prevents falling, moving, and turning during an emergency stop or power failure. In addition, it can effectively reduce the vibration and vibration during processing, improve the rigidity of the device, and even be used as an emergency brake (only with brake function).
If you want to know more about Rail Brake price please feel free to contact us, we will reply you within 24 hours
Technical Information of Rail Brake:

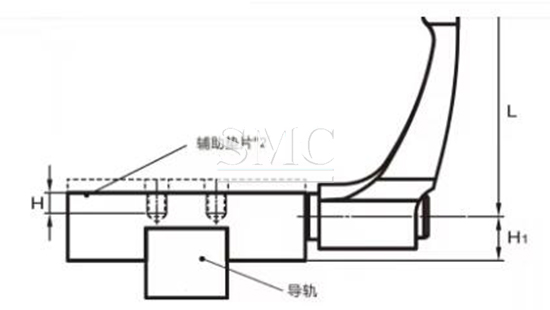

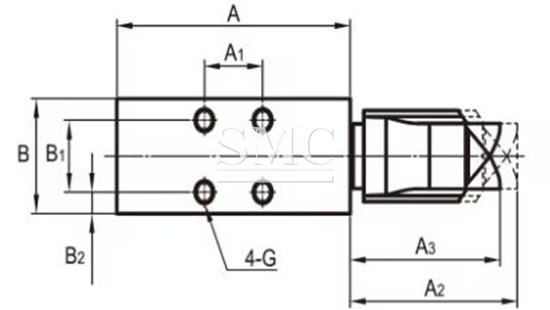

Technical Reference |
|||
G |
Tightening Torque |
Clamp Force*1 |
Weight |
M4 |
5 |
550 |
0.13 |
M5 |
7 |
750 |
0.25 |
M6 |
7 |
750 |
0.42 |
M6 |
15 |
1500 |
0.9 |
M8 |
15 |
1500 |
1.2 |
M10 |
23 |
2000 |
1.82 |
