Grade: 304, 304L, 316, 316L, 310S, 321, etc.

Width: customization

Length: cut-to-length; 30M/Roll, etc.

Packing detail: Pallet, Crate

Product Detail | Technical Information

Product Detail

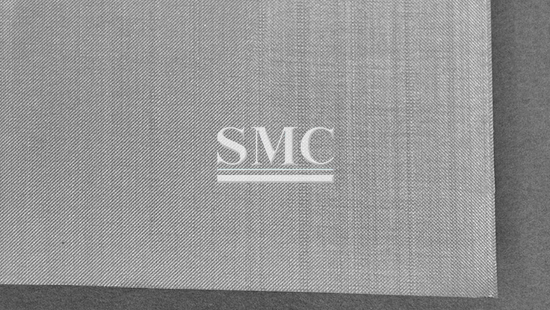

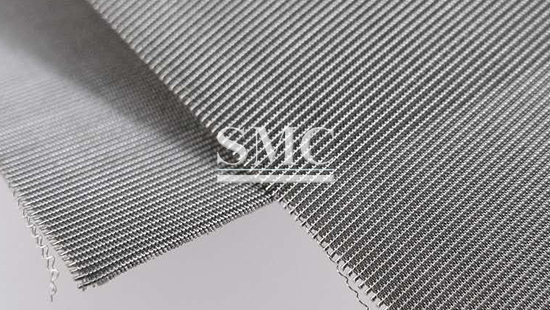

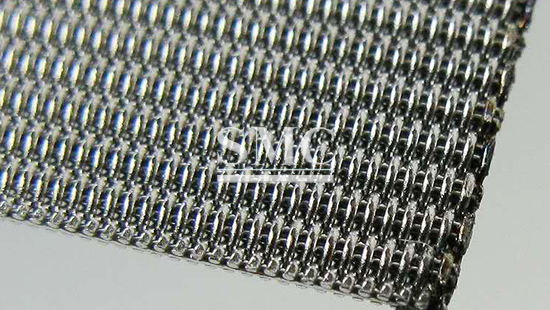

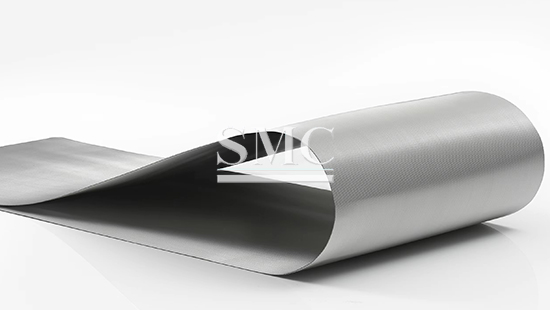

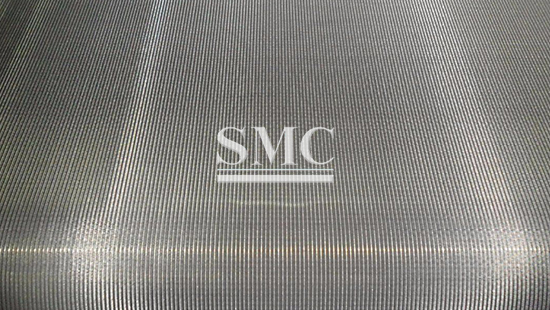

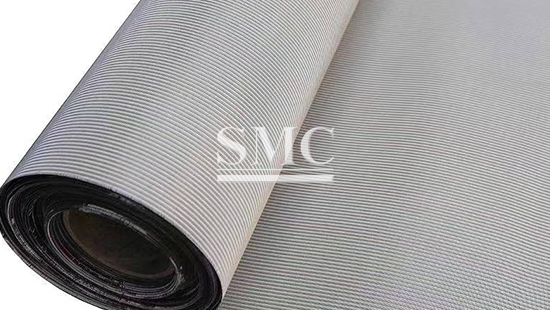

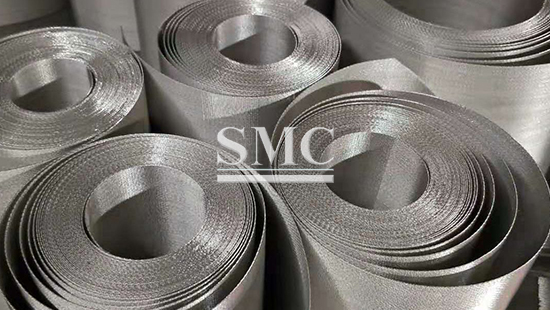

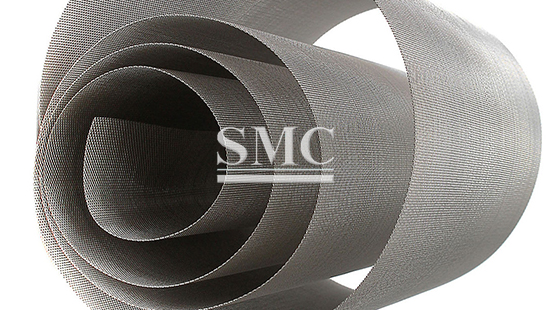

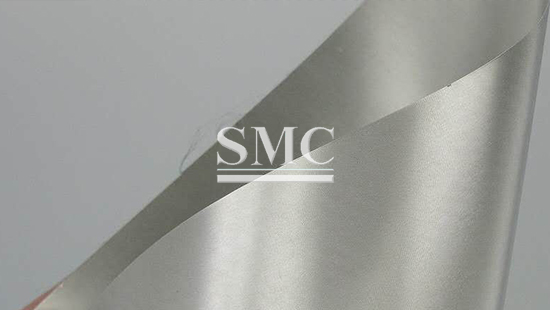

Stainless Steel Dutch Weave Mesh is manufactured from stainless steel wire. Stainless Steel Dutch Weave is a uniquely crafted filter screen, distinguished by a specialized weaving process that creates a tightly woven structure.

Different from plain weave woven wire mesh, stainless steel dutch weave mesh has different diameter in the weft and warp directions.

Dutch weave wire mesh can be woven in both plain dutch weave and twill dutch weave. They have their own characteristics, which can be used in different applications. Plain dutch weave mesh is the combination of dutch weave and plain weave. It has two sizes of wire diameters like the dutch weave. Twill dutch woven wire mesh is the combination of dutch weave and twill weave.

Grade: 304, 304L, 316, 316L, 310S, 321, etc.
Width: customization
Length: cut-to-length; 30M/Roll, etc.
Packing detail: Pallet, Crate

Precision screening and oil filtering
Diverse Industrial Application
Greater mechanical stability
Coarser wire for higher tensile strength
Better filtering performance
Much more stable structure

Precision Screening and Oil Filtering
Filtration and Separation
Diverse Industrial Applications
Petrochemical & Pharmaceutical
Mining & Wastage water

Specification of Plain Dutch Weave Mesh:
Plain Dutch Weave Spec.
Weaving method	Warp Count	Weft Count	Warp Wire (mm)	Weft Wire (mm)	Norminal (micron)
PDW	8	45	0.8mm	0.6mm	310
PDW	8	85	0.43mm	0.32mm	250
PDW	8	85	0.45mm	0.28mm	249
PDW	12	64	0.56mm	0.4mm	211
PDW	12	64	0.58mm	0.4mm	300
PDW	12	72	0.4mm	0.38mm	300
PDW	14	100	0.4mm	0.28mm	182
PDW	16	80	0.43mm	0.34mm	200
PDW	16	100	0.4mm	0.26mm	160
PDW	20	110	0.355mm	0.25mm	126
PDW	20	150	0.45mm	0.355mm	101
PDW	24	110	0.355mm	0.25mm	120
PDW	30	150	0.23mm	0.18mm	90
PDW	30	150	0.25mm	0.18mm	82
PDW	40	200	0.18mm	0.14mm	70
PDW	40	200	0.18mm	0.135mm	63
PDW	50	250	0.14mm	0.114mm	60

Specification of Twill Dutch Weave Mesh:
Twill Weave Mesh (Normal Spec.)
Weaving method	Warp Count	Weft Count	Warp Wire (mm)	Weft Wire (mm)	Norminal (micron)
TDW	80	400	0.125mm	0.071mm	40
TDW	80	700	0.1mm	0.077mm	25
TDW	80	700	0.112mm	0.08mm	29
TDW	80	700	0.125mm	0.04mm	40
TDW	130	1100	0.071mm	0.05mm	17
TDW	165	800	0.1mm	0.077mm	15
TDW	165	1400	0.063mm	0.04mm	13
TDW	165	1400	0.068mm	0.04mm	10
TDW	200	1400	0.068mm	0.04mm	5
TDW	203	1600	0.05mm	0.032mm	10
TDW	216	1800	0.045mm	0.03mm	10
TDW	325	2300	0.036mm	0.024mm	4
TDW	325	2300	0.036mm	0.025mm	2
TDW	400	2700	0.028mm	0.02mm	4
TDW	500	3500	0.025mm	0.015mm	3
