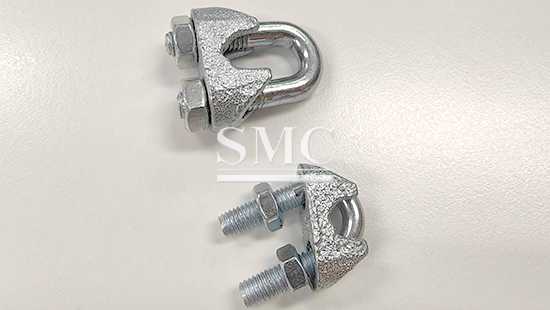

Steel Wire Rope Clip/ Wire Rope Clamp
Standard: ASMT B30.26, EN 13001-3-2
Material: A36/ Q235/ SAE1045/ #45/ SS304
Basic Composition: Consists of U-shaped bolt, forged steel saddle base and two hex nuts
Shanghai Metal Corporation is a professional manufacturer and supplier of Steel Wire Rope Clip/ Wire Rope Clamp with high quality and reasonable price.
Wire rope clips or clamps are designed to securely fix steel wires or connect two wires together, ensuring safety and stability in applications such as crane operations. These clips are engineered for reliability, with widespread use in heavy lifting and suspension systems. Typically crafted from carbon steel or stainless steel to provide strength and resistance to environmental factors, the choice between the two materials depends on the specific application's demands, such as corrosion resistance or cost-effectiveness. To meet diverse industrial needs, we offer the flexibility to supply custom-designed wire rope clips, tailored to specific project requirements or to accommodate unique wire rope configurations. This customization ensures that the clips not only fit perfectly but also enhance the overall performance and safety of the wire rope system in various operational conditions.
If you want to know more about Steel Wire Rope Clip/ Wire Rope Clamp price please feel free to contact us, we will reply you within 24 hours.
-
1. Clamp Type: DIN741, DIN1142, US type, Japan type, Italy type G-450
2. Material: Malleable steel, carbon steel
3. Size: 1/8in - 3-1/2in
4. Surface: Galvanized, dacromet, power-coated spray
-
-
-
1. Standard Compliance
Manufactured strictly in accordance with GB/T, JIS, ASMT or DIN standards.Ensures full dimensional compatibility with local standard wire ropes.

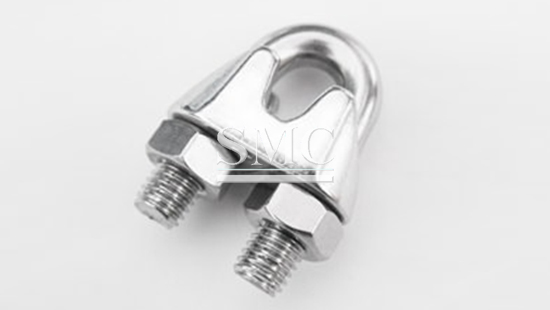

2. Marine-grade Stainless Steel Construction
Available in AISI 304 / 316 stainless steel, with optional galvanized carbon steel versions.Delivers long-term rust and salt-spray resistance.

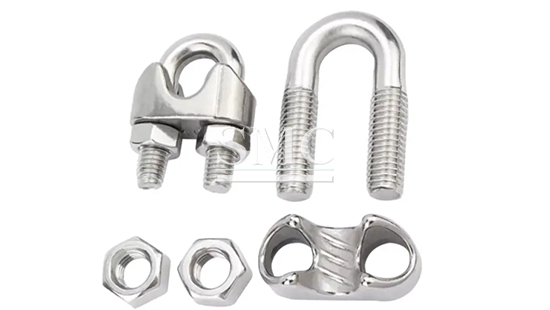

3. U-bolt / Saddle / Duplex Optimized Structure
Adopts precision investment casting or forging process, with polished finish and no sharp edges.Provides reliable clamping force, without damaging wire rope strands.
4. Easy On-site Installation
Complete assembly with U-bolt, saddle and double nuts; duplex type requires no extra washers or locknuts. Cuts installation time on site, lowers labor cost.
-
1. Marine Rigging & Offshore Mooring
Used on yachts, fishing vessels, offshore platforms and coastal wharves to fix the dead end of mooring lines, control cables and rigging stays. 316 stainless steel or hot-dip galvanized material delivers excellent salt spray and seawater corrosion resistance, and the clamping force reaches 80% of the wire rope breaking strength, which fully meets the long-term stable load requirements in high-humidity marine environments..
2. Agriculture & Pasture Fencing
Widely used in pasture guardrails, greenhouse support systems and agricultural machinery traction rope fixing.The electro-galvanized low-cost version has good weather resistance, the operation is simple and no professional technicians are needed, which greatly reduces the daily maintenance cost of large-area outdoor facilities..
-
Technical Information of Steel Wire Rope Clip/ Wire Rope Clamp:
|

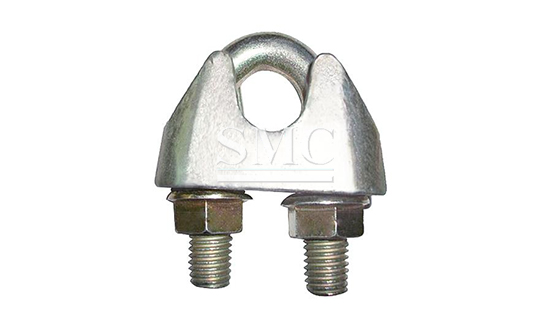

US type drop forged wire rope clip |
|||||||||
|
Size |
Diemensions (in) |
Weight |
|||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
||
|
1/8 |
0.22 |
0.72 |
0.44 |
0.47 |
0.37 |
0.38 |
0.81 |
0.99 |
6 |
|
3/16 |
0.25 |
0.97 |
0.56 |
0.59 |
0.50 |
0.44 |
0.94 |
1.18 |
10 |
|
1/4 |
0.31 |
1.03 |
0.50 |
0.75 |
0.66 |
0.56 |
1.19 |
1.43 |
19 |
|
5/16 |
038 |
1.38 |
0.75 |
0.88 |
0.73 |
0.69 |
1.31 |
1.66 |
28 |
|
3/8 |
0.44 |
1.50 |
0.75 |
1.00 |
0.91 |
0.75 |
1.63 |
1.94 |
48 |
|
7/16 |
0.50 |
1.88 |
1.00 |
1.19 |
1.13 |
0.88 |
1.91 |
2.28 |
78 |
|
1/2 |
0.50 |
1.88 |
1.00 |
1.19 |
1.13 |
0.88 |
1.91 |
2.28 |
80 |
|
9/16 |
0.56 |
2.25 |
1.25 |
1.31 |
1.34 |
0 94 |
2.06 |
2.50 |
109 |
|
5/8 |
0.56 |
2.25 |
1.25 |
1.31 |
1.34 |
0.94 |
2.06 |
2.50 |
110 |
|
3/4 |
0.62 |
2.75 |
1.44 |
1.5 |
1.39 |
1.06 |
2.25 |
2.84 |
142 |
|
7/8 |
0.75 |
3.12 |
1.62 |
1.75 |
1.58 |
1.25 |
2.44 |
3.16 |
212 |
|
1 |
0.75 |
3.50 |
1.81 |
1.88 |
1.77 |
1.25 |
2.63 |
3.47 |
252 |
|
11/8 |
0.75 |
3.88 |
2.00 |
200 |
1.91 |
1.25 |
2.81 |
3.59 |
283 |
|
11/4 |
0.88 |
4.44 |
2.22 |
2.34 |
2.17 |
1.44 |
3.13 |
4.13 |
438 |
|
13/8 |
0.88 |
4.44 |
2.22 |
2.34 |
2.31 |
1.44 |
3.13 |
4.19 |
442 |
|
1 1/2 |
0.88 |
4.94 |
2.38 |
2.59 |
2.44 |
1.44 |
3.41 |
4.44 |
544 |
|
1 5/8 |
1.00 |
5.31 |
2.62 |
2.75 |
2.66 |
1.63 |
3.63 |
4.75 |
704 |
|
13/4 |
1.13 |
5.75 |
2.75 |
3.06 |
2.92 |
1.81 |
3.81 |
5.24 |
934 |
|
2 |
1.25 |
6.44 |
3.00 |
3.38 |
3.03 |
2.00 |
4.44 |
5.88 |
1300 |
|
2 1/4 |
1.25 |
7.13 |
3.19 |
3.88 |
3.19 |
2.00 |
4 56 |
6.38 |
1600 |
|
2 1/2 |
1.25 |
7.69 |
3.44 |
4.13 |
3.69 |
2.00 |
4.69 |
6.63 |
1900 |
|
2 3/4 |
1.25 |
8.31 |
3.56 |
4.38 |
4.88 |
2.00 |
5.00 |
6.88 |
2300 |
|
3 |
1.50 |
9.19 |
3.88 |
4.75 |
4.44 |
2.38 |
5.31 |
7.61 |
3100 |
|
3 1/2 |
1.50 |
10.75 |
4.50 |
5.50 |
6.00 |
2.38 |
6.19 |
8.38 |
4000 |
|
DIN1142 Malleable Wire Rope Clip |
||||||||
|
Size (mm) |
Dimensions(mm) |
Weight 100pcs |
||||||
|
a |
b1 |
b2 |
d |
h1 |
h2 |
l |
||
|
5 |
13 |
7 |
13 |
5 |
25 |
13 |
25 |
5 |
|
6.5 |
17 |
8 |
16 |
6 |
32 |
14 |
30 |
9 |
|
8 |
20 |
10 |
20 |
8 |
41 |
18 |
39 |
18 |
|
10 |
24 |
12 |
20 |
8 |
46 |
21 |
40 |
20 |
|
13 |
30 |
15 |
28 |
12 |
64 |
29 |
55 |
61 |
|
16 |
35 |
18 |
32 |
14 |
76 |
35 |
64 |
95 |
|
19 |
36 |
22 |
32 |
14 |
83 |
40 |
68 |
108 |
|
22 |
40 |
24 |
34 |
16 |
96 |
44 |
74 |
150 |
|
26 |
50 |
26 |
38 |
20 |
111 |
51 |
84 |
258 |
|
30 |
55 |
34 |
41 |
20 |
127 |
59 |
95 |
309 |
|
34 |
60 |
38 |
45 |
22 |
141 |
67 |
105 |
470 |
|
40 |
65 |
44 |
49 |
24 |
159 |
77 |
117 |
591 |
|

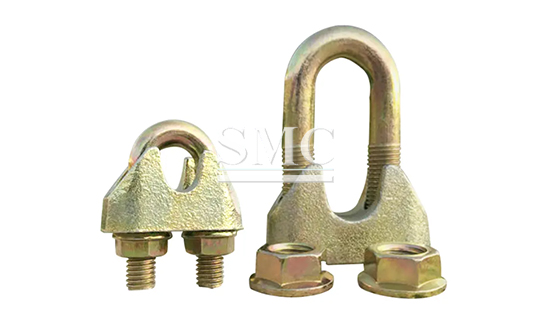

US Type malleable wire rope clip |
||||||||
|
Size |
Diemensions (in) |
Weight 100 pcs |
||||||
|
A |
B |
C |
D |
E |
F |
G |
||
|
1/8 |
1/2 |
1/2 |
1/2 |
1/4 |
7/16 |
15/16 |
13/16 |
4.30 |
|
3/16 |
9/16 |
9/16 |
5/8 |
1/4 |
1/2 |
1 1/16 |
31/32 |
6.80 |
|
1/4 |
11/16 |
11/16 |
7/8 |
5/16 |
5/8 |
13/8 |
17/32 |
14.50 |
|
5/16 |
11/16 |
11/16 |
718 |
5/16 |
11/16 |
1 3/8 |
17/32 |
15.00 |
|
3/8 |
7/8 |
7/8 |
1 |
3/8 |
13/16 |
1 5/8 |
1 5/8 |
21.50 |
|
7/16 |
7/8 |
15/16 |
1 |
3/8 |
13/16 |
15/8 |
15/8 |
24.00 |
|
1/2 |
1 |
1 |
1 1/4 |
7/16 |
1 1/16 |
17/8 |
2 |
37.00 |
|
9/16 |
13/16 |
1 1/8 |
1-15/32 |
1/2 |
13/16 |
2 3/16 |
2 5/16 |
55.00 |
|
5/8 |
13/16 |
1 1/8 |
1-15/32 |
1/2 |
15/16 |
2 3/16 |
2 5/16 |
59.00 |
|
3/4 |
1-11/32 |
11/4 |
1 3/4 |
9/16 |
11/2 |
2 7/16 |
2 9/16 |
84.00 |
|
7/8 |
1 5/8 |
1 3/4 |
1 13/16 |
5/8 |
13/4 |
2 7/8 |
3 1/16 |
128.00 |
|
1 |
13/4 |
2 |
2 1/16 |
5/8 |
1 15/16 |
3 |
3 3/8 |
150.00 |
|
1-1/8 |
2-11/16 |
2 1/8 |
2 3/16 |
3/4 |
2 3/16 |
3 7/16 |
3 7/8 |
243.00 |
|
1-1/4 |
2-1/16 |
2 1/2 |
2 3/16 |
3/4 |
2 3/8 |
3 7/16 |
3 7/8 |
262.00 |
|
1-3/8 |
2-9/16 |
3 1/8 |
2 |
7/8 |
2 7/8 |
4 3/16 |
4 1/2 |
456.00 |
|
1-1/2 |
2-9/16 |
3 1/4 |
2 |
7/8 |
3 |
4 1/4 |
4 1/2 |
512.00 |
|
DIN 741 malleable wire rope clip |
||||||||
|
Size |
Diemensions (mm) |
Weight 100pcs |
||||||
|
A |
B |
C |
D |
E |
F |
G |
||
|
3 |
9 |
10 |
12 |
4 |
10 |
21 |
16.60 |
1.40 |
|
5 |
11 |
11 |
13 |
5 |
10 |
23 |
19.65 |
1.50 |
|
6.5 |
13 |
12 |
15 |
5 |
11 |
26 |
23.65 |
2.10 |
|
8 |
16 |
14 |
19 |
6 |
15 |
30 |
28.85 |
4.10 |
|
10 |
19 |
18 |
22 |
8 |
17 |
34 |
35.00 |
6.80 |
|
11 |
20 |
19 |
22 |
8 |
18 |
36 |
37.00 |
7.20 |
|
13 |
24 |
23 |
30 |
10 |
21 |
40 |
46.24 |
13.00 |
|
14 |
25 |
23 |
30 |
10 |
22 |
44 |
48.24 |
13.50 |
|
16 |
29 |
26 |
33 |
12 |
26 |
50 |
52 50 |
21.00 |
|
19 |
32 |
29 |
38 |
12 |
30 |
54 |
64.50 |
28 00 |
|
22 |
37 |
33 |
44 |
14 |
34 |
61 |
72.50 |
40.00 |
|
26 |
41 |
35 |
45 |
14 |
37 |
65 |
82.50 |
44.00 |
|
30 |
48 |
37 |
50 |
16 |
43 |
74 |
95.60 |
66.00 |
|
34 |
52 |
42 |
55 |
16 |
50 |
80 |
105.60 |
85.00 |
|
40 |
58 |
45 |
60 |
16 |
55 |
88 |
125.60 |
104.00 |
Packaging of Steel Wire Rope Clip/ Wire Rope Clamp:

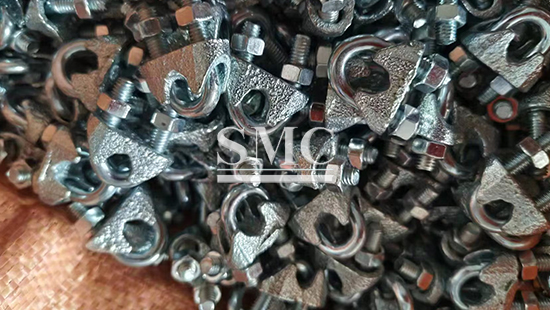

Standard Packaging
Each piece is individually packed in a transparent plastic bag, with product specification label and anti-rust oil coating to avoid scratches and corrosion during transit.All cartons are neatly stacked on standard export wooden pallets, wrapped with stretch film and fixed with packing straps, to prevent tipping and damage during sea and land multimodal transport.
Shipping
We support FCL and LCL sea freight, air freight and express courier depending on order quantity and destination. Available trade terms include EXW, FOB, CFR and CIF; other Incoterms may be available upon request. Shipping costs are calculated based on cargo volume, gross weight, destination port and selected transportation method.
Lead Time
Samples: 5–10 working days
Standard orders: 15–25 working days after deposit
Customized orders: 25–35 working days after sample approval
Q: What is the correct installation direction for wire rope clips?
A: The saddle of the clip must be fully seated on the load-bearing working section of the wire rope, while the U-bolt is fastened on the unloaded tail section. All clips must be arranged in the same direction, and staggered installation is strictly prohibited, otherwise the wire rope will be damaged and the connection strength will be reduced.
Q: What is the standard spacing between adjacent wire rope clips?
A: The center-to-center distance between two adjacent clips must be 6 to 7 times the nominal diameter of the used wire rope. This design can distribute the clamping force evenly, avoid local stress concentration, and effectively reduce the risk of wire rope slippage under load.
Q: What is the connection strength of a properly installed wire rope clip set?
A: When installed in full compliance with GB/T 5976-2006 specifications, the breaking strength of the fixed connection can reach at least 80% of the rated breaking strength of the matched wire rope, which meets the safety requirements of most general industrial load scenarios.
Q: For the suspension system of a cantilevered unloading platform in building construction, how to configure wire rope clips to meet the safety code requirements?
A: The number of clips for the suspension wire rope with a nominal diameter greater than 18mm shall not be less than 4, and the spacing shall be strictly 6-7 times the wire rope diameter. The saddle must be completely pressed on the main stressed working section, and the U-bolt shall not be in contact with the main stressed wire rope, to avoid the risk of sudden breakage of the suspension wire rope under periodic dynamic load.
