Standard: JIS3321/ASTM A792M
Thickness: 0.15mm - 1.2mm, all available
Width: 600mm - 1250mm, all available
The wooden pattern prepainted galvalume steel coil can provide the beauty of natural materials printed directly on a metal substrate, with excellent formability and customized design work available. Shanghai Metal can utilize optical print technology which provides a realistic textured finish. This metal simulates the warmth and depth of real wood species as well as a variety of other textured design motifs.
Specification of Prepainted Galvalume Steel Coil ( AZ150+PVDF, Anti-finger):
1) Capacity: over 15,000 tons per month for aluzinc steel
2) Standard: AISI, ASTM, BS, DIN, GB, JIS
3) Thickness: 0.15mm - 1.2mm, all available
4) Width: 600mm - 1250mm, all available
5) Length: according to the customer's request
6) Coil ID: 508/610mm
7) Hardness: Soft
8) Coating: AZ30- AZ150
9) Color series: RAL color
10) Min trial order: 25 ton each thickness, 1x20' per delivery

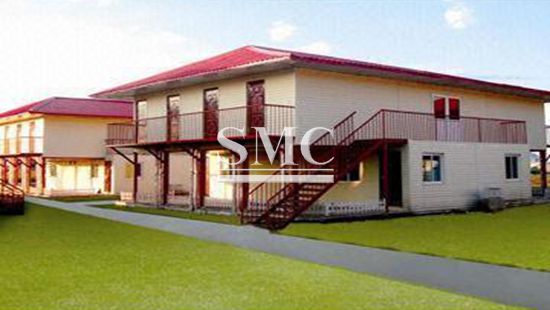

11) Application: it is ideal for a wide range of applications, especially when superior atmospheric resistance is required, such as pre-engineered buildings, architectural panels, roofing, siding, cladding, and many other building components.

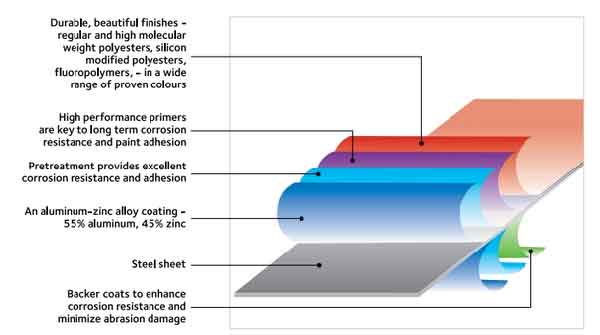

Structure Of Prepainted Galvalume Steel Coil ( AZ150+PVDF, Anti-finger):
Production Facility of Prepainted Galvalume Steel Coil (AZ150+PVDF, Anti-finger):
1) Pay-off Section
The operating principles and functions are similar to the galvanizing process, except that it uses a joiner to fasten the steel sheets together.
2) Clean, Pre-treatment and Chemical Coating
The GI coil is cleaned at the degreaser tank, where oil and dust are removed by chemical means. The white rust formed on the surface can
be removed at the brush assembly. The clean coil will then be coated with conditioner and chromate at the conditioner and chromate tank
respectively, to provide better adhesion and corrosion resistance ability.
3) Prime and Finish Coating
A basic layer of paint, called primer, is applied on the chemical coater in order to strengthen the corrosion resistance and paint adhesion ability.
The requested colours and specifications of paint will be applied at both the top and bottom of the primer coated coil to complete the painting
4) Prime and Finish Oven
The primer coating is further cured at the primer oven and cooled at the primer water quench to ensure the painted coil is completely cured.
Similarly, the finish oven and finish water quench also serve to ensure that the paint applied is completely cured and cooled.
Production Line of Prepainted Galvalume Steel Coil (AZ150+PVDF, Anti-finger):
A typical Horizontal Color Coated Galvanized Steel Coil Line would comprise with the following steps:
Process Flow Diagram
Pay off reel → Double cut shear → Welder-notcher → Entry accumulator → Pre-cleaning section → Furnace → Hot bridle → Zinc pot → Air knife → After cooler → Water quench → Dryer → Skin pass mill → Dryer → Tension leveler → Dryer → Chemical coater → Chemical oven → Cooler → Exit accumulator → Oiler → Exit shear → Tension reel
Packaging Information for Prepainted Galvalume Steel Coil (AZ150+PVDF, Anti-finger)
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
Shanghai Metal Corporation is an international manufacturer and supplier for Prepainted Galvanized Steel Coil. We have two prepainted lines based on galvanized steel coil. Our monthly output for each line is approxiamtely 5,000 ton.
