Shrink Ratio: 1.3:1 1.6:1
Material: FEP
Normal size: 3mm-160mm
Shanghai Metal Corporation is one of the leading and reliable manufacturers and exporters of Shrink tubes in China. We provide the high quality matched products and excellent services for various industries.

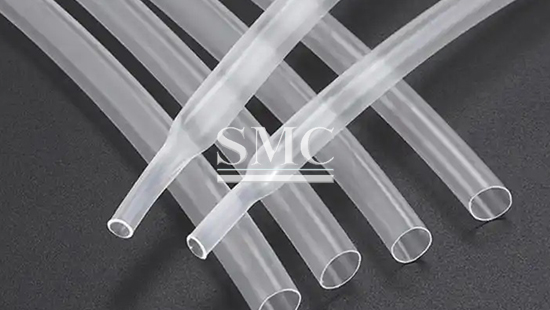

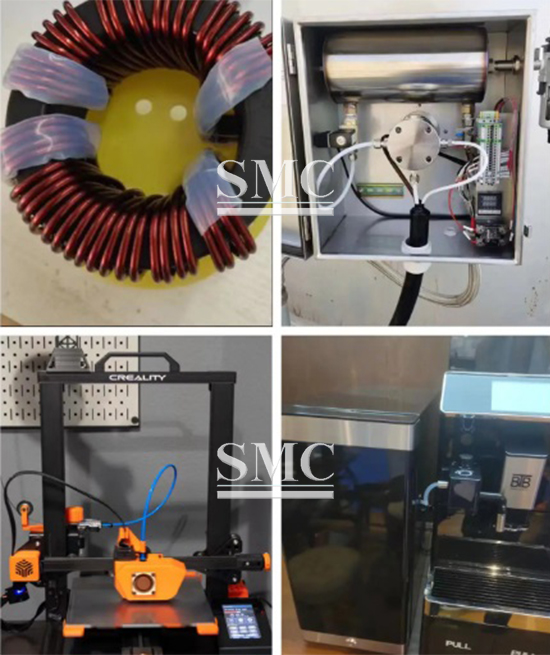

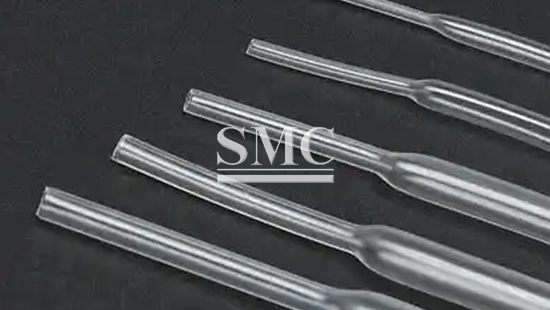

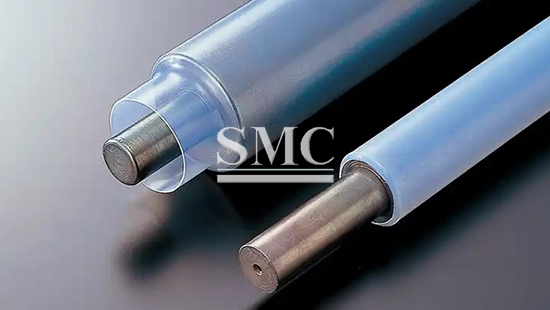

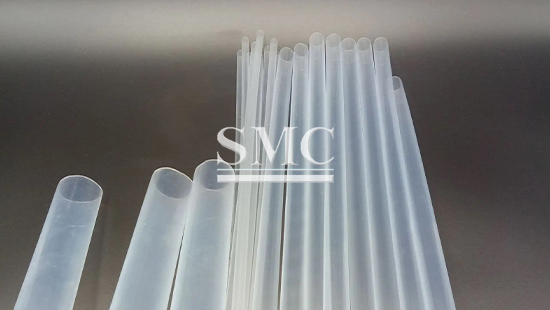

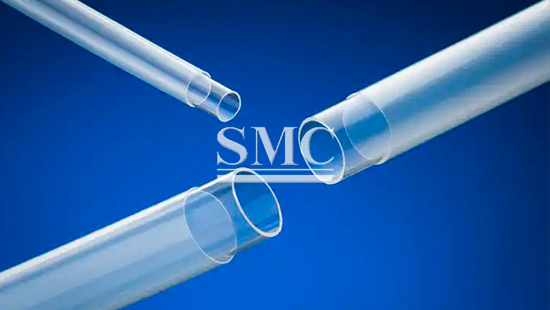

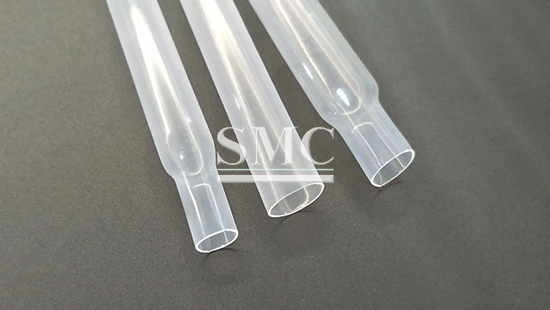

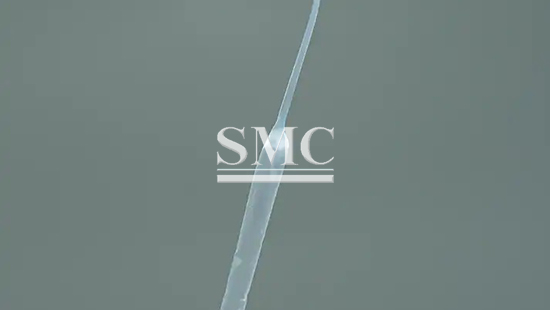

FEP heat shrink tubing has outstanding wear resistance, chemical corrosion resistance, and high temperature performance. Applied in fields such as instrumentation, food and medical, communication, motors, rail transit, automobiles, household appliances, special cables, etc.
If you want to know more about our FEB shrink tubing, please feel free to contact us, we will reply you within 24 hours.
Specification |
Before Shrinking |
After Shrinking |
||
Inner Dia(mm) |
Wall Thickness(mm) |
Inner Dia(mm) |
Wall Thickness(mm) |
|
Φ3.0 |
≥3.0 |
0.2+/-0.05 |
≤2.3 |
0.25+/-0.05 |
Φ3.5 |
≥3.5 |
0.2+/-0.05 |
≤2.7 |
0.25+/-0.05 |
Φ4.0 |
≥4.0 |
0.2+/-0.05 |
≤3.1 |
0.25+/-0.05 |
Φ4.5 |
≥4.5 |
0.2+/-0.05 |
≤3.5 |
0.25+/-0.05 |
Φ5.0 |
≥5.0 |
0.2+/-0.05 |
≤3.9 |
0.25+/-0.05 |
Φ5.5 |
≥5.5 |
0.2+/-0.05 |
≤4.3 |
0.25+/-0.05 |
Φ6.0 |
≥6.0 |
0.2+/-0.05 |
≤4.7 |
0.25+/-0.05 |
Φ6.5 |
≥6.5 |
0.2+/-0.05 |
≤5.0 |
0.25+/-0.05 |
Φ7.0 |
≥7.0 |
0.2+/-0.05 |
≤5.4 |
0.25+/-0.05 |
Φ7.5 |
≥7.5 |
0.2+/-0.05 |
≤5.8 |
0.25+/-0.05 |
Φ8.0 |
≥8.0 |
0.2+/-0.05 |
≤6.2 |
0.25+/-0.05 |
Φ8.5 |
≥8.5 |
0.2+/-0.05 |
≤6.6 |
0.25+/-0.05 |
Φ9.0 |
≥9.0 |
0.2+/-0.05 |
≤7.0 |
0.25+/-0.05 |
Φ9.5 |
≥9.5 |
0.2+/-0.05 |
≤7.3 |
0.25+/-0.05 |
Φ10.0 |
≥10.0 |
0.2+/-0.05 |
≤7.7 |
0.25+/-0.05 |
Packaging
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
