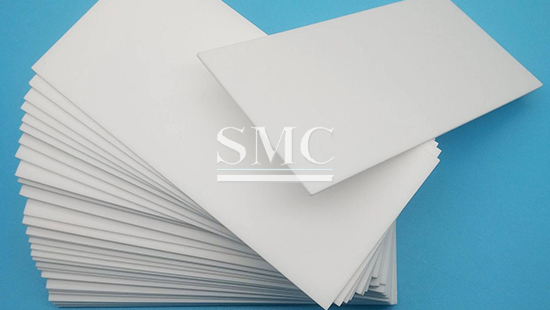

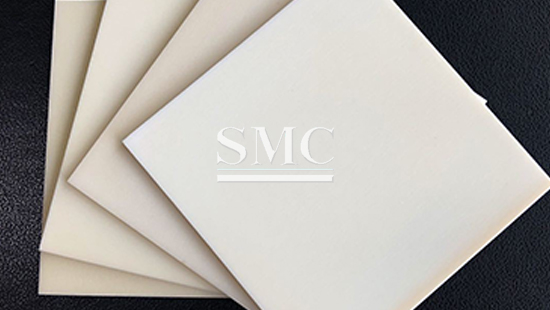

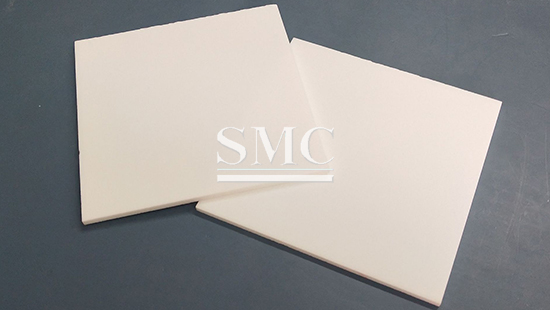

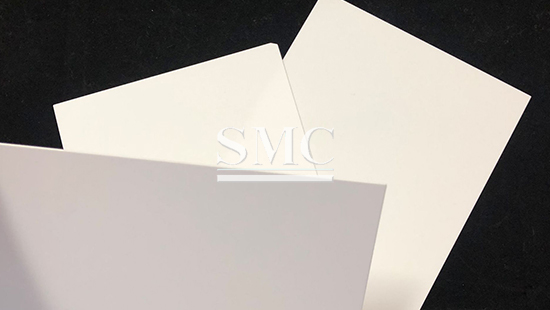

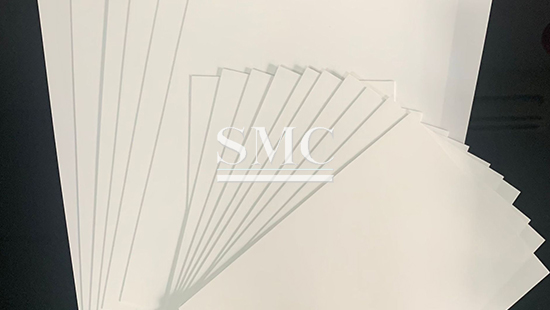

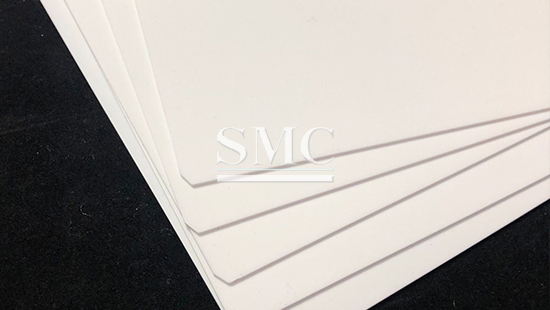

Aluminum Oxide Ceramic Substrate

Material: 96% Aluminium oxide and 4% flux and additives

Thickness: 0.25 - 1.2 mm

Size (max): 138*188 mm

Thickness tolerances: ±7% (Min：0.05mm)

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a aluminium oxide ceramic substrate manufacturer and supplier.

Our company has a high-quality R&D team, beautiful factory environment, modern factory buildings, professional production equipment and advanced testing instruments. It adopts internationally leading technology to produce aluminium oxide ceramic substrates. The products have excellent porcelain quality, good surface roughness, good flatness of large pieces, high precision of laser processing dimensions, good breaking performance, as well as good thermal conductivity, low dielectric constant and dielectric loss, high insulation performance, good chemical stability and other characteristics. They are widely used in copper-clad laminates, printers, LED, high power circuit substrates such as automotive electronics and heat dissipation substrates for electronic components.

If you want to know more about our aluminium oxide ceramic substrate or aluminium oxide ceramic substrate’s price, please feel free to contact us, we will reply you within 24 hours.

1. Material: 96% Aluminium oxide and 4% flux and additives
2. Thickness: 0.25 - 1.2 mm
3. Size (max): 138*188 mm
4. Thickness tolerances: ±7% (Min：0.05mm)

1. Excellent thermal conductivity
2. Excellent thermal shock resistance effect
3. Excellent surface properties and excellent flatness
4. Excellent corrosion resistance performance
5. High insulation performance, low dielectric constant and dielectric loss

1. Copper Clad Laminate
2. LED Lighting
3. Communications Industry
4. Automobile Industry

Technical Information of Aluminum Oxide Ceramic Substrate:

Characteristic		Test condition	Unit	Qualified	Fine
Color		-	-	White dense	White dense
Camber		-	-	≤0.3%	≤0.2%
Grain size		-	μm	3~5	3~5
Surface Roughness		Ra	μm	0.2~0.5	0.2~0.4
Density		-	g/cm3	≥3.75	≥3.76
Physical properties	Flexural strength	Three point	MPa	≥380	≥400
	Hardness	Loaded 4.9	GPa	≥14	≥15
	Water absorption	-	%	0	0
Thermal properties	Thermal conductivity	25℃	W/(m*k)	≥24	≥25
	thermal expansion	25-500℃	10^-6mm/℃	6.6~7.5	6.6~7.5
	thermal expansion	25-800℃	10^-6mm/℃	6.6~7.9	6.6~7.9
	Thermal shock resistance	850℃	time	≥6
	Specific heat	-	J/(kg*K)	880
Electrical property	Dielectric constant	1MHz/25℃	-	9.4±0.3
	Dielectric loss	1MHz/25℃	×10^-4	≤3
	Dielectric loss	25℃	Ω*cm	＞10¹⁴
	Volume resistivity	300℃		＞10¹⁰
	Volume resistivity	500℃		＞10⁹
	Breakdown voltage	-	KV/mm	＞12	＞12

Packaging of Aluminum Oxide Ceramic Substrate:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
