Rachet Types: U.S type, Europe type, Australia type

Handle material: C45

Handle: forged

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Rachet Binder with high quality and reasonable price.

Ratchet binder are widely used in important industries such as ports, power, steel, shipbuilding, petrochemicals, mining, railways, construction, metallurgy and chemical engineering, automobile manufacturing, plastic machinery, industrial control, highways, large-scale transportation, pipeline auxiliary equipment, slope tunnels, shaft treatment and protection, maritime rescue, marine engineering, airport construction, bridges, aviation, aerospace, venues, and mechanical equipment for infrastructure construction projects.

If you want to know more about Rachet Binder price please feel free to contact us, we will reply you within 24 hours

Standard: BS EN12195-3, ASME B30.26-2015
Size: 1/4''-5/16'', 5/16''-3/8'', 3/8''-1/2'', 1/2''-5/8''
Surface: power-coated, galvanized
Safety factor: 4:1
Suitable for G43, G70, G80, G100 chain
Application: never for lifting, only for lashing

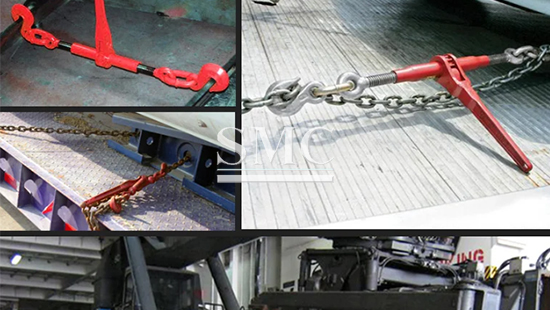

1. Marine and port
2. Power and oil industry
3. Railway and mining
4. Equipment and construction
5. Construction and automobile manufacturing

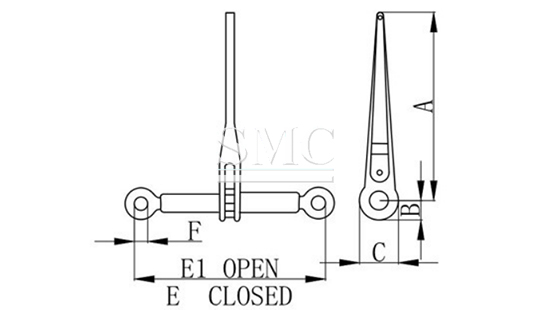

Technical Information of Rachet Binder:

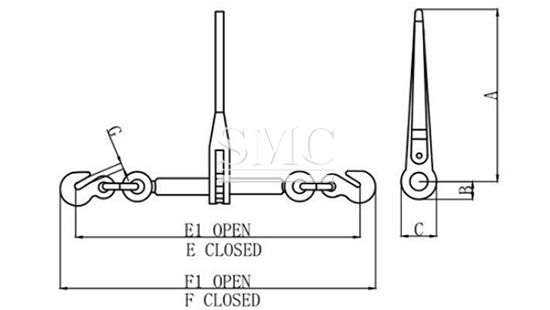

Min-Max Chain Size (in)	WLL (Ibs)	Proof Load (Ibs)	Breaking Load (Ibs)	Weight (Ibs)	Handle Length (in)	Dimensions(in)
Min-Max Chain Size (in)	WLL (Ibs)	Proof Load (Ibs)	Breaking Load (Ibs)	Weight (Ibs)	Handle Length (in)	A	B	C	E	E1	F
1/4-5/16	5400	10800	19000	7.8	13.42	13.92	1.3	2.6	13.7	21.7	0.79
5/16-3/8	9200	18400	33000	7.8	13.92	13.92	1.3	2.6	13.7	21.7	1.02
3/8-1/2	13000	26000	46000	8.5	13.92	13.92	1.3	2.6	24.13	32.13	27.04

Min-Max Chain Size (in)	WLL (Ibs)	Proof Load (Ibs)	Breaking Load (Ibs)	Weight (Ibs)	Handle Length (in)	Dimensions(in)
Min-Max Chain Size (in)	WLL (Ibs)	Proof Load (Ibs)	Breaking Load (Ibs)	Weight (Ibs)	Handle Length (in)	A	B	D	E	E1	F	F1
1/4-5/16	2200	4400	7800	3.52	7.16	7.16	0.89	1.77	16.22	21.26	17.79	0.35
5/16-3/8	5400	10800	19000	10.5	13.42	13.92	1.3	2.6	22.64	30.64	25.24	0.51
3/8-1/2	9200	18400	33000	12.9	13.92	13.92	1.3	2.6	24.13	32.13	27.04	0.59
1/2-5/8	13000	26000	46000	14.38	13.92	13.92	1.3	2.6	26.45	34.45	30.07	0.74

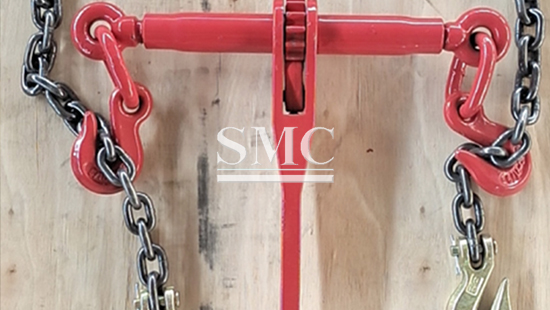

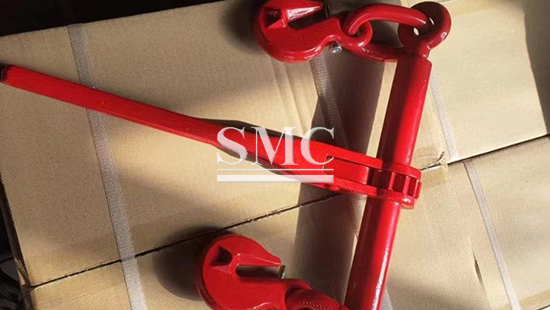

Packaging of Rachet Binder:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

Notes:

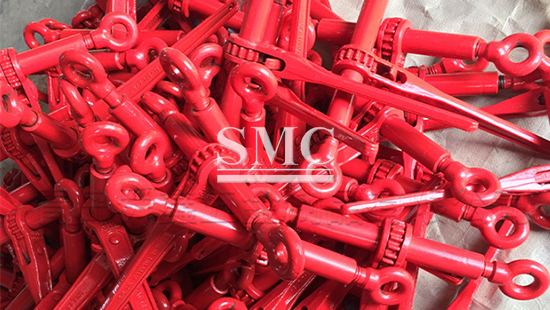

1. Specially designed for safety and ease of use - the forged ratchet handle provides additional leverage, so you can get the appropriate tension on the chain each time. The forged steel hook and gear system are easy to use and can prevent "kickbacks" and other hazards during loading and unloading.

2. Industrial strength structure - heavy-duty forged handles, barrels, starting screws, links, and hooks can withstand strict on-site use and harsh weather conditions. Bake on powder coating and zinc dichromate electroplating to provide maximum durability and reliability. The forged grappling hook can rotate 360 degrees, and the 3/8-inch (about 1.9 cm) grade 70 or 1/2-inch (about 1.9 cm) grade 43 chain can be easily joined.

3. Correctly evaluate your safety considerations - these ratchet style load binders weigh 9200 pounds. Safe working load, suitable for 3/8 inch (approximately 1.9 cm) 70 or 1/2 inch (approximately 1.3 cm) 43 grade chains. Rating based on a 4:1 safety factor.
