Customizable thickness range：5mm~25mm

Veneer size：Max. 2000mm x 1000mm

Material: Monolithic B4C

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading manufacturer and supplier of Boron carbide bulletproof plate.

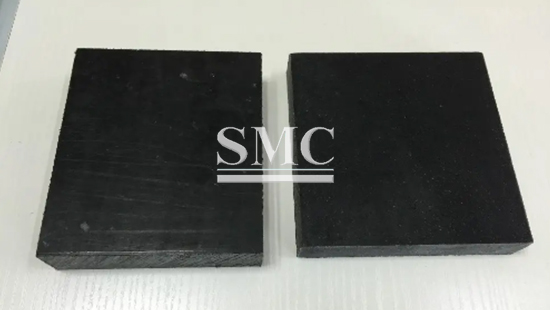

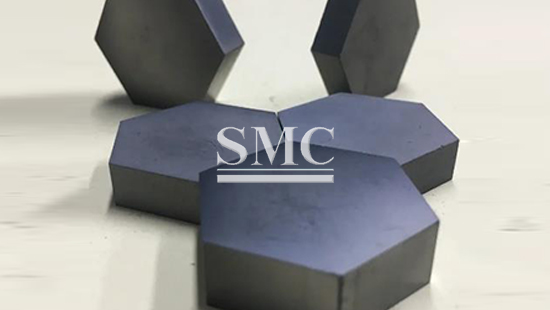

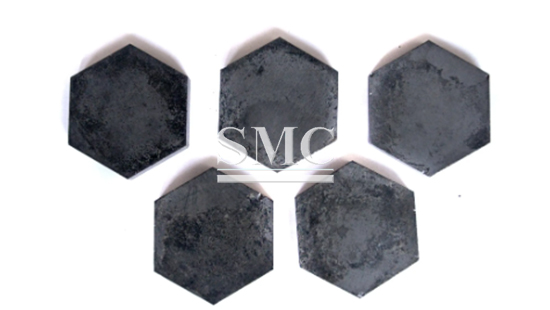

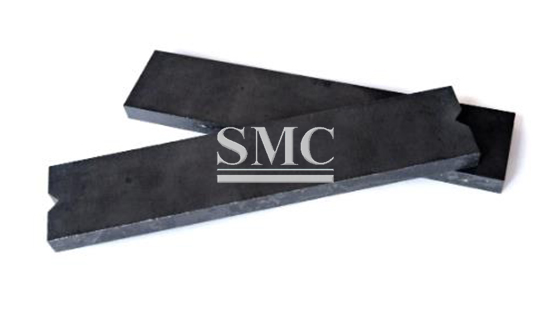

Boron carbide bulletproof plate is a kind of high-performance ceramic material made of boron carbide (B4C), which is widely used in many fields because of its high hardness, low density and excellent bulletproof performance.

If you would like to learn more about our mechanical products or Boron carbide bulletproof plate, please feel free to contact us at any time. We will give you a response within 24 hours.

- Standard:NIJ Standard-0101.06、EN 1522/1523、MIL-DTL-32332、GA 141-2010、GB/T 43014-2023.

  Grade:Monolithic B4C、B4C/PE、B4C/Al.

  Thickness：6mm、8mm、10mm.

  Customizable thickness range：5-25mm.

  Curvature (arc plate): Plane/fixed curvature or customized according to customer drawings

- 1.Ultra-light and high strength: the density is only 1/3 of steel, and the protection efficiency is 5 times higher than steel.
  2.Extreme environment resistance: high temperature resistance, corrosion resistance, suitable for desert, ocean and other harsh conditions.
  3.Multi-level compatibility: It can be matched with aramid and PE substrates to form a composite armor system.
  4.Machinability: Support drilling, cutting, surface spraying (such as camouflage coating).

1.Individual protection: Bulletproof insert plate (NIJ IV), tactical helmet.
2.Vehicle armor: military vehicle side panel, helicopter seat protection.
3.Facility protection: bank counter, embassy bulletproof wall, VIP vehicle modification.
4.Special uses: UAV armor, nuclear facilities explosion-proof shielding layer.

Technical Information of Boron carbide bulletproof plate:

Grade	Protective Capacity Description	Ammunition Type	Backface Deformation Limit
Type IIA	Stops 9x19mm Full Metal Jacket (FMJ) and .40 S&W FMJ rounds	9x19mm FMJ, .40 S&W FMJ	≤44mm
Type II	Stops 9x19mm FMJ and .357 Magnum JSP rounds	9x19mm FMJ, .357 Magnum JSP	≤44mm
Type IIIA	Stops .357 SIG FMJ and .44 Magnum SJHP rounds	.357 SIG FMJ, .44 Magnum SJHP	≤44mm
Type III	Stops 7.62x51mm FMJ (M80) rifle rounds	7.62x51mm FMJ (M80)	≤44mm
Type IV	Stops .30-06 M2 armor-piercing rounds	.30-06 M2 armor-piercing	≤44mm

Grade	Protective Capacity Description	Ammunition Type	Backface Deformation Limit
grade 1	Stops 7.62x17mm lead core pistol rounds	7.62x17mm lead core pistol	≤25mm
grade 2	Stops 7.62x25mm lead core pistol rounds	7.62x25mm lead core pistol	≤25mm
grade 3	Stops 7.62x25mm lead core pistol rounds fired from a long-barrelled Type 79 submachine gun	7.62x25mm lead core pistol from long-barrelled Type 79 submachine gun	≤25mm
grade 4	Stops 7.62x25mm steel core pistol rounds fired from a long-barrelled Type 79 submachine gun	7.62x25mm steel core pistol from long-barrelled Type 79 submachine gun	≤25mm
grade 5	Stops 7.62x39mm Type 56 ball rifle rounds	7.62x39mm Type 56 ball rifle	≤25mm
grade 6	Stops 7.62x54mm Type 53 ball rifle rounds	7.62x54mm Type 53 ball rifle	≤25mm

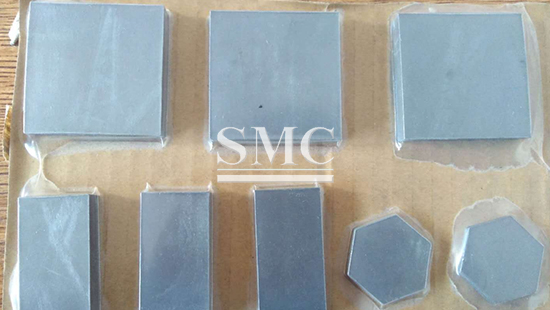

Packaging of Boron carbide bulletproof plate:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization
