Grade：C5102, C5191,C5210, C5100，C95400, C63200, C63000, C61400

Thickness: 0.125~50mm

Width: ≤1000mm

Length: ≤2000mmm

Product Detail | Technical Information | Packaging | More

Product Detail1

Shanghai Metal Corporation is a leading bronze sheet/plate manufacturer and supplier.

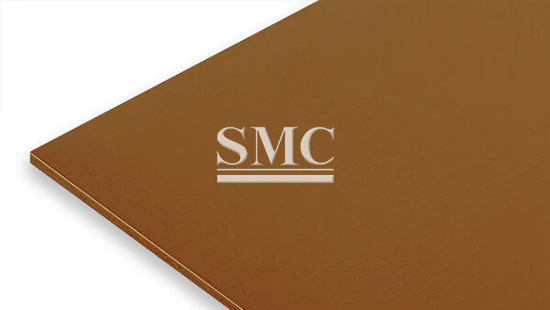

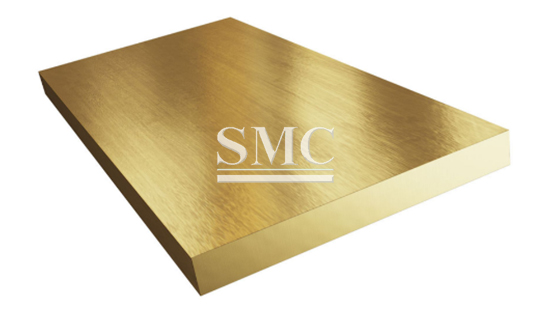

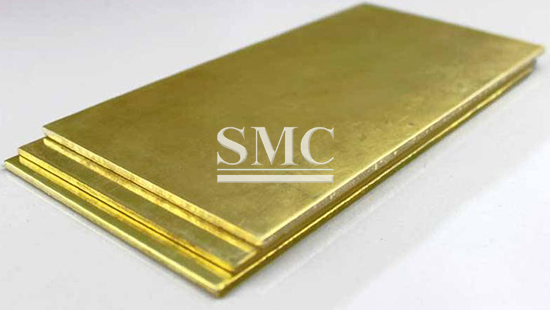

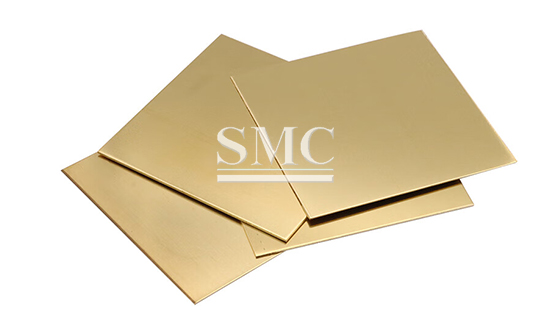

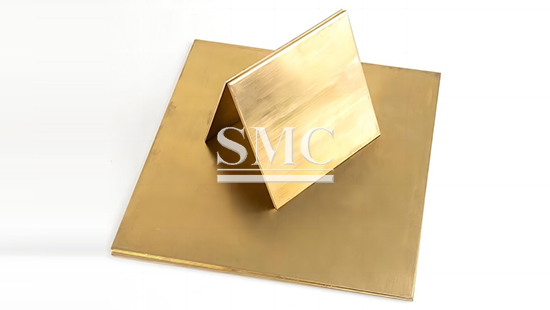

Bronze sheet/plate is a flat-rolled copper alloy product with tin as the primary alloying element. It is widely applied in marine engineering, chemical processing, electrical manufacturing, and architectural decoration. This material effectively solves problems of seawater corrosion, mechanical wear, and electrical conductivity. For example, it is used to fabricate ship propellers, valve parts, bearing bushes, and electrical spring contacts. With high fatigue resistance and thermal conductivity, bronze plates extend the service life of equipment operating in harsh environments.

If you want to know more about our category (Copper, Aluminum, Stainless Steel) products or bronze sheet/plate price please feel free to contact us, we will reply you within 24 hours.

1. Material Composition: Copper (Cu) base metal with Tin (Sn) as primary alloying element. Trace elements (P, Al, Mn, Si) can be added on request.

2. Product Structure: Solid flat sheet/plate, uniform thickness (0.1–50 mm), dense single-phase or dual-phase metallic microstructure.

3. Role of Components: Copper matrix provides electrical and thermal conductivity; dissolved tin and trace elements enhance strength, hardness, wear, and seawater corrosion resistance.

4. Structural Differences: By alloy — Phosphor Bronze (high elasticity), Aluminum Bronze (high corrosion/high strength), Silicon Bronze (good weldability); by temper — Soft (O), Half-Hard (H02), Hard (H04).

5. Application Scenarios: Phosphor bronze for spring contacts and wear bearings; aluminum bronze for propellers and desalination pipes; silicon bronze for chemical containers and corrosion-resistant structures.

1. Superior Corrosion Resistance: Resists seawater, acids, and industrial chemicals, extending equipment life and cutting maintenance costs.

2. High Wear Resistance: Tin-rich matrix with low friction and high surface hardness minimizes wear under high load and friction, ensuring reliability.

3. Excellent Electrical & Thermal Conductivity: Efficient heat dissipation and stable current transfer improve energy efficiency and prevent overheating.

4. Good Machinability & Formability: Easily cut, punched, welded, and cold-worked without cracking, accelerating production and cutting costs.

5. High Fatigue Strength: Resists cracking and fatigue under cyclic loading and vibration, ensuring integrity in springs, bushings, and bearings.

6. Non-Sparking & Non-Magnetic: Non-magnetic, no sparks on impact or friction, enhancing safety in hazardous areas and compatibility with sensitive electronics..

1. Marine Engineering: Ship propellers and seawater pump bodies; aluminum bronze (10–50 mm) resists corrosion and cavitation.

2. Electrical & Electronics: Relay contacts and connectors; phosphor bronze (0.1–2 mm, hard) offers elasticity and conductivity.

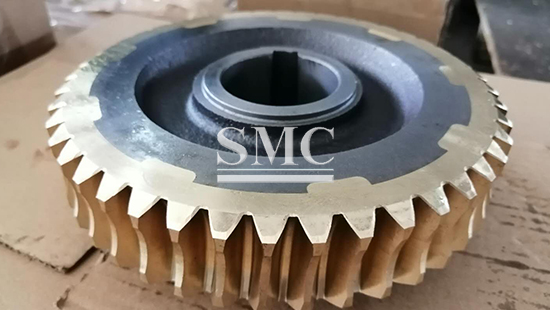

3. Heavy Machinery: Bearing bushes and worm gears; tin bronze (5–20 mm) provides low friction and high load capacity.

4. Chemical Processing: Reactor liners and acid-resistant flanges; silicon bronze (3–15 mm) resists chemicals with good weldability.

Parameters of Aluminum Bronze Sheet:

(Customized sizes are accepted)

Annealed Size	Yield MPa Strength min.	UTS MPa min.	Elongation % min.
Up to 25.4mm	469	758	10
Over 25.4mm to 50.8mm	414	758	10
Over 50.8mm to 76.2mm	379	724	10

Heat Treatment of Aluminum Bronze Sheet:

Condition	Tool Type	Cut Depth mm	Speed m/min.	Feed mm/rev.
Annealed	Carbide	3.0 – 6.0 roughing	30 – 60	0.25
		0.12 – 0.25 finishing	120 – 180	0.12

Parameters of Silicon Bronze Sheet/Plate:

Thickness (mm)	Weight (Per Sq.Ft.)	Weight (Per Sheet)	Standard Size
0.025	1.1 lbs.	22 lbs.	24 x 120
0.047	2.2 lbs.	44 lbs.	24 x 120
0.063	2.9 lbs.	58 lbs.	24 x 120
0.094	4.2 lbs.	84 lbs.	24 x 120
0.125	5.7 lbs.	114 lbs.	24 x 120
0.187	8.6 lbs.	172 lbs.	24 x 120
0.25	11.4 lbs.	228 lbs.	24 x 120
0.375	17.1 lbs.	547 lbs.	48 x 96
0.5	22.8 lbs.	730 lbs.	48 x 96
0.75	34.2 lbs.	1,075 lbs.	48 x 96
1	44.8 lbs.	1,434 lbs.	48 x 96

Physical Properties of Silicon Bronze Sheet/Plate:

Property	Value
Melting Point (Liquidus)	1790F
Melting Point (Solidus)	1590F
Pouring Temperature (Light)	2000–2150F
Pouring Temperature (Heavy)	1850–1950F
Density	0.302 lb/cu. in.

Joining Technique	Suitability
Soldering	Good
Brazing	Excellent
Oxyacetylene Welding	Good
Gas Shielded Arc Welding	Excellent
Coated Metal Arc Welding	Fair
Spot Weld	Excellent
Seam Weld	Excellent
Butt Weld	Excellent
Capacity for Being Cold Worked	Excellent
Capacity for Being Hot Formed	Excellent
Forgeability Rating	40
Machinability Rating	30

Mechanical Properties of Silicon Bronze Sheet/Plate:

Property	Value 1	Value 2	Note
Hardness, Rockwell B	95	95
Tensile Strength, Ultimate	745 MPa	108000 psi
Tensile Strength, Yield	415 MPa	60200 psi	0.5% extension under load
Elongation at Break	13%	13%	In 50 mm
Modulus of Elasticity	105 GPa	15200 ksi
Poisson's Ratio	0.346	0.346
Machinability	30%	30%	UNS C36000 (free-cutting brass) = 100%
Shear Modulus	39 GPa	5660 ksi
Shear Strength	425 MPa	61600 psi

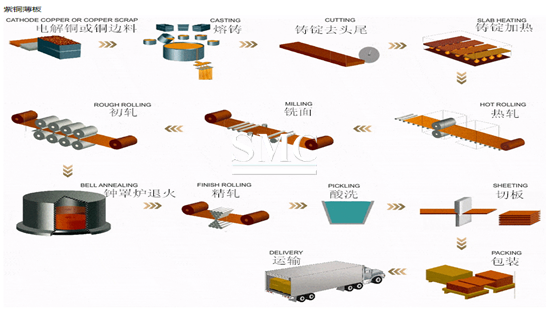

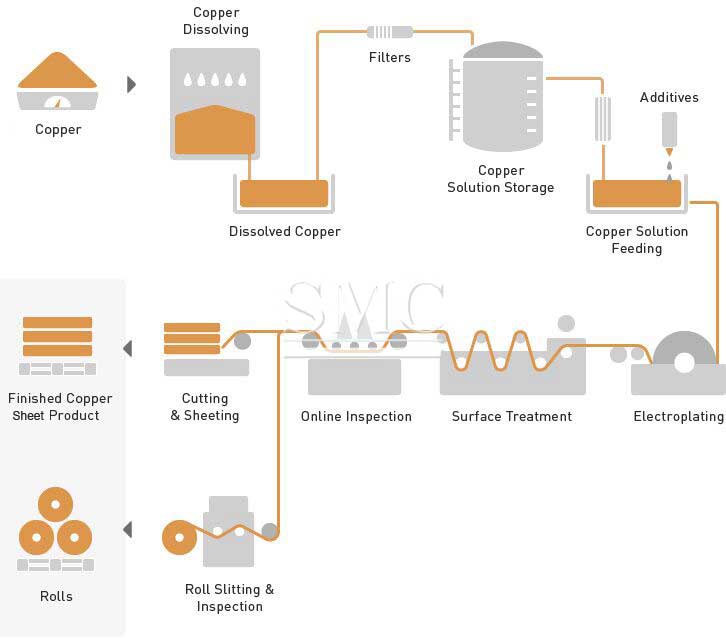

Manufacturing of Bronze Sheet / Plate

Standard Packaging

Bronze sheets/plates are wrapped with protective PE film to prevent oxidation, secured with end caps, and packed in reinforced export cartons or fumigated wooden pallets. Standard pallet weight: 500-1000kg. Custom dimensions (e.g., 1000x2000mm) are available upon request.

Shipping

We support FCL and LCL sea freight, air freight, and express delivery based on order quantity and destination. Available trade terms: EXW, FOB, CIF. Shipping costs are calculated based on cargo volume, gross weight, destination, and selected transportation method.

Lead Time

Samples: 3–7 working days

Standard orders: 25–35 working days

Customized orders: 35–50 working days

1. How long does sample preparation take?

It takes 3-7 working days.

2. What information do you need for a custom quotation?

Alloy grade (e.g., C93200), dimensions (thickness/width/length), surface treatment, and order quantity.

3. What is the MOQ and production lead time?

MOQ is 500kg. Standard orders take 15-25 working days; customized orders take 25-40 working days.

4. What factors should I consider when choosing bronze sheet/plate?

Consider the application environment (e.g., seawater needs high corrosion resistance), required hardness, electrical/thermal conductivity, and fabrication method (e.g., welding).

5. What is the difference between Phosphor Bronze and Aluminum Bronze?

Phosphor bronze offers high elasticity and wear resistance for electrical springs. Aluminum bronze provides higher strength and seawater corrosion resistance for marine and heavy-duty parts.

6. What quality standards does the product meet?

It meets ASTM and GB/T standards. Material Test Certificates (MTC) and third-party inspection reports (SGS) are available.
