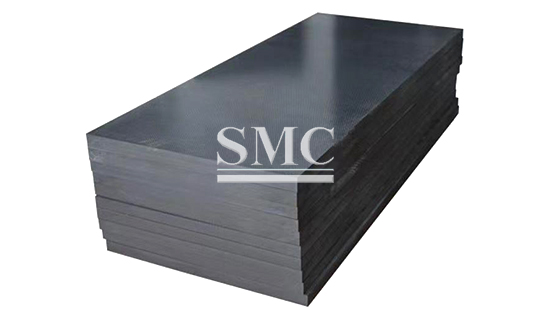

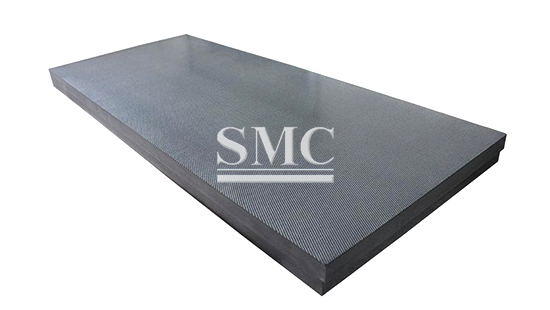

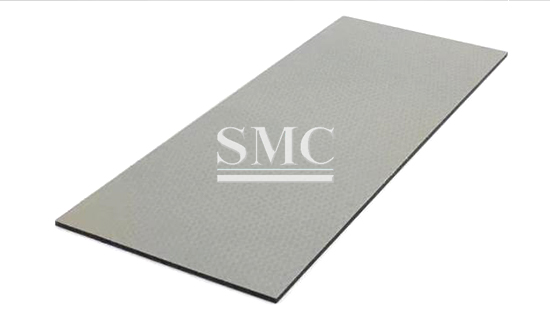

CF/PEEK Composited Sheet
Size: 200*155-1200*1000mm
Carbon Fiber content: 45-60vol%
Color: black
Shanghai Metal Corporation is a leading CF/PEEK Thermoplastic Composite Sheet manufacturer and supplier.
Continuous CF/PEEK composite material refers to the continuous carbon fiber CF as the reinforcing body, to the first of the special engineering plastics PEEK as the matrix, the two through the high temperature and high pressure molding process molding, the resin material immersed in carbon fibers, the two organic combination of a composite material.
Our self-developed continuous carbon fiber CF/PEEK thermoplastic composites are more heat-resistant and stronger than traditional carbon fiber-reinforced thermoset composites, as well as more environmentally friendly for secondary use.
If you want to know more about our PEEK products or CF/PEEK Thermoplastic Composite Sheet price please feel free to contact us, we will reply you within 24 hours.
|
Carbon Fiber/PEEK composite sheet performance table |
|||||
|
Item |
Unit |
One way belt 0°+0° |
One way belt 0°+*90° |
Two way prepreg cloth |
Test standard |
|
Carbon Fiber Mass Content |
% |
66 |
66 |
60 |
ASTM D3526 |
|
Density |
g/cm³ |
1.58 |
1.58 |
1.55 |
ASTM D792 |
|
Hardness |
/ |
105 |
104 |
102 |
ASTM D785 |
|
Tensile Strength |
Mpa |
2200 |
880 |
700 |
ASTM D3039 |
|
Tensile Modulus |
Gpa |
130 |
73 |
70 |
ASTM D3039 |
|
Flexural Strength |
Mpa |
2000 |
1400 |
900 |
ASTM D7264 |
|
Flexural Modulus |
Gpa |
116 |
65 |
73 |
ASTM D7264 |
|
Comperssive Strength |
Mpa |
1200 |
670 |
630 |
ASTM D6641 |
|
Compressive Modulus |
Gpa |
120 |
60 |
56 |
ASTM D6641 |
|
Distrotion Temperature |
℃ |
332 |
332 |
332 |
ASTM D648 |
|
Compression Strength After Impact |
Mpa |
220 |
225 |
230 |
ASTM D7137 |
|
Type 1Interbeedded Fracture Toughness |
J/m² |
1400 |
1410 |
1430 |
ASTM D5528 |
|
Short Beam Intensity |
Mpa |
110 |
100 |
80 |
ASTM D2344 |
|
0.5%In-plane Shear Strength-0.5% |
Mpa |
130 |
130 |
110 |
ASTM D3518 |
|
In-plate Shera Modulus |
Gpa |
5.2 |
5.2 |
5.2 |
ASTM D3518 |

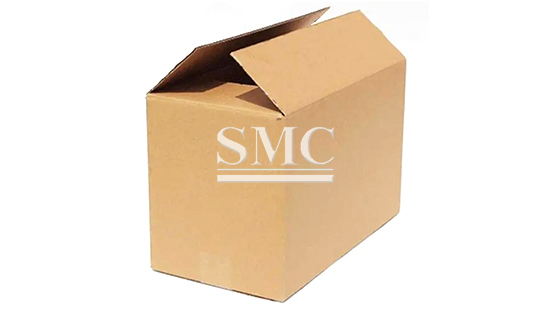

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
