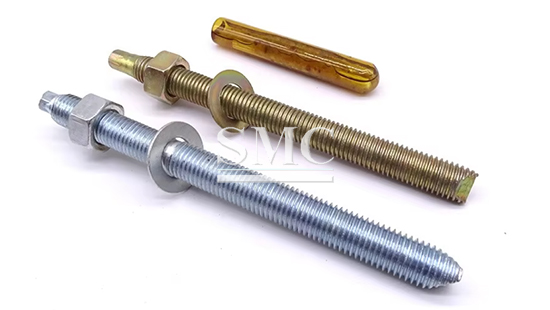

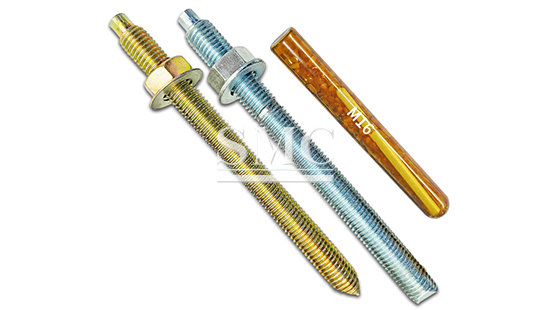

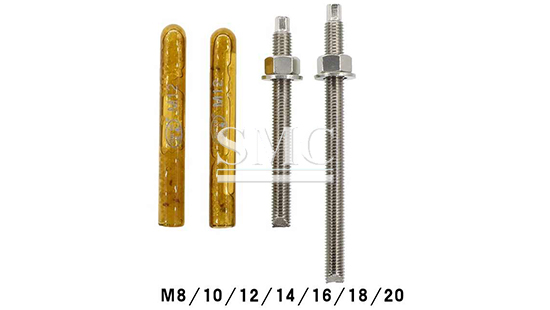

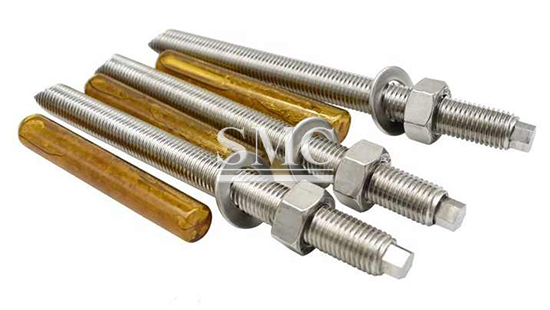

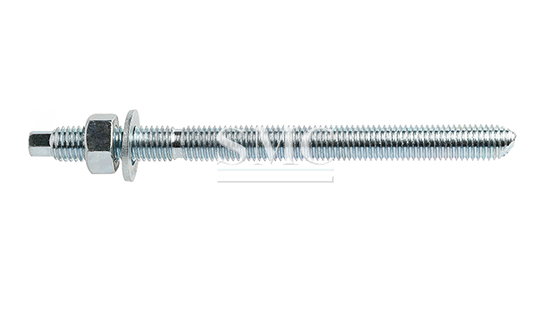

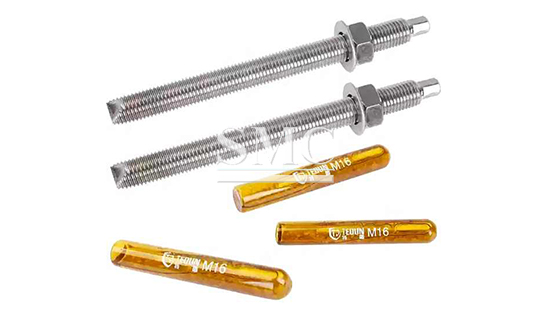

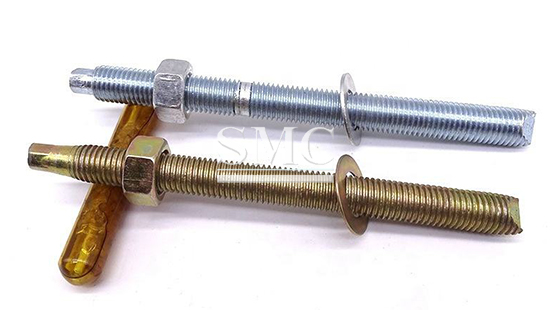

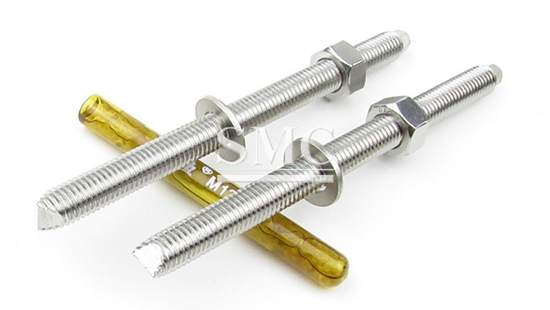

Chemical Anchor
Thread Size: M5-M36
Length: 80-800mm or customizable
Grade: Class 4.8/ 6.8/ 8.8/ 10.9/ 12.9
Shanghai Metal Corporation is a professional manufacturer and supplier of Chemical Anchor with high quality and reasonable price.
Chemical anchors are a commonly used curing substance that can make objects more firmly bonded to surfaces. After the chemical solidifies, it solidifies into a hard substance with strong shear strength and durability. However, the setting time of the chemical is a factor that needs attention. Because too long or too short a setting time may affect the performance of the chemical.
The setting time of chemical anchors depends on the specific product and environmental conditions. Generally, the setting time of chemical anchors varies from 30 minutes to 24 hours. Within this time frame, we need to keep the temperature in the area where the anchor is located stable to ensure that the anchor is properly set and fixed.
Note: If the ambient temperature is too low, the setting time of the anchor may be extended.
If you want to know more about Chemical Anchor price please feel free to contact us, we will reply you within 24 hours
Technical Information of Chemical Anchor:
Our high strength chemical anchor bolt adopts advanced technology, reasonable design, strong anchoring force, easy to use, the resin glue liquid in the drug tube is made of high-quality materials, with better stability and reliability.The vinyl resin used does not contain styrene, environmental protection, non-toxic, more safe to use.Product featuresEasy to operate, large anchorage force, good endurance, in the wet drilling hole can reach enough anchorage force, new chemical materials do not produce expansion force, waterresistance, resistance to medium, resistance to welding.
|
anchor size(d xL) |
max fast thickness |
anchor size(d xL) |
max fast thickness |
|
M6X40 |
3 |
M10X115 |
55 |
|
M6X55 |
15 |
M10X120 |
60 |
|
M6X70 |
30 |
M10X130 |
70 |
|
M6X95 |
55 |
M12X80 |
20 |
|
M8X50 |
10 |
M12X115 |
30 |
|
M8X65 |
20 |
M12X120 |
50 |
|
M8X80 |
35 |
M12X135 |
65 |
|
M8X95 |
50 |
M12X150 |
80 |
|
M8X105 |
60 |
M16X105 |
15 |
|
M8X120 |
75 |
M16X140 |
40 |
|
M8X165 |
135 |
M16X180 |
80 |
|
M10X65 |
15 |
M20X125 |
15 |
|
M10X80 |
20 |
M20X160 |
40 |
|
M10X95 |
35 |
M20X180 |
80 |
|
Notes: The above parameter is only for reference,the product is subject to the actual dimension. |
|||

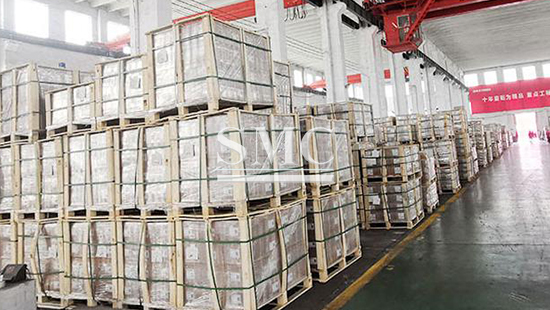

Packaging of chemical anchor:
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
