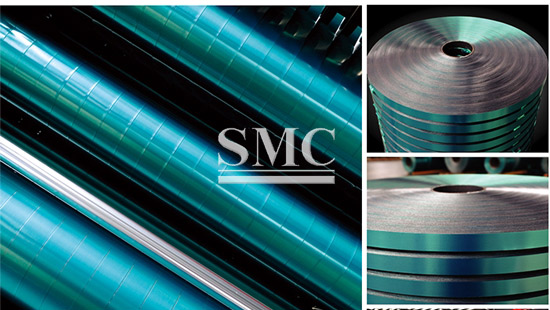

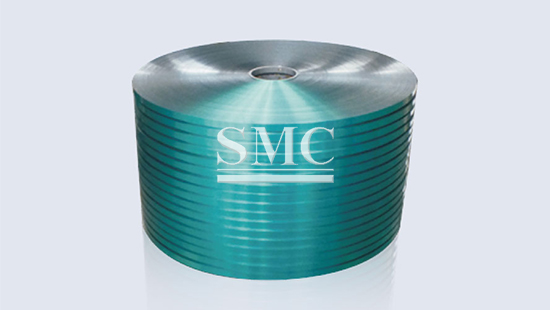

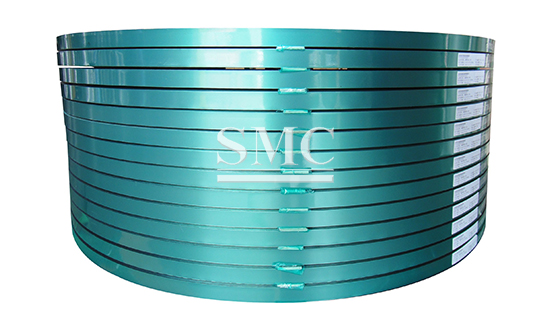

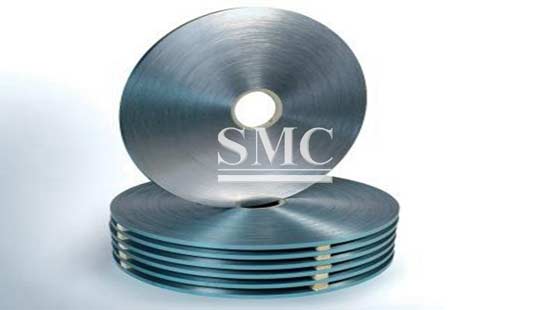

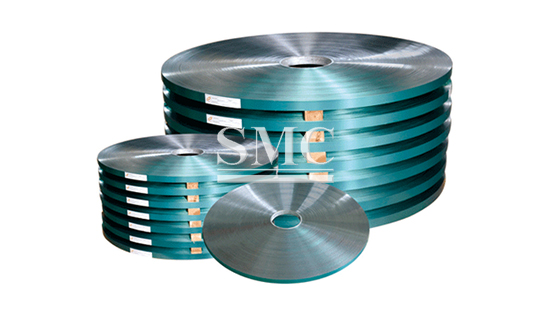

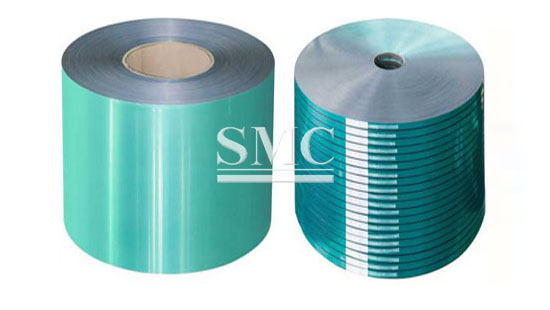

Copolymer Coated Steel Tape for Cable Armoring

    Tensile strength: 300 - 420MPa


    Elongation: min. 15%


    Reel width: 15 - 405mm

Copolymer Coated Steel Tape, consist of a steel tape coted on both sides with green color adherent ethylene copolymer.The copolymer exhibits excellent adhesion to the steel substrate and has the chemical resistance and general characteristics of low density polyethylene. It bonds to LDPE, LLDPE, MDPE and HDPE. The steel is low carbon, electrolytic chrome coated steel tape tempered to T-2 surface condition for excellent formability and fabrication characteristics. Copolymer Coated Steel Tape Armor protects fiber optic cables from rodent attacks, lightning strikes, corrosive chemicals, mechanical damage and water damage


Type

Standard

Thickness

Color

EGE-25

YD/T723.3-94

Steel(mm)

EAA(mm)

Total(mm)

White, Green

Width from 12 to 700mm

0.15,0.13,0.12±0.01

0.058±0.013

0.25,0.23,0.22±0.015



Property

Unit

Typical value

Test method

Tensile Strength

MPa

310-390

ASTM E8

Elongation at break

%

&=15

ASTM E8

Peel strength

N/cm

&=6.13

ASTM B 736

Heat seal strength

N/cm

&=17.5

ASTM B 736

Filler/Floodant Resistance 68±1°C,168hrs

-

No delamination

REA PE-39,PE-89

Water Resistance

68±1°C,168hrs Peel strength

N/cm

6.13

ASTM B 736

Dielectric Strength

Two-side, DC2KV, 1 min

-

-

No break

Corrosion Resistance

Grade

7

-

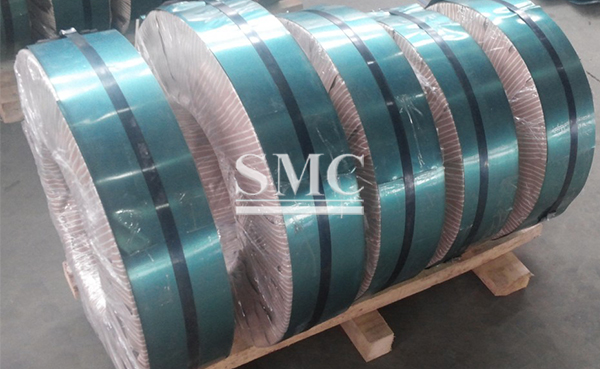

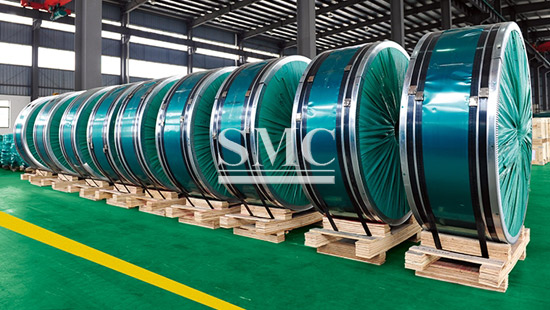

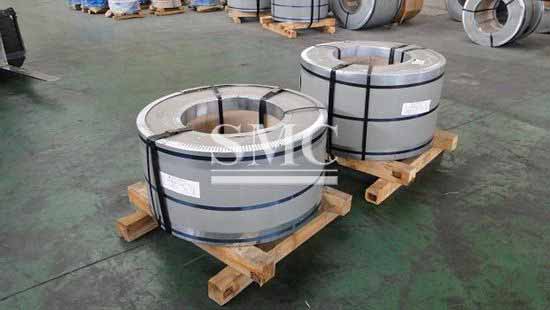

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization


Service

To meet the entirety of our customers business needs, Shanghai Metal Corporation offers its services as a “One-Stop Shop” for business services including Purchasing, Value-Added Manufacturing, Packaging/Labeling, and Delivery. Shanghai Metal Corporation prides itself on achieving superior results and satisfying customer needs. In this, we earnestly strive to fulfill our role as trustworthy and reliable supplier of business services throughout the entire world.

Our Value-Added Manufacturing Services not only save our customer time from having to out-source, but also spare them the cost of dealing with several disparate shops and deadlines.

Applications of Copolymer Coated Steel Tape for Cable:

- Optical fibre cable armoring and wrapping

- Stamping parts

- Interface, etc.
