Steel Section

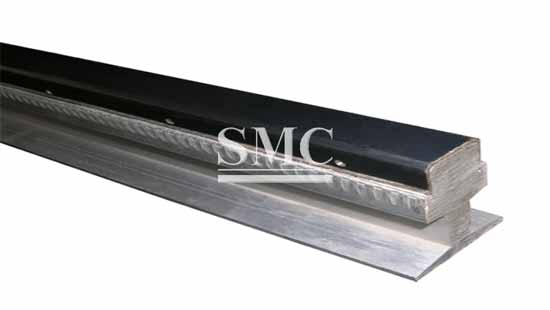

Crane Rail

    Grade: Q235,50Q,50Mn,55Q,U71Mn,U75V



    Type: Light Rail



    Standard: AISI, ASTM, GB

Shanghai Metal Corporation is a leading Crane Rail manufacture and supplier, ability to stick to tight customer delivery schedules and global shipping capability make us a natural choice for major projects worldwide, working alongside leading crane rail installers.

With a regular rolling programme of each rail size coupled with our dedicated crane rail stock-holding facilities, we offer customers all over the world just-in-time delivery.

Whether for overhead gantry or floor mounted-cranes, we understand that consistency of product is critical. Our rail is checked for straightness and quality in our dedicated inspection facility.


  • Rail

    Crane

    Heavy duty transportation

    Crane tower

Technical Information of Crane Rail:



Commodity

Size (kg/m)

Material (Grade)

Standard

Sectional Dimension (mm)

Theory Weight (kg/m)

Length (m/pc)

Packed in Bundle with Iron Wire (pcs/bundle)

Head

Height

Bottom

Web

Light Rail

8

Q235

Q/YG01-2014

24.00

63.50

52.50

6.50

8.42

6.00

55

12

Q235

GB11264-2012

38.10

69.85

69.85

7.54

12.20

36

15

Q235/55Q

GB11264-2012

42.86

79.37

79.37

8.33

15.20

68910

28

18

Q235/55Q

GB11264-2012

40.00

90.00

80.00

10.00

18.06

21

22

Q235/55Q

GB11264-2012

50.80

93.66

93.66

10.72

22.30

21

24

Q235/55Q

GB11264-2012

51.00

107.00

107.00

10.90

24.46

21

30

Q235/55Q

GB11264-2012

60.33

107.95

107.95

12.30

30.10

15



Commodity

Size (kg/m)

Material (Grade)

Standard

Sectional Dimension (mm)

Theory Weight (kg/m)

Length (m/pc)

Packed in Bundle with Iron Wire (pcs/bundle)

Head

Height

Bottom

Web

Heavy Rail

38

U71Mn

GB2585-2007

68.00

134.00

114.00

13.00

38.73

1212.5

10

43

U71Mn

GB2585-2007

70.00

140.00

114.00

14.50

44.65

10

50

U71Mn

GB2585-2007

70.00

152.00

132.00

15.50

51.51

10



Type

Size (kg/m)

Material (Grade)

Sectional Dimension (mm)

Theory Weight (kg/m)

Length (m/pc)

Head

Height

Bottom

Web

QU70

53

U71Mn

70

120

120

28

52.80

12

QU80

64

U71Mn

80

130

130

32

63.69

12

QU100

89

U71Mn

100

150

150

38

88.96

12

QU120

118

U71Mn

120

170

170

44

118.10

12



Type

Material (Grade)

Sectional Dimension (mm)

Theory Weight (kg/m)

Height

Bottom

Head A

Head B

Channel A

Channel B

Web

59R1

U71Mn

180

180

113

56

42

15

12

58.97

59R2

U71Mn

180

180

113

55.83

42.52

14.65

12

58.14

60R1

U71Mn

180

180

113

36

36

21

12

60.59

60R2

U71Mn

180

180

113

36

36.34

21

12

59.75



Type

Material (Grade)

Sectional Dimension (mm)

Theory Weight (kg/m)

Length (m)

Head

Height

Bottom

Web

A55

900A

55

65

150

31

31.80

10 to 12

A65

900A

65

75

175

38

43.10

10 to 12

A75

900A

75

85

200

45

56.20

10 to 12

A100

900A

100

95

200

60

74.30

10 to 12

A120

900A

120

105

220

72

100.00

10 to 12

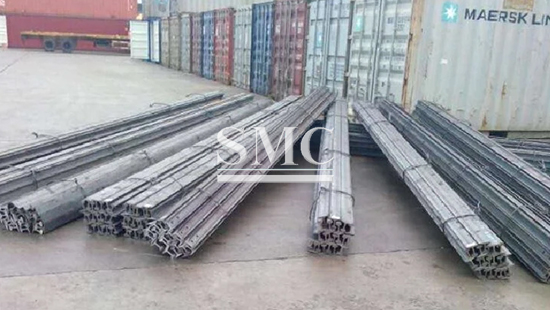

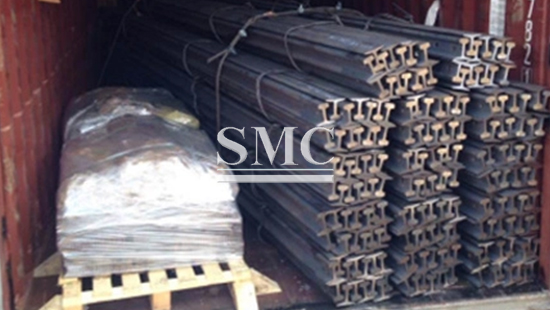

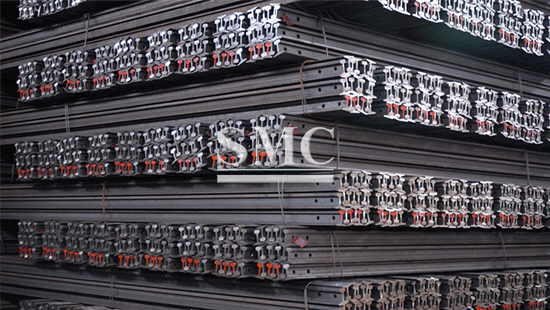

Packaging of Crane Rail:



Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests.


Great care is taken to avoid any damage which might be caused during storage or transportation.


In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization






Application of Crane Rail:

- Rail

- Crane

- Heavy duty transportation

- Crane tower
