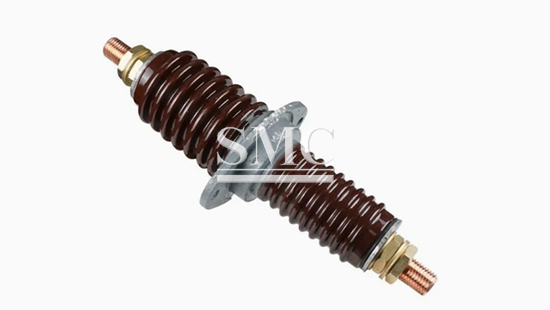

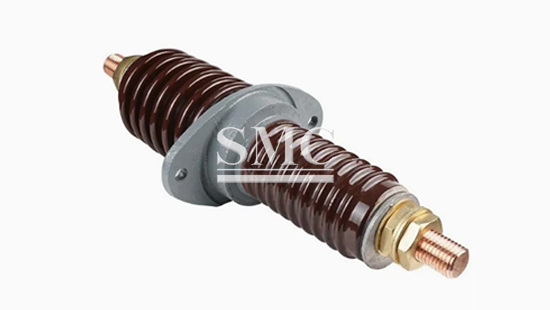

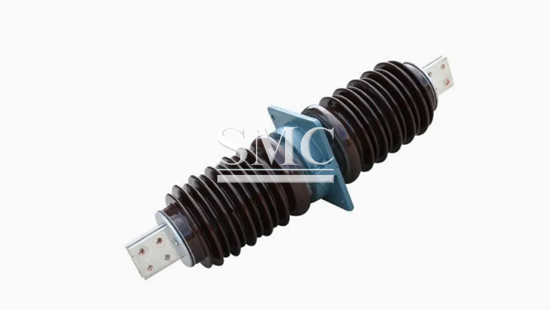

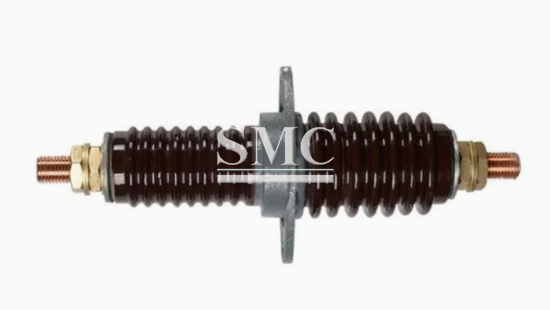

CWB High Voltage Ceramic Wall Bushing

Customization: Available

Application: High-voltage, High-temperature

Material: Ceramic

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of CWB High Voltage Ceramic Wall Bushing with high quality and reasonable price.

Ceramic Wall Bushing are suitable for power stations, substations, power distribution devices and high-voltage electrical appliances with power frequency AC voltage below 35kV. They are used as insulation and support for conductive parts passing through walls or other grounding objects. The bushings are suitable for ambient temperature -40~+40ºC.

If you want to know more about CWB High Voltage Ceramic Wall Bushing price please feel free to contact us, we will reply you within 24 hours

Rated Voltage: 10-35KV
Type: Insulator
Connection Method: Trough Type
Size of Bearing Capacity 300KN
Certification: CCC, CE, ISO9001

Easy Installation, Light Weight, Safe

High Voltage Power Transmission, Insulation, Driving, Electrical Installation.
Widely used in power plants, steel plants, cement plants, various large-scale industries, wood products, mills and sand mills, etc.

Technical Information of CWB High Voltage Ceramic Wall Bushing:

Model	Rigure No.	Rated Voltage (kV)	Rated Current (A)	Short Time Current for 5s(A) Not less than	Working voltage(kV) not less than			BIL kV Peak not less than	Bending Failure Load kN not less than	Weight (Kg)
Model	Rigure No.	Rated Voltage (kV)	Rated Current (A)	Short Time Current for 5s(A) Not less than	Dry Tolerance	Wet Tolerance	Breakdown	BIL kV Peak not less than	Bending Failure Load kN not less than	Weight (Kg)
CWB-10/400	5	10	400	7.2	47	34	75	80	7.5	10
CWB-10/600	5	10	600	12	47	34	75	80	7.5	12
CWB-10/1000	5	10	1000	20	47	34	75	80	7.5	14.5
CWB-10/1500	5	10	1500	30	47	34	75	80	7.5	17
18KW/1600A	6	18	1600	30	75	50	120	125	7.5	67.7
18KW/6300A	7	18	6300	30	75	50	120	125	16	120

Model	Rigure No.	Rated Voltage (kV)	Rated Current (A)	Short Time Current for 5s(A) Not less than	Nominal Creepage Distance at outdoor end(mm)	Working voltage(kV) not less than				BIL kV Peak not less than	Bending Failure Load kN not less than	Weight (Kg)
Model	Rigure No.	Rated Voltage (kV)	Rated Current (A)	Short Time Current for 5s(A) Not less than		Dry Tolerance	Wet Tolerance	Breakdown	Visible Corona	BIL kV Peak not less than	Bending Failure Load kN not less than	Weight (Kg)
CWB-35/400	8	35	400	7.2	595	110	80	176	25.8	195	7.5	33
CWB-35/600	8	35	600	12	595	110	80	176	25.8	195	7.5	35.5
CWB-35/1000	8	35	1000	20	595	110	80	176	25.8	195	7.5	37.5
CWB-35/1500	8	35	1500	30	595	110	80	176	25.8	195	7.5	39.5
CWWB-35/2000-3	9	35	2000	40	810	110	80	176	25.8	195	7.5	73
CWWB2-35/2000-3	10	35	2000	40	810	110	80	176	25.8	195	7.5	74

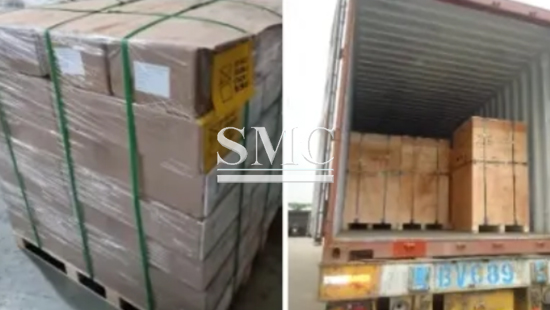

Packaging of CWB High Voltage Ceramic Wall Bushing:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
