Size: DN40-DN1800

Standard: ISO2531, GB/ T13295

Usage: Widely used in connecting various pipelines to convey gas, water, oil and so on

Product Detail | Technical Information | Packaging

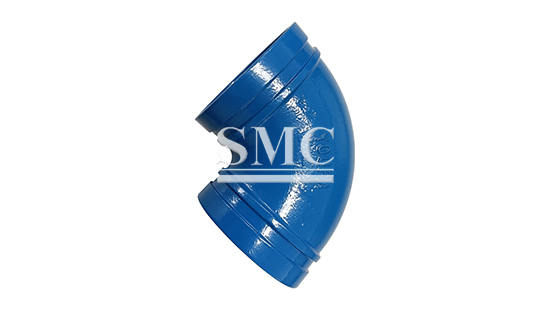

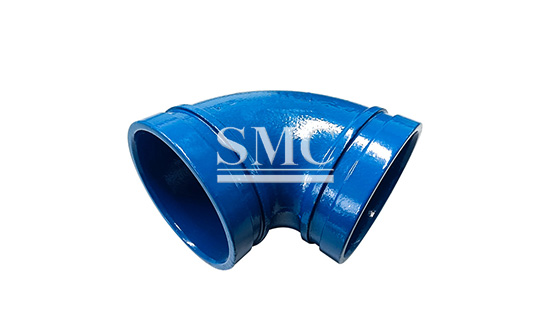

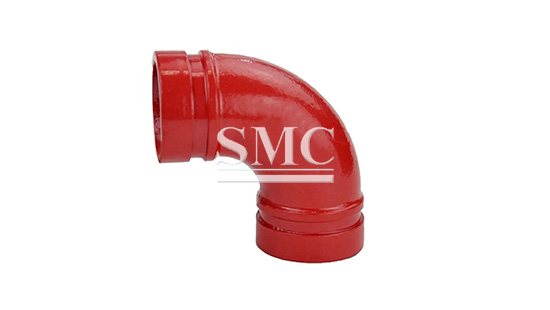

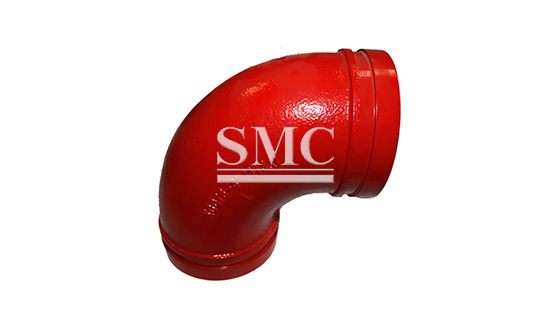

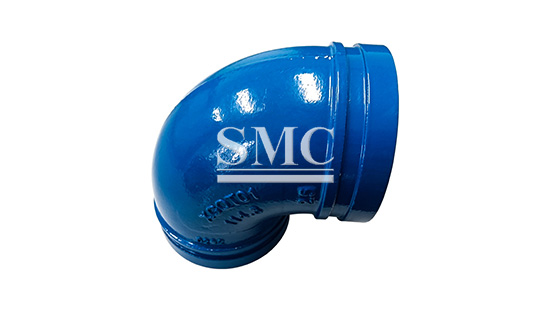

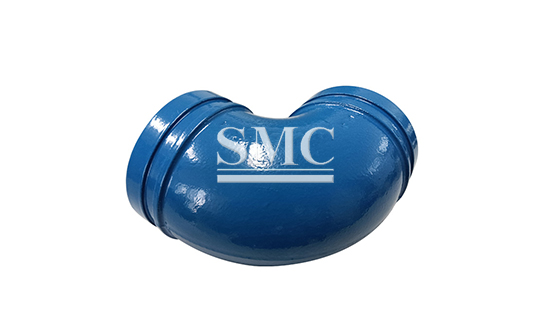

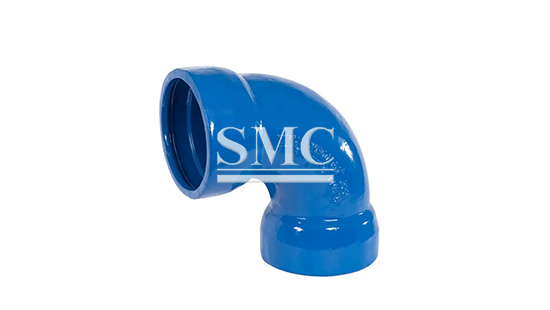

Product Detail

Shanghai Metal Corporation is a leading Ductile Iron Double Socket Bend/ Elbow manufacturer and supplier.

Ductile iron pipe fittings are made of magnesium or rare earth magnesium combined with gold spheroidizing agent, which is added into molten iron before pouring to spheroidize graphite to reduce stress concentration, so the pipe fittings have high strength, good toughness, high elongation, impact resistance, corrosion resistance and good sealing, as well as convenient installation of flexible interface, strong seismic resistance and low labor intensity.

In this reason, ductile iron pipe fitings can bear high water pressure, resist external load and adapt to the changes of geological conditions. It can be applied to sections with poor geology and cross highways without additional processing of steel pipes. In addition, with strong corrosion resistance, it can be aplied to coastal and saline alkali areas.It is widely used in large-scale underground pipeline engineering.

If you want to know more about our Ductile Iron Double Socket Bend/ Elbow, please feel free to contact us, we will reply you within 24 hours.

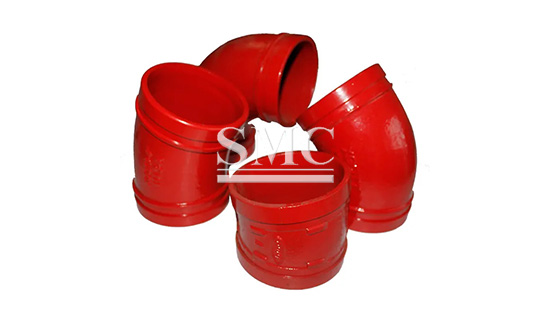

1. Type: 90°/ 45°/ 22.5°/ 11.25°

2. Connecting way: Butt welding type, socket type, ferrule type, and threaded type

3. Tensile strength ≥ 310Mpa

4. Elongation ≥ 10%

5. Hardness ≤ 150 HB

6.Testing pressure:2.5Mpa

7. Working pressure: 1.6Mpa

8. Surface treatment: Hot dipped galvanized , electric galvanized, baked galvanized, black

9. Edges: Banded, beaded or plain, with ribs or without ribs

10. Color: red, blue, black

1. With high strength, good toughness, high elongation.

2. The product has a long service life and can be installed easily.

3. Strong corrosion resistance.

4. Good sealing.

1.Connect ductile iron pipes from the water source to waterworks or house.

2. It can be involved in the entire water cycle process including drinking water, raw water; Wastewater, or reclaimed water; Surface or underground water filtration; Seawater desalination, water treatment and storage.

Technical Information of Ductile Iron Double-Socket Bend/ Elbow:

DN/ mm	e/mm	R/ mm	t/ mm	Total Weight (kg)		Standard
DN/ mm	e/mm	R/ mm	t/ mm	T type	K type	Standard
40	7	40	60	4.2	/	ISO2531,GB/ T13295
50	7	50	70	5.3	/	ISO2531,GB/ T13295
60	7	60	80	6.3	/	ISO2531,GB/ T13295
65	7	65	85	6.9	/	ISO2531,GB/ T13295
80	7	80	100	8.6	11.1	ISO2531,GB/ T13295
100	7.2	90	110	11.4	16.2	ISO2531,GB/ T13295
125	7.5	122	145	15.7	19	ISO2531,GB/ T13295
150	7.8	150	170	20.5	25.5	ISO2531,GB/ T13295
200	8.4	200	220	33	37.4	ISO2531,GB/ T13295
250	9	245	270	48.5	51.3	ISO2531,GB/ T13295
300	9.6	295	320	68	80.5	ISO2531,GB/ T13295
350	10.2	345	370	98.4	109	ISO2531,GB/ T13295
400	10.8	395	420	129	139	ISO2531,GB/ T13295
450	11.4	440	470	163	172	ISO2531,GB/ T13295
500	12	490	520	204	210	ISO2531,GB/ T13295
600	13.2	590	620	303	300	ISO2531,GB/ T13295
700	14.4	690	720	436	428	ISO2531,GB/ T13295
800	15.6	785	820	595	572	ISO2531,GB/ T13295
900	16.8	885	920	793	778	ISO2531,GB/ T13295
1000	18	985	1020	1045	986	ISO2531,GB/ T13295
1100	19.2	1080	1120	1358	1176	ISO2531,GB/ T13295
1200	20.4	1180	1220	1663	1624	ISO2531,GB/ T13295
1400	22.8	1180	1220	2419	2419	ISO2531,GB/ T13295
1500	24	1225	1270	2985	2598	ISO2531,GB/ T13295
1600	25.2	1230	1290	3444	3014	ISO2531,GB/ T13295
1800	27.6	1260	1320	4283	3833	ISO2531,GB/ T13295

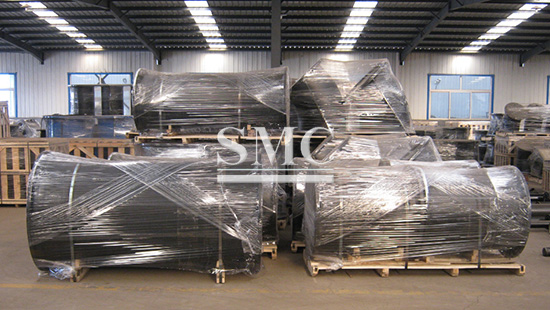

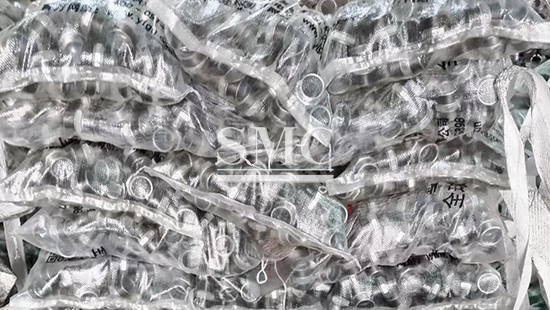

Packaging of Ductile Iron Double Socket Bend/ Elbow:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard

2)Customization
