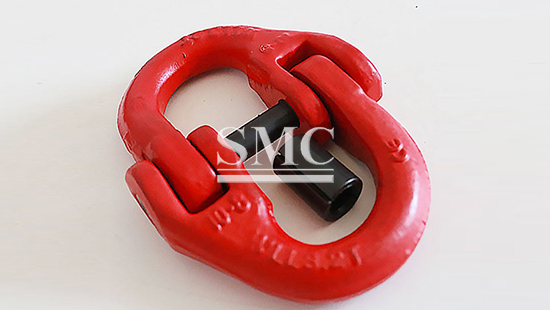

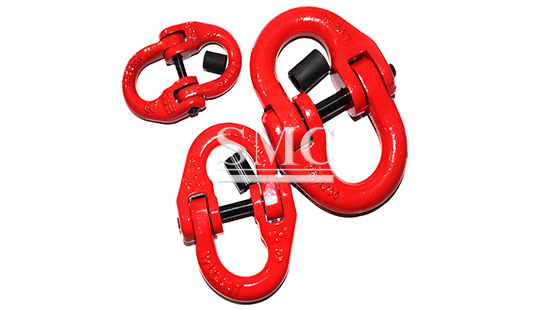

G80/G100 Europe Type Connecting Link
Grade: G80, G100
WLL: 1.12T, 2T, 5.3T, 8T, 10T, 15T, 21.2T, 31.5T, 45.3T
Technology: forged, quenched + tempered
Shanghai Metal Corporation is leading manufacturer of G80/G100 Europe type connecting link in China since 1980s.

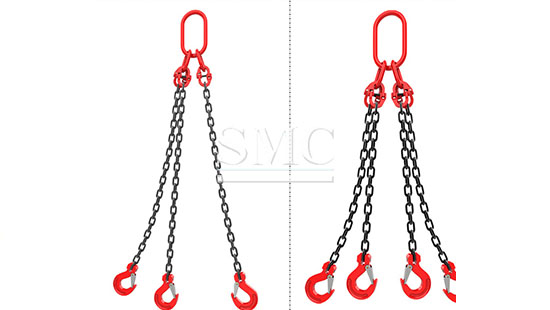

G80/G100 Europe type connecting link is a commonly used high-strength connecting accessory in the field of lifting rigging. It consists of two loop bodies connected by a central link, featuring a dual-loop design that provides enhanced load-bearing capacity and more stable connection performance. The Europe type connecting link is typically made from alloy steel and super alloy steel, undergoes heat treatment and surface finishing to ensure its strength and corrosion resistance. So, it is widely used in lifting, handling, and hoisting operations.
If you want to know more about G80/G100 Europe type connecting link price, please feel free to contact us, we will reply you within 24hours.

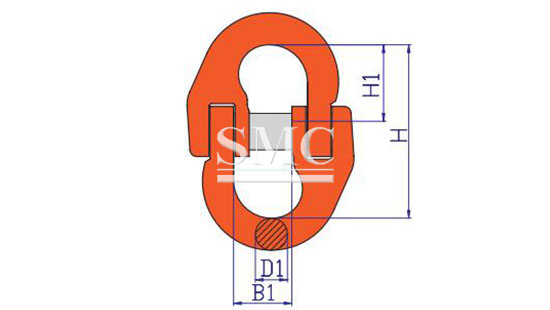

Technical Information of G80/G100 Europe Type Connecting Link:
| Size(mm) | Dimensions( mm) | W.L.L. (T) | Weight(KG) | |||
| B1 | D1 | H1 | H | |||
| 6 | 15.2 | 7.5 | 18.5 | 45.5 | 1.12 | 0.10 |
| 7 | 19.2 | 9.0 | 24.0 | 59.5 | 1.5 | 0.16 |
| 8 | 19.5 | 9.6 | 24.5 | 62.0 | 2 | 0.20 |
| 10 | 25.0 | 12.0 | 28.0 | 69.8 | 3.15 | 0.33 |
| 13 | 30.0 | 16.0 | 36.5 | 90.4 | 5.3 | 0.68 |
| 16 | 36.0 | 20.0 | 41.0 | 102.0 | 8 | 1.17 |
| 18 | 40.5 | 21.0 | 40.5 | 110.5 | 10 | 1.45 |
| 20 | 42.0 | 24.5 | 49.0 | 119.0 | 12.5 | 1.99 |
| 22 | 49.0 | 24.5 | 63.0 | 152.5 | 15 | 3.08 |
| 26 | 58.5 | 31.5 | 69.0 | 162.4 | 21.2 | 5.27 |
| 32 | 67.5 | 38.5 | 79.0 | 194.0 | 31.5 | 9.45 |
| 38 | 87.0 | 47.5 | 102.5 | 246.0 | 45.3 | 17.97 |

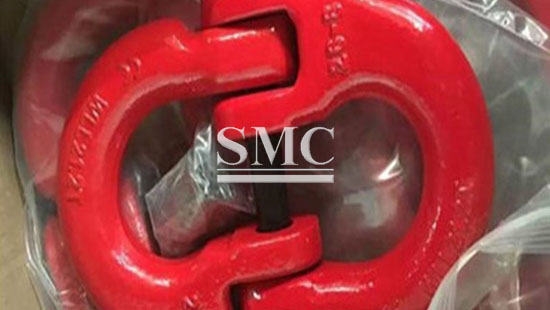

Packaging of G80/G100 Europe Type Connecting Link:
Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
