HCPTFE-1680-51 Tube Assembly

Material: CPVC, ePTFE

Outside diameter: 6mm

Wall thickness: 1mm

Length: 1680mm

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of HCPTFE-1680-51 Tube Assembly with high quality and reasonable price.

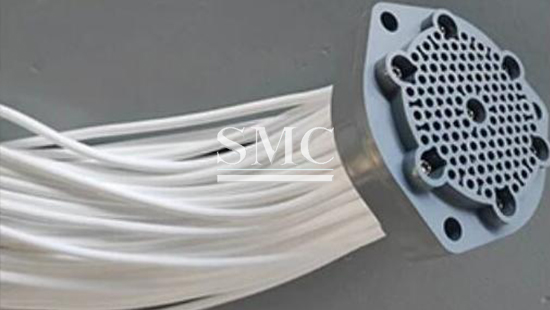

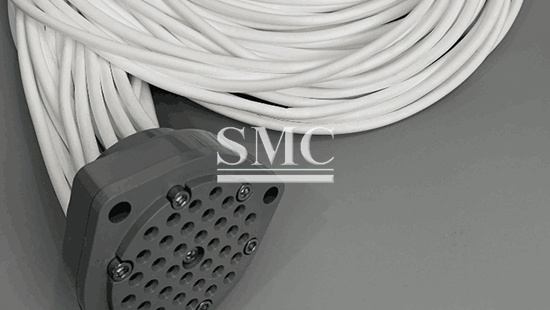

FCSF 51 root canal assembly, membrane tube is 6mm, wall thickness 1mm, membrane tube is 1680mm long and has a single-ended head

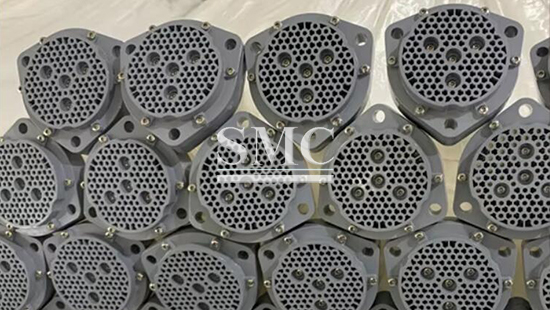

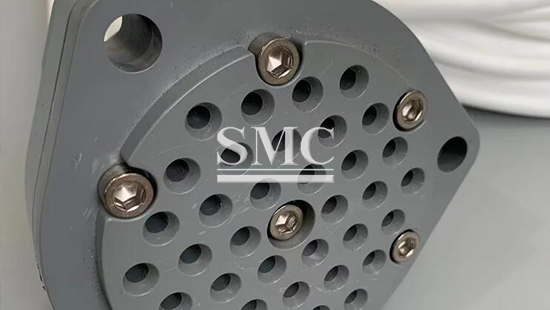

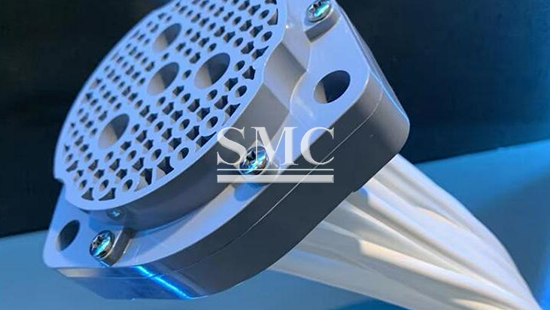

CThe end cap is CPVC material injection molding. External pressure type to block particles outside the assembly. No internal support, wider application range, better corrosion resistance, larger filtration area, longer backwash cycle and longer service life. Can be interchanged with Gore, Kaibo and other components as a whole,cover are related flower board correspond one by one. Align directly and screw on the nut. Mechanical anchoring structure, no clamps, etc.

If you want to know more about HCPTFE-1680-51 Tube Assembly price please feel free to contact us, we will reply you within 24 hours

1. Material: CPVC, ePTFE
2. Outside diameter: 6mm
3. Wall thickness: 1mm
4. Length: 1680mm

1. External pressure filtration for high-efficiency particle blocking. Single component effective filtration area is 1.5㎡, with high precision, suitable for large-flow and high-purity filtration.

2. Membrane tube of ePTFE, excellent chemical stability against acids, alkalis, oxidants and solvents. CPVC end cap, good corrosion and mechanical resistance. No internal support, wide application, less fluid resistance, better filtration and lower failure risk.

3. Interchangeable with Gore and Kemco components. End cap holes match flower plate bolts, easy installation. Mechanical anchoring, no clamp, ensuring system sealing and stability, less maintenance.

4. Strong corrosion resistance, long service life, reducing equipment costs. Long backwash cycle, saving resources and energy, extending component life.

5. Widely used in chemical, pharmaceutical, food, electronics and water treatment, with high universality and adaptability for different filtration needs.

Technical Information of HCPTFE-1680-51 Tube Assembly:

Technical Parameters of HCPTFE-1680-51 tube assembly
Specification	Effective filtering area	Aperture	Water flux	Operation temperature	Operating pressure
HCPTFE155-51	1.5㎡	0.2um	>0.3m³/h	≤200℃	0.02~0.05Mpa

Packaging of HCPTFE-1680-51 Tube Assembly:

Other features:

1. Wide and diverse applications: It plays a crucial role in various aspects of biopharmaceutical production to ensure the quality of drugs. In environmental protection projects, it is used for purifying industrial waste gas and treating landfill leachate. In the new energy field, it helps with the production of lithium batteries and the photovoltaic industry. It has rich application scenarios and is of great importance.

2. Stable and reliable operation: It can operate stably within a wide temperature range (-20°C to 150°C). The membrane has strong anti-pollution ability, good hydrophilicity and smoothness, which reduces the pollution speed and effectively ensures long-term and stable filtration.

3. Convenient cleaning and maintenance: It combines physical and chemical cleaning methods effectively. With a simple structure and no complicated vulnerable parts, it is easy to clean, and the cost and workload for repair and replacement are low.

4. Flexible and considerate customization: It can be customized according to customers' needs in terms of tube length, tube diameter and filtration precision to adapt to special working conditions. The connection method can also be adjusted as required, facilitating system integration.
