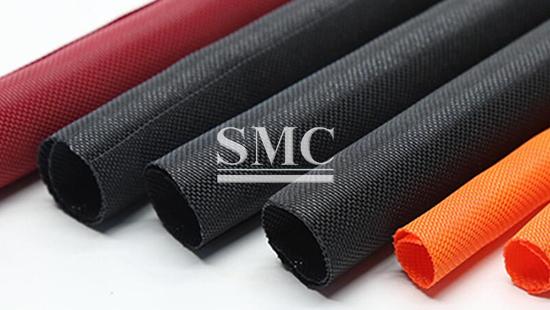

Self-Coiling Textile Sleeve

    Material: PET monofilament, polyester fiber



    Operating temperature: -40-150°C



    Melting point: 240±10°C



    Flame retardant grade: Refer to UL94 and meet V-1 grade

Shanghai Metal Corporation is a professional manufacturer and supplier of Self-Coiling Textile Sleeve with high quality and reasonable price.

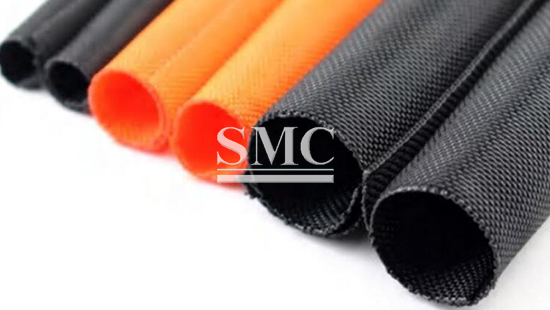

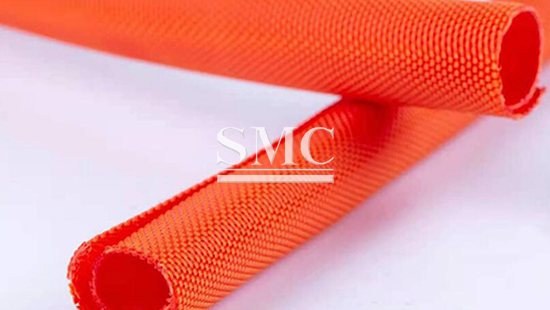

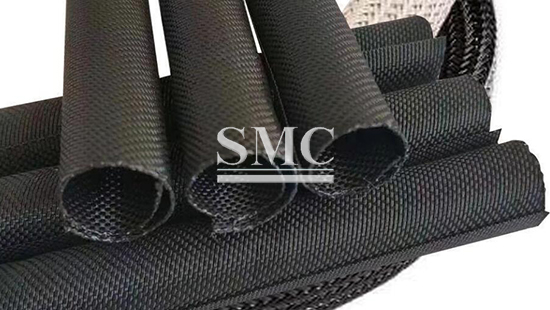

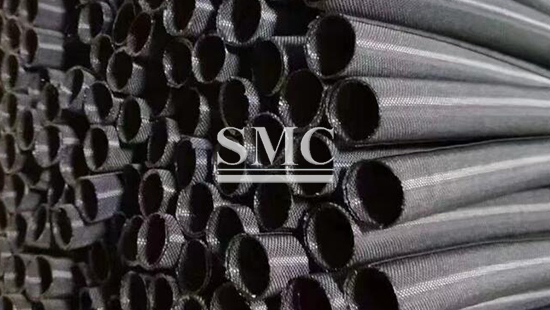

The self-coiling textile sleeve is a unique and practical product. It is made of textile materials and has the remarkable characteristic of being able to coil on its own. This feature makes it extremely convenient to use as it can be easily wrapped around various objects without the need for additional tools.

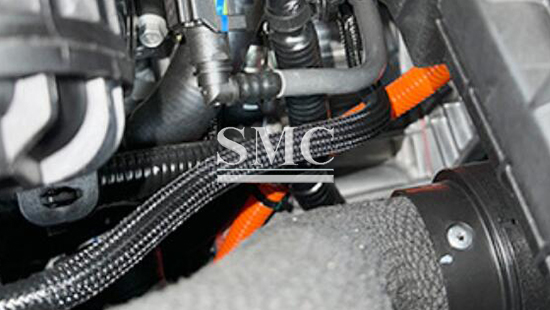

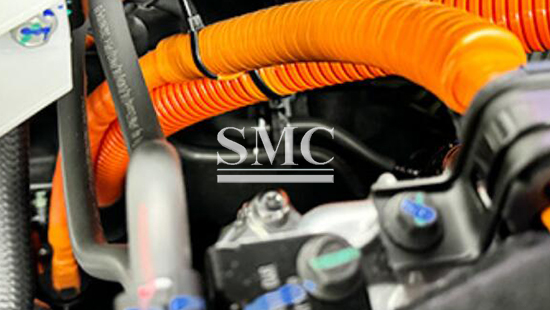

For cables, hoses, and wire harnesses, the self-coiling textile sleeve provides excellent protection. It shields them from physical damage such as abrasion, scratching, and cutting. In industrial environments where these items are often exposed to harsh conditions, the sleeve helps prolong their lifespan. It also serves as an effective organizer. By neatly enclosing the cables and wire harnesses, it creates a tidy and orderly appearance. This is especially useful in areas with a large number of cables, such as computer rooms and the interiors of vehicles.

Moreover, the self-coiling textile sleeve comes in a variety of colors and designs, adding an aesthetic touch to the objects it covers. In some applications where appearance matters, such as in home decor or electronics, it can enhance the overall look.

In summary, the self-coiling textile sleeve is a versatile product that combines protection, organization, and aesthetics, making it a valuable choice for a wide range of applications.

If you want to know more about Self-Coiling Textile Sleeve price please feel free to contact us, we will reply you within 24 hours


Technical Information of Self-Coiling Textile Sleeve:



Technical Parameters of Self-coiling textile sleeve

Specification

inside diameter (mm)

Maximum inside diameter (mm)

Expansion width  (mm)

package

φ06

6

7

28±2mm

100m/roll

φ08

8

9

43±3mm

100m/roll

φ10

10

11

48±3mm

100m/roll

φ13

13

15

63±3mm

100m/roll

φ16

16

17

85±3mm

100m/roll

φ19

19

20

93±3mm

50m/roll

φ25

25

26

115±3mm

50m/roll

φ30

30

32

130±3mm

50m/roll

φ38

38

40

180±10mm

25m/roll

φ50

50

52

245±10mm

25m/roll

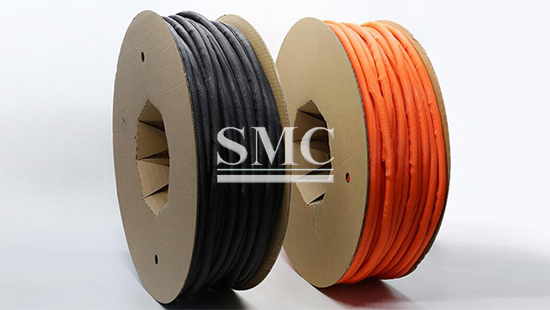

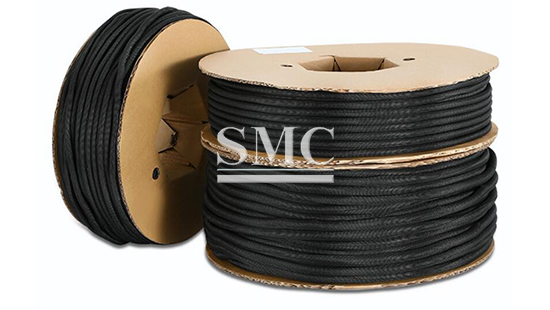

Packaging of Self-Coiling Textile Sleeve:






Other features:



1. The materials are environmentally friendly and recyclable, which can reduce the impact on the environment, meet the requirements of sustainable development, and are more favored nowadays with the increasing awareness of environmental protection.



2. It has excellent ultraviolet resistance. Even when exposed to outdoor sunlight for a long time, it can effectively block the damage of ultraviolet rays to the internal cables and other objects, ensuring the stability of their performance.



3. It is lightweight and convenient for carrying and transportation. Whether during the installation process or when being transferred and used between different sites, it won't cause too much burden.



4. The self-coiling textile sleeve finds its main applications in various fields including the electronic and electrical field, automotive industry field, industrial equipment field, home decoration field and telecommunication field.
