Diameter: 6mm-500mm

Length: 500mm - 12000mm or as customer request

Grade: G61500, SUP10, 50CrV4, 735A51

Product Detail | Technical Information | Packaging | More

Product Detail

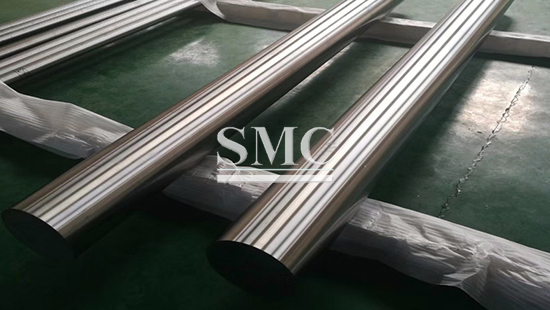

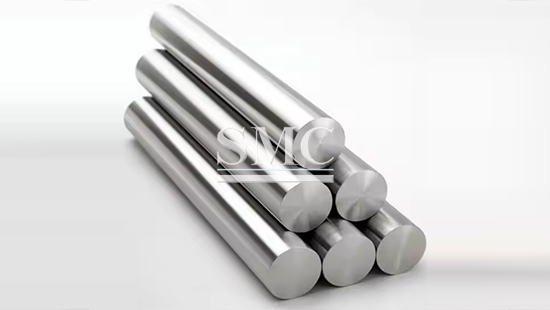

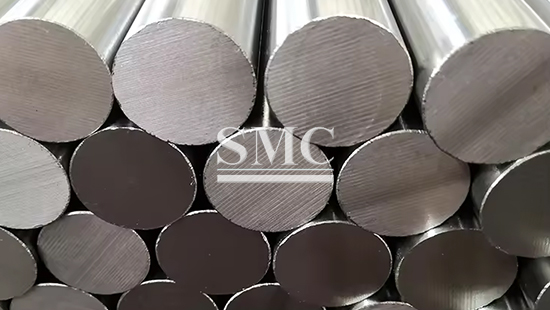

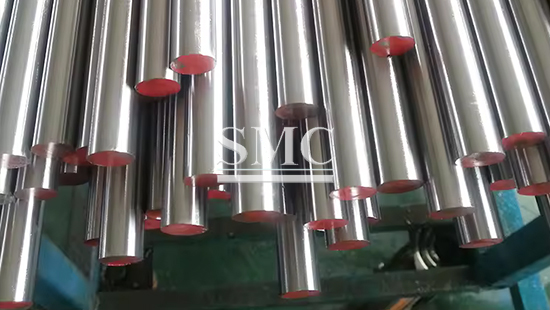

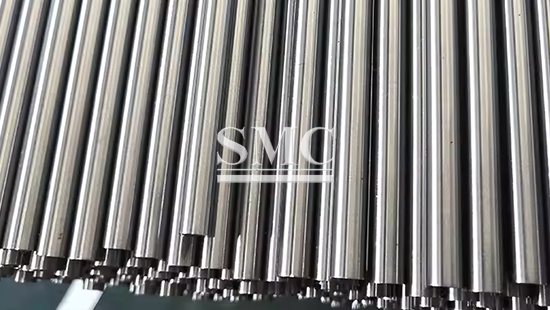

Shanghai Metal Corporation is a professional manufacturer and supplier of High Elastic Alloy Steel Bar with high quality and reasonable price.

The high elastic alloy steel rod is a high-quality alloy steel with excellent strength and toughness. It is mainly composed of elements such as carbon, silicon, manganese, phosphorus, sulfur, chromium, and molybdenum, and has high hardenability and good mechanical and process properties. It can be used to manufacture key components such as suspension systems, engine systems, braking systems, as well as valves, pistons, safety valves, and other underground equipment.

If you want to know more about High Elastic Alloy Steel Bar price please feel free to contact us, we will reply you within 24 hours

Tensile strength: ≥1274Mpa

Yield strength: ≥1127Mpa

Quenching Temperature : 850℃±20℃

Temper: 500℃±50℃

Standard: ASTM A29/A29M-2012

1. Suspension system

2. Engine system

3. Braking system

4. Valve

Technical Information of High Elastic Alloy Steel Bar:

Length Tolerances for Hot-Wrought Rounds,Squares,Hexagons,Octagons,Flats,and Bar Size Sections
	Specified Size of Flats,mm		Tolerances over Specified Length,mm
Specified Size of Rounds Squares,Hexagons and Octagons,mm	Thickness	Width	1500	3000	6000	9000	12000
			to	to	to	to	to
			3000	6000	9000	12000	18000
Hot Shearing
To 25,	to 25,incl	to 75,incl	15	20	35	45	60
Over 25 to 50,incl	Over 25	to 75,incl	15	25	40	50	65
Over 25 to 50,incl	to 25,incl	over 75 to 150,incl	15	25	40	50	65
Over 50 to 125,incl	over 25	over 75 to 150,incl	25	40	45	60	70
Over 125 to 250,incl			50	65	70	75	85

Tolerances in Sectional Dimensions for Round and Square Bars and Round-Cornered Square Bars
Size,mm	Tolerange trom Soecified Size,Over andUnder,mm or %	Out-of-Round,or Out-of-Square Section,mm or%
To 7,incl	0.13 mm	0.20mm
Over 7 to 11.incl	0.15 mm	0.22 mm
Over 11 to 15,incl Over 15 to 19,Indl	0.18 mm 0.20 mm	0.27 mm 0.30 mm
Over 19 to 250,incl	1%	1.5%

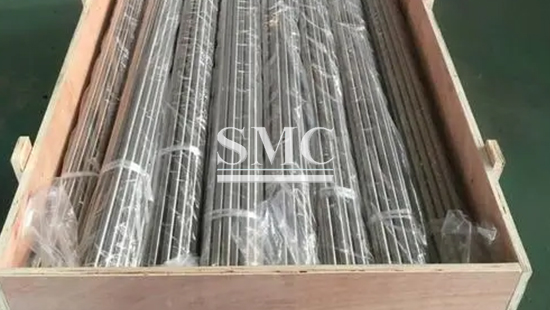

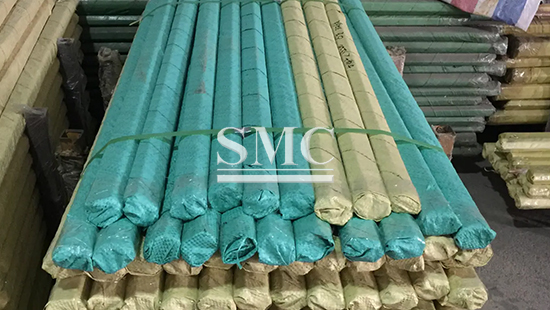

Packaging of High Elastic Alloy Steel Bar:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

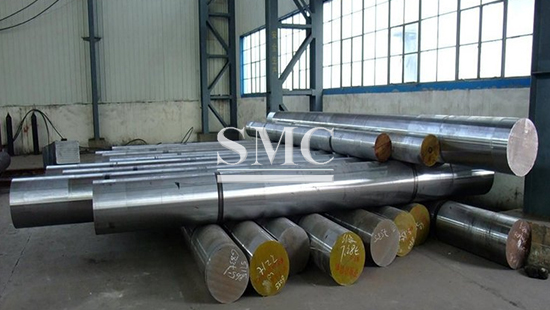

Notes:

1. Cutting: The cutting of high elastic alloy steel bars requires the use of appropriate cutting tools and parameters to ensure surface quality and product accuracy. ‌

2. Welding: When welding high elastic alloy steel bars, it is necessary to control the heat input, select appropriate welding materials and processes, to avoid cracking and porosity.

3. Heat treatment: The heat treatment of high elastic alloy steel bars should select appropriate processes according to specific requirements to obtain the required organization and performance.
